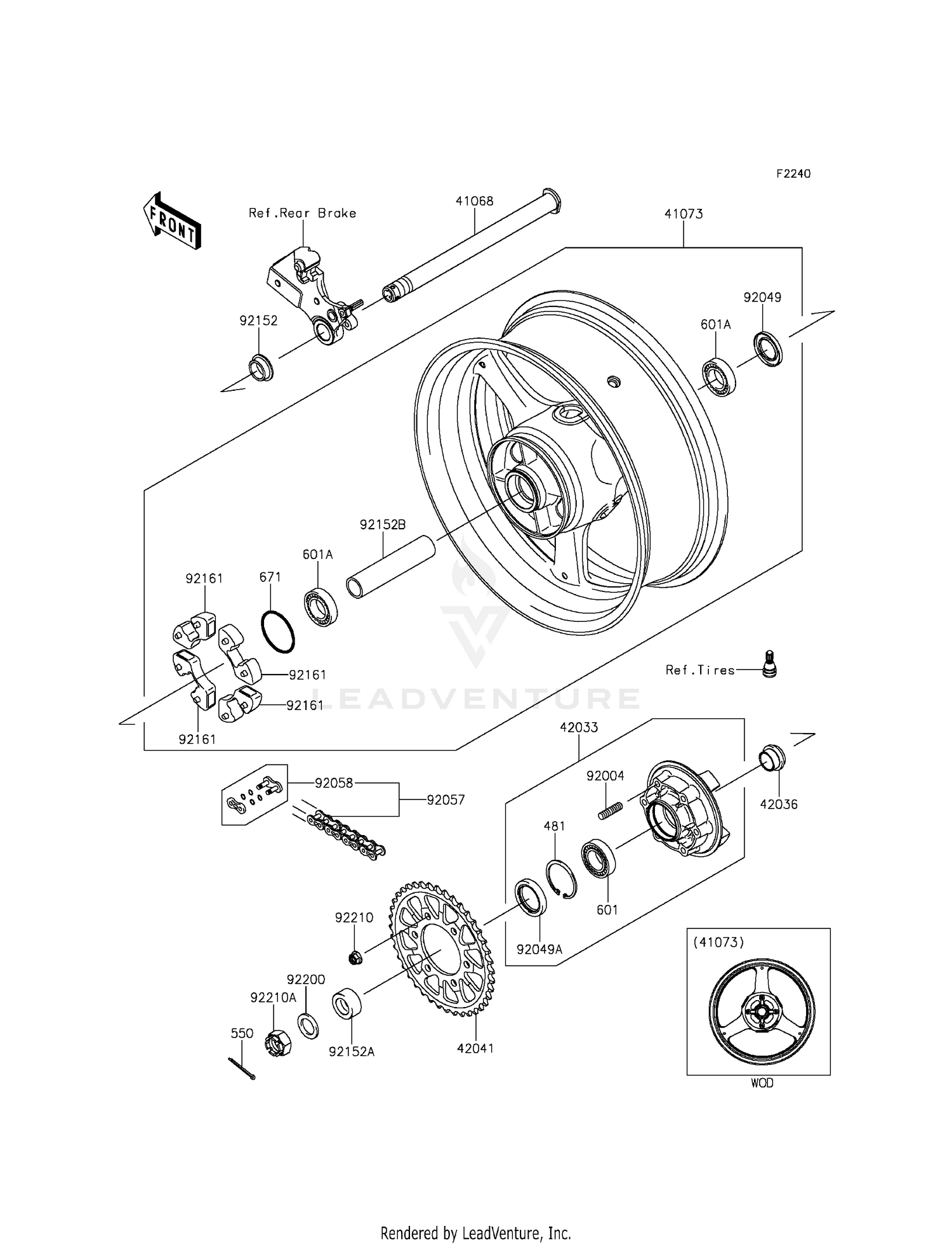

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#481
RING-SNAP,55MM
481J5500
Superseded by 92033-1274
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X40
550AA4040
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6006G
601B6006G
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL
601B6205UU
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR,24X326
41068-0035
Superseded by 41068-0613
|
$87.38 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,G.BLACK
41073-0583-18F
Superseded by 41073-0761-18F
|
$992.25 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-0038
|
$229.33 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=22
42036-1279
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,39T
42041-0096
|
$81.97 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-0028
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,31X52X5
92049-0722
|
$19.21 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,PJN 40 55 8
92049-1376
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK525RMX2
92057-0599
|
$456.58 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN
92058-0032
|
$15.05 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,25X32X13
92152-0289
Superseded by 92152-2719
|
$36.40 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,25X40X18.7
92152-0867
Superseded by 92152-2720
|
$36.83 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR
92152-0868
|
$33.54 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,SHOCK,RR HUB
92161-0342
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,25.5X38X3.2
92200-0278
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-0276
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,CASTLE,24MM
92210-0280
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
