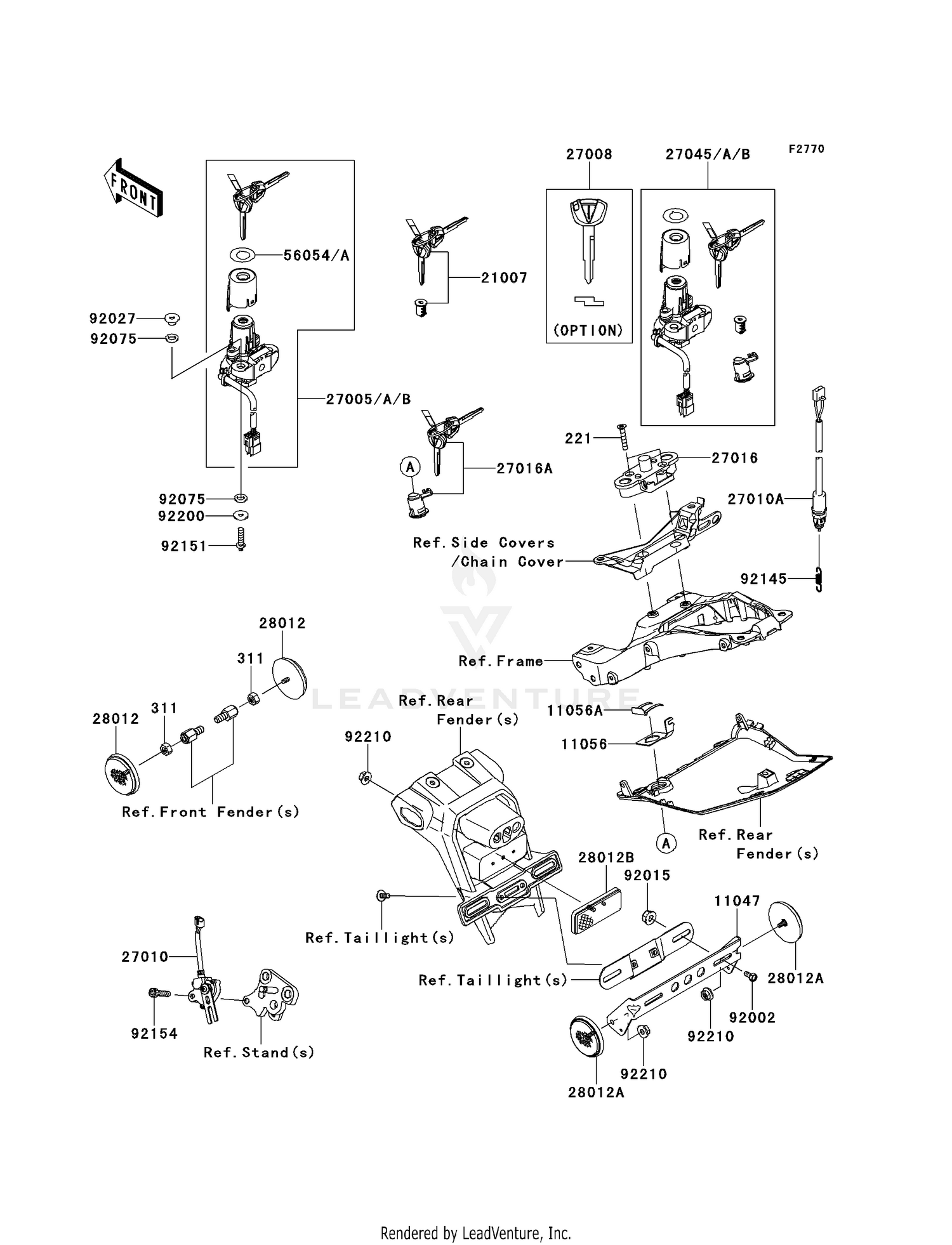

Ignition Switch/locks/reflectors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#221
SCREW-CSK-CROS,6X35
221AB0635
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311AB0500
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#11047
BRACKET,REFLECTOR
11047-1470
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#11056
BRACKET
11056-0237
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#11056A
BRACKET,CLASP
11056-0238
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#21007
ROTOR,LOCK,TANK CAP
21007-5068
|
$84.91 | ||
|
Available to order. Add to View Price |
|||
|
#27005B
SWITCH-ASSY-IGNITION
27005-0568
|
$167.49 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-0069
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,SIDE STAND
27010-1463
|
$112.93 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,REAR BRAKE
27010-1486
|
$33.68 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,SEAT STRIKER
27016-0035
|
$61.73 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,SEAT
27016-5368
|
$86.91 | ||
|
Available to order. Add to View Price |
|||
|
#27045B
SWITCH-ASSY
27045-5492
|
$523.57 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX,FR,SIDE
28012-0001
|
$23.28 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-0002
|
$23.28 | ||
|
Available to order. Add to View Price |
|||
|
#28012B
REFLECTOR-REFLEX
28012-1077
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#56054A
MARK,IGNITION SWITCH
56054-0969
|
$10.52 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-UPSET
92002-1132
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=9.6
92027-1045
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1564
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,REAR BRAKE SWITCH
92145-0091
Superseded by 92145-0724
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,TORX,6X22
92151-1946
Superseded by 92154-1858
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X22
92154-0031
Superseded by 92154-1898
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6X20X1.6
92200-0212
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,5MM
92210-0007
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
