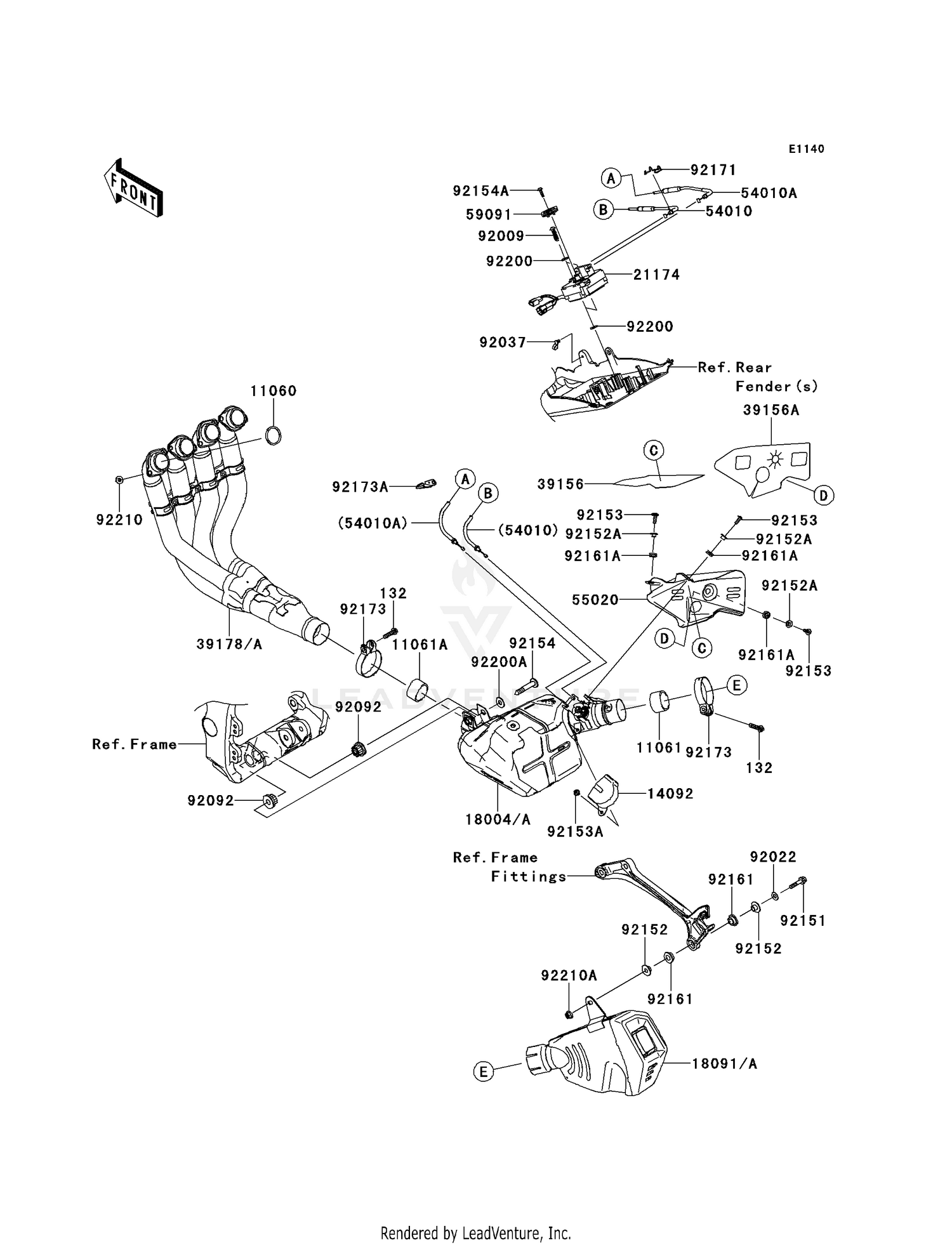

Muffler(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,8X30
132BC0830
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,EXHAUST PIPE
11060-1203
Superseded by 11061-1387
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,50.8X62X30
11061-0447
|
$24.58 | ||
|
Available to order. Add to View Price |
|||
|
#11061A
GASKET,54X62X30
11061-0448
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,PULLEY
14092-0705
|
$32.91 | ||
|
Available to order. Add to View Price |
|||
|
#18004
CHAMBER-PREMUFFLER
18004-0010
|
$1,251.75 | ||
|
Available to order. Add to View Price |
|||
|
#18091A
BODY-COMP-MUFFLER
18091-0848
|
$835.98 | ||
|
Available to order. Add to View Price |
|||
|
#21174
MOTOR-ELECTRIC
21174-0005
|
$323.55 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,GUARD,UPP
39156-0731
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,GUARD,LWR
39156-0732
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#39178A
MANIFOLD-COMP-EXHAUST
39178-0176
|
$1,534.89 | ||
|
Available to order. Add to View Price |
|||
|
#54010
CABLE,OPEN
54010-0577
|
$80.14 | ||
|
Available to order. Add to View Price |
|||
|
#54010A
CABLE,CLOSE
54010-0578
|
$80.14 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD
55020-0562
|
$102.01 | ||
|
Available to order. Add to View Price |
|||
|
#59091
PULLEY
59091-0007
|
$21.50 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X30
92009-1481
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8.5X19X1.2
92022-3730
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,SPEED,L=43
92037-1290
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER,MUFFLER
92092-1087
|
$19.19 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,8X40
92151-1532
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0188
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,6.3X8.3X16
92152-0286
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X16
92153-0817
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,6X10
92153-1527
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,10X61
92154-0125
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,TORX,5X18
92154-0217
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0135
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-0308
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0292
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP,64.5MM
92173-0284
|
$31.25 | ||
|
Available to order. Add to View Price |
|||
|
#92173A
CLAMP
92173-0781
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0078
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,10.5X25X2.0
92200-1377
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,8MM
92210-0076
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,8MM
92210-0121
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
