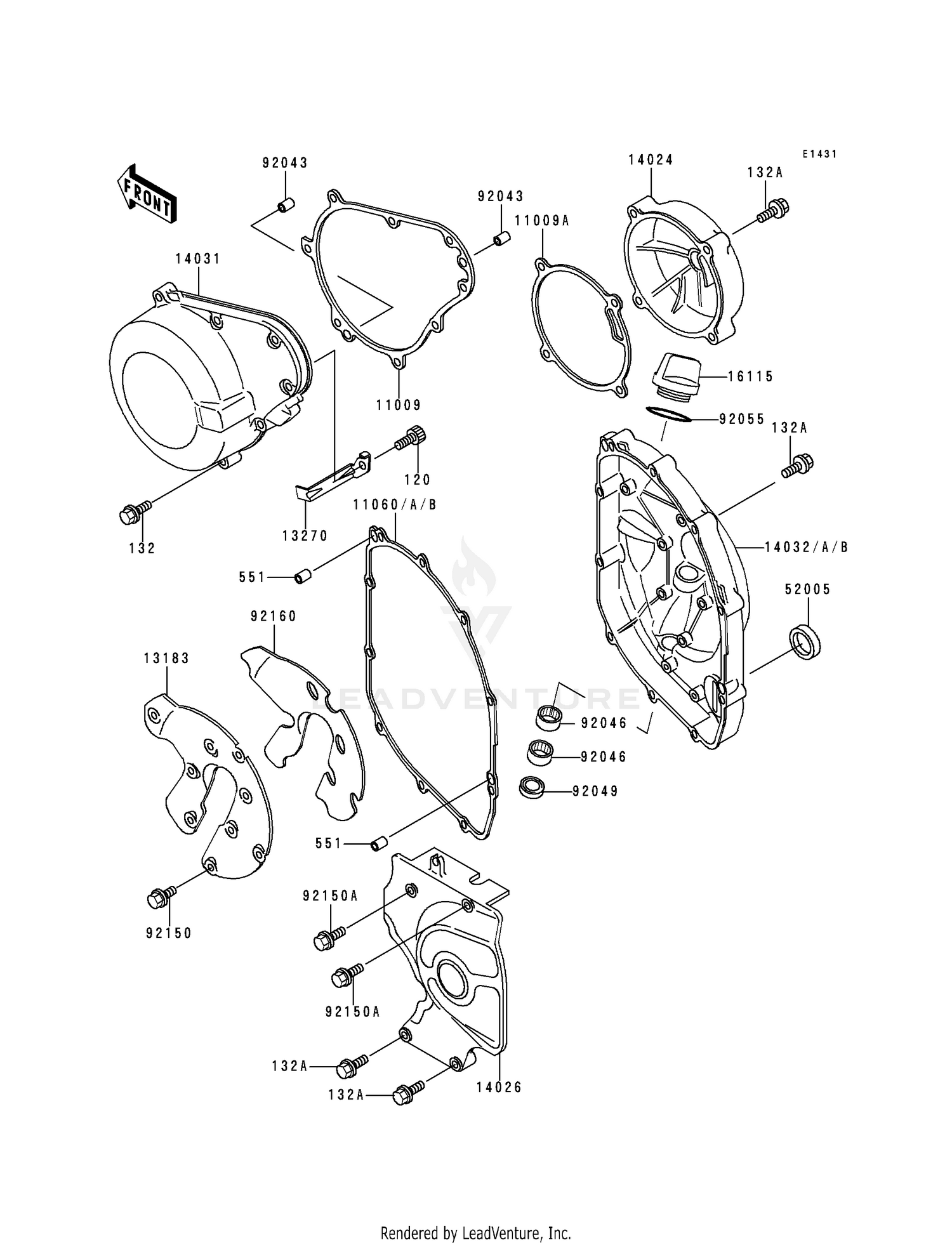

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X10
120P0610
Superseded by 120CA0610
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X30
132E0630
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL
132E0635
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,8X14
551A0814
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,GENERATOR COVE
11009-1868
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,PULSING COVER
11009-1869
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,CLUTCH COVER
11060-1639
|
$28.29 | ||
|
Available to order. Add to View Price |
|||
|
#11060B
GASKET,CLUTCH COVER
11060-1645
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE
13183-1532
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#13270
PLATE,LEAD WIRE
13270-1475
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,PULSING
14024-1881
|
$70.02 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN
14026-1216
|
$156.97 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-1247
|
$142.27 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-1286
|
$281.24 | ||
|
Available to order. Add to View Price |
|||
|
#14032B
COVER-CLUTCH
14032-1388
|
$233.54 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-1009
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1057
Superseded by 52005-0071
|
$24.34 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TB12205.5
92049-1271
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,5X8
92150-1406
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,6X50
92150-1885
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1195
|
$34.85 | ||
|
Available to order. Add to View Price |
|||
