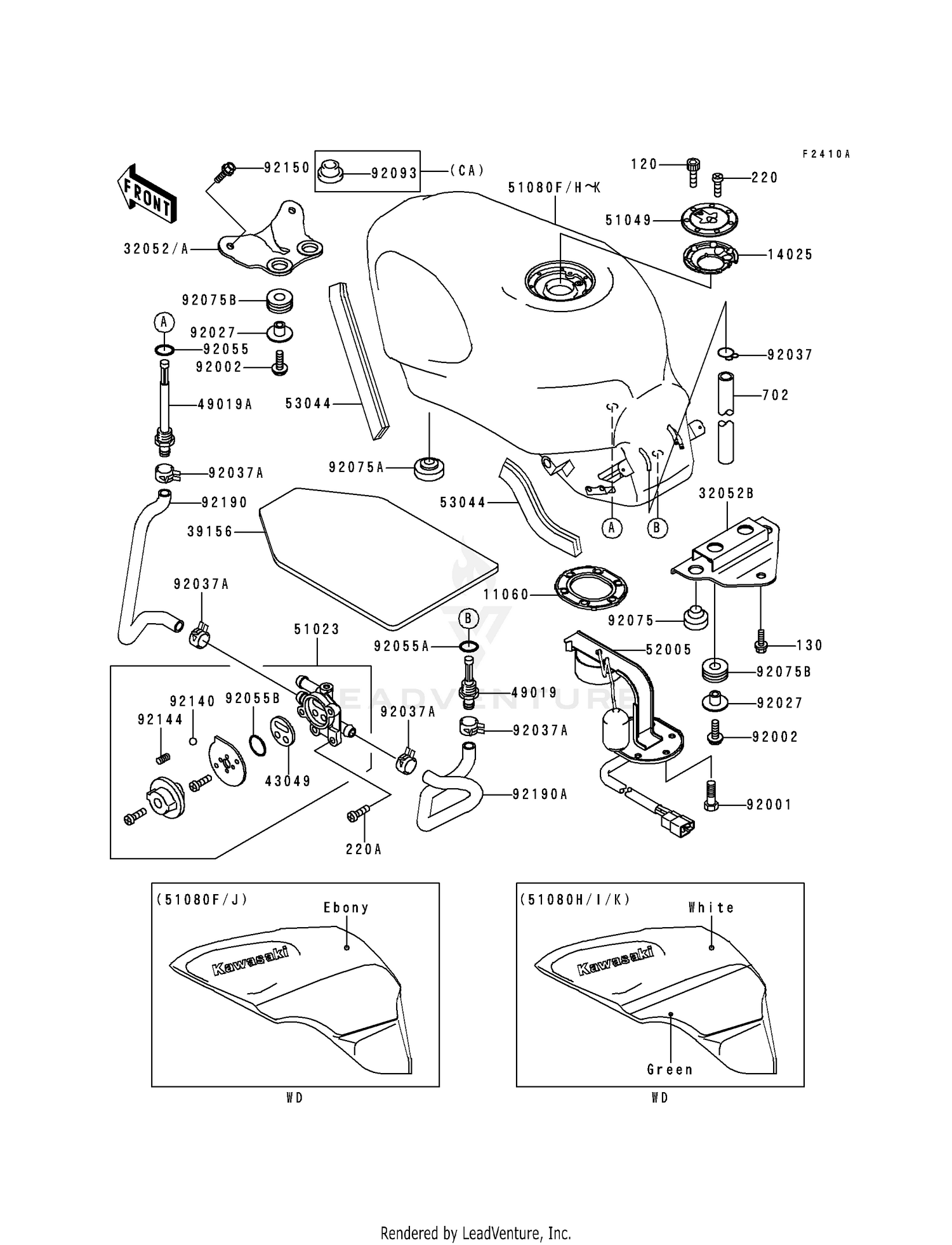

Fuel Tank (zx600-e2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11060
GASKET,FUEL GAUGE
11060-1337
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,TANK CAP
14025-1913
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK,FR,SILVER NO.35
32052-1362-TX
|
|||
|
Unavailable |
|||
|
#32052A
BRACKET-TANK,FR SILVR
32052-1362-VZ
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#32052B
BRACKET-TANK,RR
32052-1363
|
$40.87 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,FUEL TANK
39156-1361
|
$27.96 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,TAP VALVE
43049-1066
Superseded by 43049-1091
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#49019
FILTER-FUEL
49019-1070
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#49019A
FILTER-FUEL,"ON"
49019-1071
|
$18.02 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1192
Superseded by 51023-1320
|
$126.67 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1091
Superseded by 51049-0018
|
$110.64 | ||
|
Available to order. Add to View Price |
|||
|
#51080F
TANK-COMP-FUEL,EBONY
51080-5068-H8
|
$978.60 | ||
|
Available to order. Add to View Price |
|||
|
#51080H
TANK-COMP-FUEL,GREEN/WHITE
51080-5070-CK
|
|||
|
Unavailable |
|||
|
#51080I
TANK-COMP-FUEL,GREEN/
51080-5070-87
Superseded by 51082-5343-87
|
$729.72 | ||
|
Available to order. Add to View Price |
|||
|
#51080J
TANK-COMP-FUEL,EBONY
51080-5073-H8
Superseded by 51082-5375-H8
|
$511.15 | ||
|
Available to order. Add to View Price |
|||
|
#51080K
TANK-COMP-FUEL,GREEN/
51080-5074-87
Superseded by 51082-5376-87
|
$729.72 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,FUEL
52005-1105
|
$175.38 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM
53044-1137
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FUEL GAUGE
92001-1069
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X20
130J0820
Superseded by 130BB0820
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X8
220C0508
Superseded by 220AB0508
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROSS
220C0608
Superseded by 220AB0608
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,7X10X800
702A07600
Superseded by 702A07800
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
92002-1237
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HOSE CLIP
92037-1181
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,ID=9.5
92055-1386
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,11.5X1.5
92055-1387
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,TAP LEVER
92055-1419
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-015
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER,STD STM
92075-157
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92140
"BALL,STAINLESS,5/32",,2017-03-16 1
92140-1051
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,FUEL TAP KNOB
92144-1212
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X14
92150-1340
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,TAP-FILTER
92190-1332
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#92190A
TUBE,FUEL,RES
92190-1333
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
