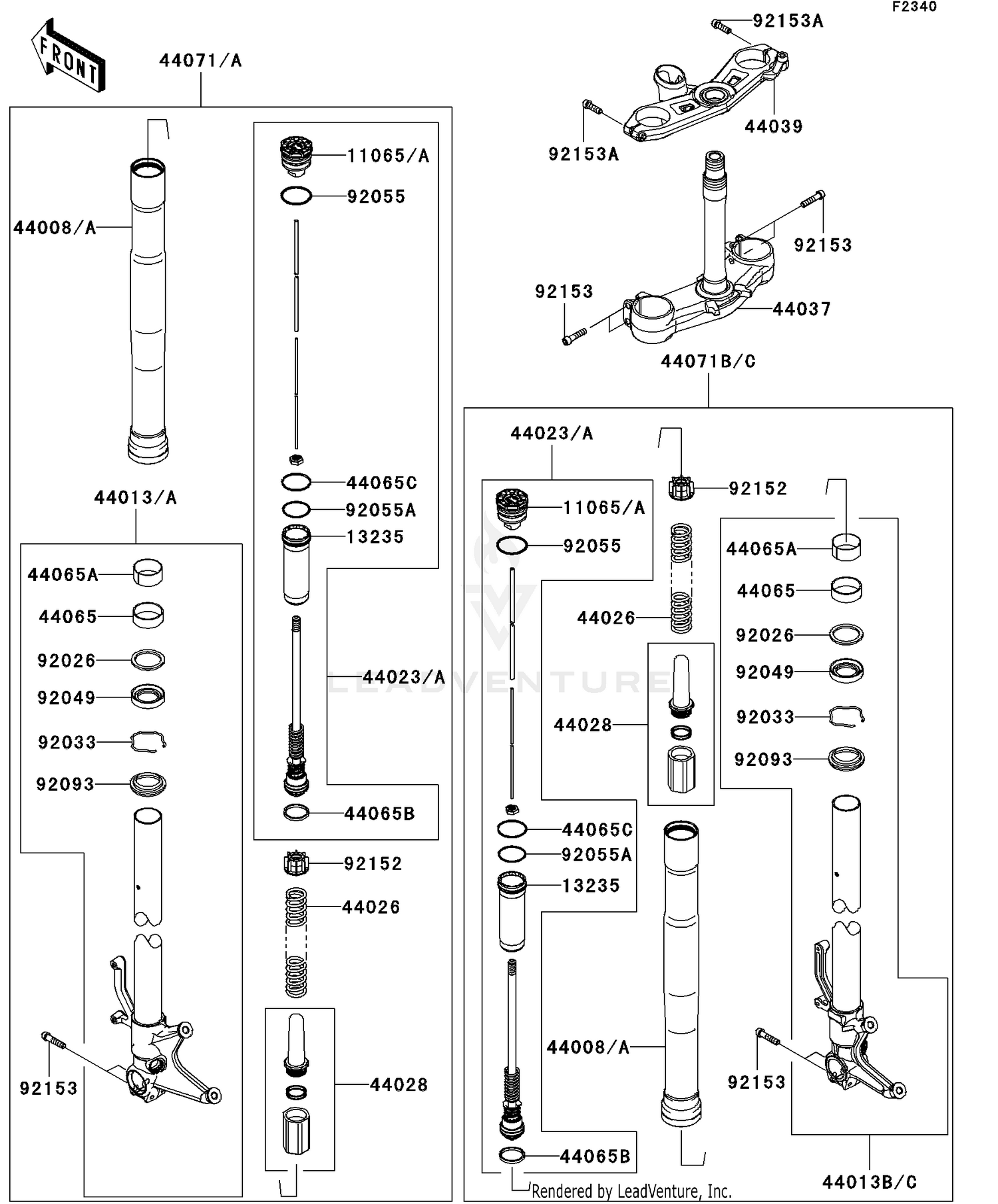

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11065
CAP,FORK BOLT COMP,GR
11065-0289-11G
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#13235
GUIDE-COMP
13235-0005
|
$88.10 | ||
|
Available to order. Add to View Price |
|||
|
#44008
PIPE-FORK OUTER,GRAY
44008-0050-11G
|
$396.90 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER,LH,GR
44013-0142-11G
Superseded by 44013-0253-11G
|
$600.20 | ||
|
Available to order. Add to View Price |
|||
|
#44013B
PIPE-FORK INNER,RH,GR
44013-0143-11G
Superseded by 44013-0254-11G
|
$600.20 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK,GRA
44023-0079-11G
|
$604.07 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK,K=9.25N/MM
44026-0143
|
$68.94 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-0004
|
$40.96 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-0097
|
$696.91 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-0085
|
$304.58 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,GUIDE
44065-0030
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK,SLIDE
44065-0031
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#44065B
BUSHING-FRONT FORK
44065-0032
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#44065C
BUSHING-FRONT FORK
44065-0033
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#44071
DAMPER-ASSY,FORK,LH,G
44071-0633-11G
|
$1,337.03 | ||
|
Available to order. Add to View Price |
|||
|
#44071B
DAMPER-ASSY,FORK,RH,G
44071-0634-11G
|
$1,337.03 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK OUTER
92026-1276
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1222
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-0125
|
$25.46 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0142
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-0174
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,DUST
92093-0035
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0757
|
$15.80 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X35
92153-0854
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT
92153-0855
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
