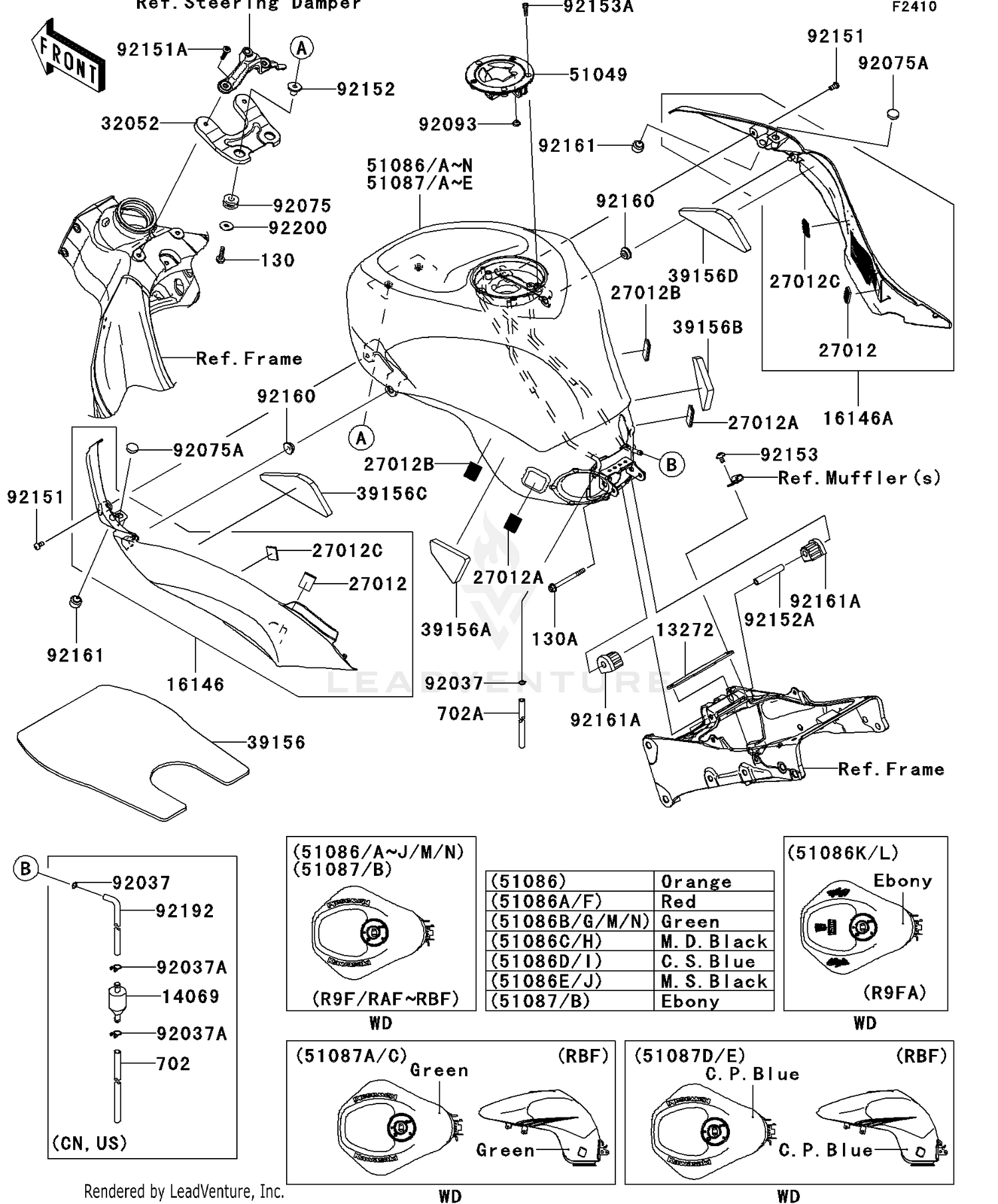

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13272
PLATE,FUEL TANK,RR
13272-0505
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#14069
BREATHER,FUEL TANK
14069-1004
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#16146
COVER-ASSY,KNEE GRIP,LH
16146-0112
|
$55.74 | ||
|
Available to order. Add to View Price |
|||
|
#16146A
COVER-ASSY,KNEE GRIP,RH
16146-0113
|
$55.74 | ||
|
Available to order. Add to View Price |
|||
|
#27012
HOOK
27012-0091
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#27012A
HOOK
27012-0115
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#27012B
HOOK
27012-0170
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#27012C
HOOK
27012-0171
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK,FR
32052-0131
|
$45.11 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,FUEL TANK
39156-0469
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,FUEL TANK,LH
39156-0507
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,FUEL TANK,RH
39156-0508
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#39156C
PAD,KNEE GRIP,LH
39156-0511
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#39156D
PAD,KNEE GRIP,RH
39156-0512
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-0030
Superseded by 51049-0741
|
$123.02 | ||
|
Available to order. Add to View Price |
|||
|
#51086K
TANK-COMP-FUEL,EBONY
51086-5196-H8
|
$924.34 | ||
|
Available to order. Add to View Price |
|||
|
#51086L
TANK-COMP-FUEL,EBONY
51086-5197-H8
|
$924.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Unavailable |
|||
|
#92037A
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1983
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X12
92151-1219
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,SOCKET,6X30
92151-1605
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.3X10X14.5
92152-0091
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,6.8X10X60
92152-1182
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X10
92153-0410
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,5X16
92153-1616
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1613
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0738
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,FUEL TANK,RR
92161-1330
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,BREATHER
92192-0798
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X22X1.6
92200-1087
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X22
130BA0622
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X70
130BB0670
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,6X9X660
702A06660
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#702A
TUBE-RUBBER,6X850
702A06850
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
