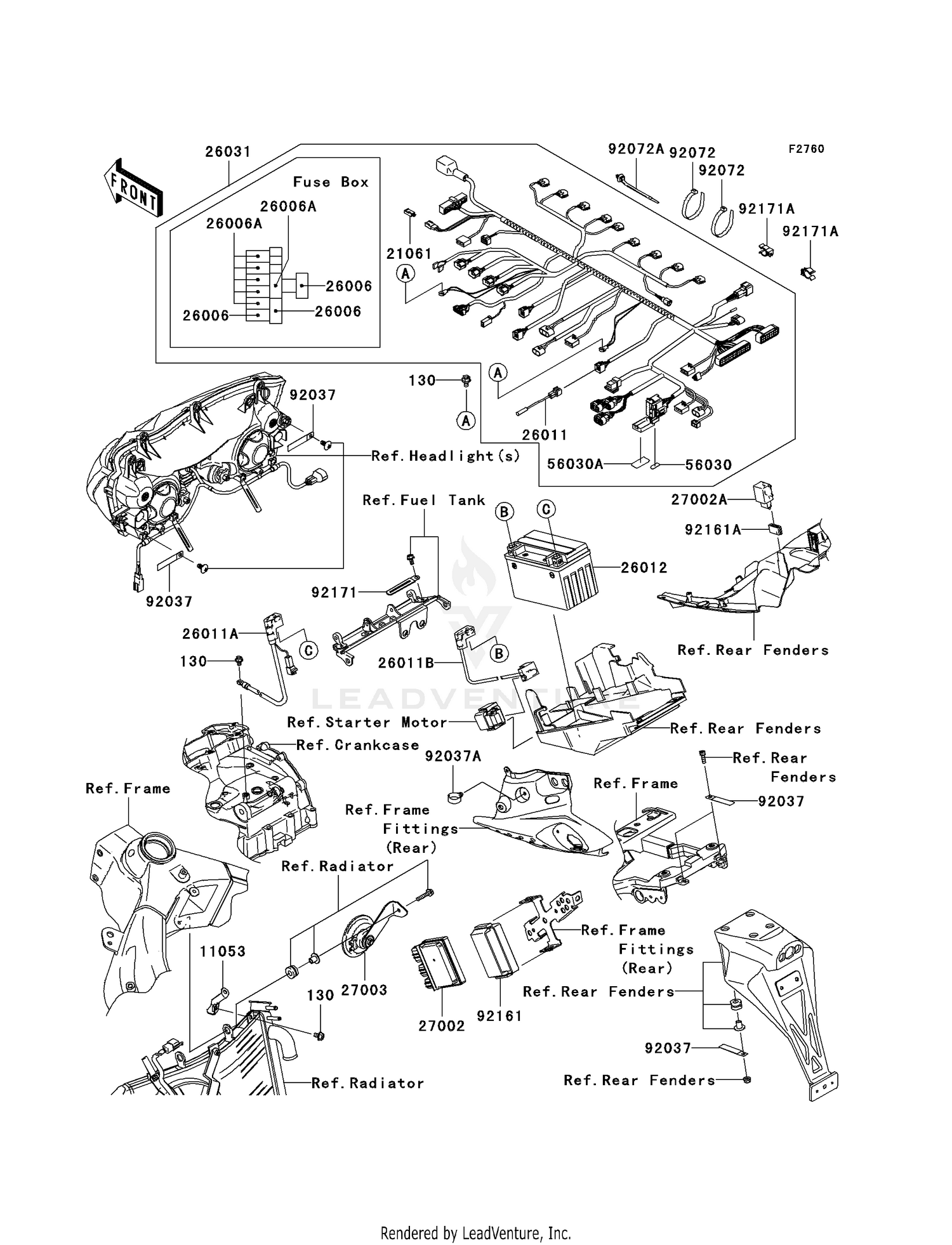

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X10
130V0610
Superseded by 130BA0610
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#11053
BRACKET,RADIATOR
11053-1228
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#21061
RECTIFIER
21061-0001
|
$28.11 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,MINI BLADE,10A,RED
26006-1078
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD
26011-0037
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE-LEAD,BATTERY(-)
26011-0056
|
$40.02 | ||
|
Available to order. Add to View Price |
|||
|
#26011B
WIRE-LEAD,BATTERY(+)
26011-0070
|
$40.02 | ||
|
Available to order. Add to View Price |
|||
|
#26012
BATTERY,YTX9-BS,12V 8AH
26012-1326
Superseded by 26012-1524
|
$136.54 | ||
|
Unavailable |
|||
|
#26031
HARNESS,MAIN
26031-0248
Superseded by 26031-0377
|
$789.80 | ||
|
Available to order. Add to View Price |
|||
|
#27002
RELAY-ASSY
27002-0001
Superseded by 27002-0050
|
$137.12 | ||
|
Available to order. Add to View Price |
|||
|
#27002A
RELAY-ASSY,SIGNAL LAMP
27002-0006
|
$52.68 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN
27003-0030
|
$89.13 | ||
|
Available to order. Add to View Price |
|||
|
#56030
LABEL,FUSE BOX
56030-0091
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#56030A
LABEL,FUSE BOX
56030-0092
|
$1.54 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HOSE
92037-1827
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=202
92072-1195
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,OS170-FT7(BLACK)
92072-1414
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,RELAY BOX
92161-0203
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,SIGNAL RELAY
92161-0283
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0462
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP,HARNESS
92171-0465
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
