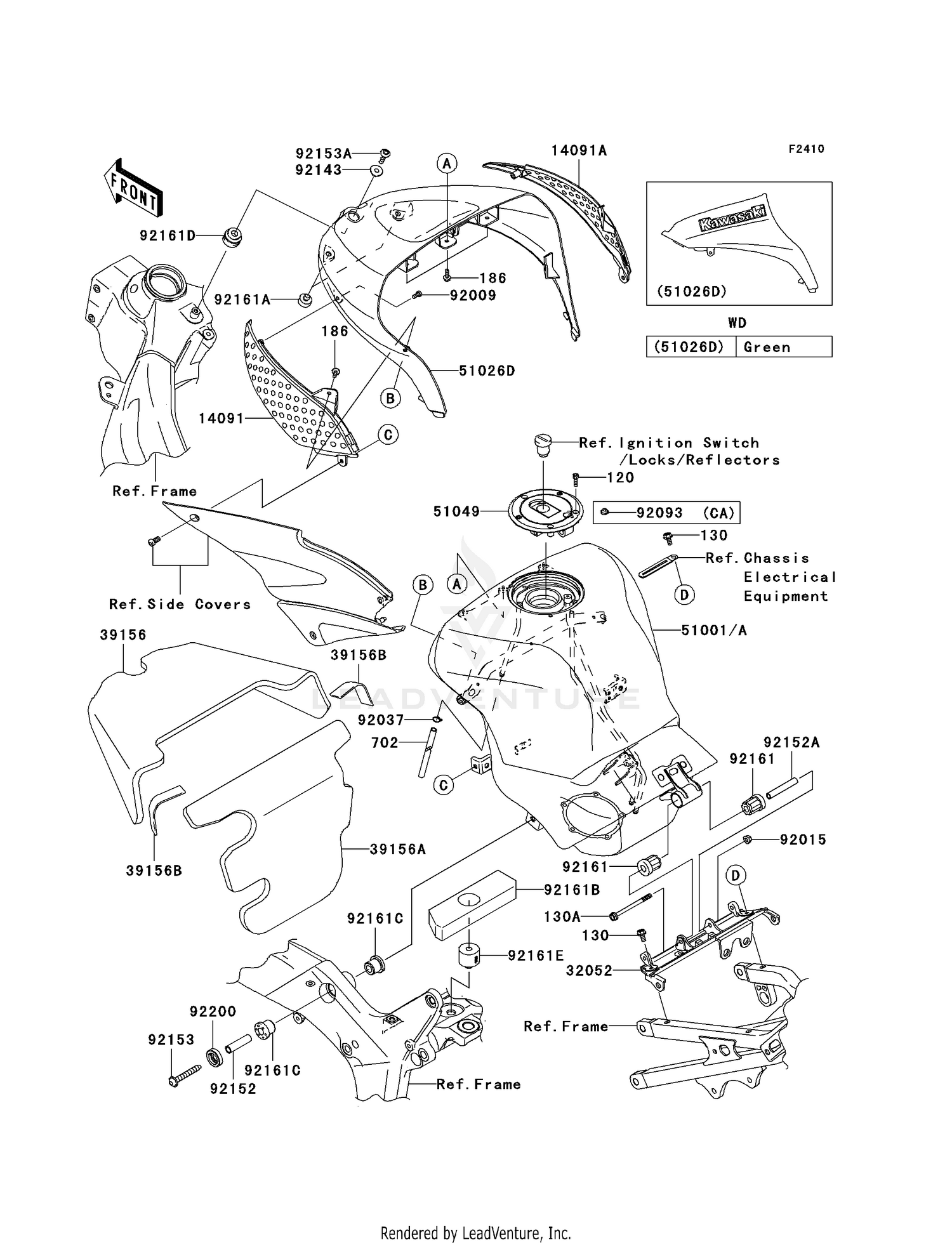

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET
120S0516
Superseded by 120CB0516
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X14
130H0614
Superseded by 130BA0614
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED
130H0680
Superseded by 130BA0680
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#186
BOLT-UPSET-WP,5X14
186H0514
Superseded by 186BA0514
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,KNEE GRIP,LH
14091-0324
|
$23.21 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,KNEE GRIP,RH
14091-0325
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK
32052-0033
|
$61.92 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,FUEL TANK COVER
39156-0079
|
$33.89 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,FUEL TANK
39156-0080
|
$24.78 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,FUEL TANK COVER
39156-0096
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#51001
TANK-COMP-FUEL,L.GREE
51001-0083-777
|
$881.99 | ||
|
Available to order. Add to View Price |
|||
|
#51001A
TANK-COMP-FUEL,L.GREE
51001-0085-777
|
$780.55 | ||
|
Available to order. Add to View Price |
|||
|
#51026D
COVER TANK,L.GREEN
51026-5031-777
|
$524.83 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-0010
Superseded by 51049-0021
|
$113.41 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,5X12
92009-1319
Superseded by 92009-1105
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,6MM
92015-1675
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,L=9.6
92143-1016
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,8.8X12X46.5
92152-0271
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,6.8X10X60
92152-1182
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X65
92153-0879
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,6X23
92153-1267
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,FUEL TANK,RR
92161-0207
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,8X20X8
92161-0223
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER
92161-0262
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#92161C
DAMPER,FUEL TANK,SIDE
92161-0274
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92161D
DAMPER
92161-0287
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#92161E
DAMPER
92161-1116
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,FUEL TANK,SIDE
92200-0197
|
$15.71 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,6X850
702A06850
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
