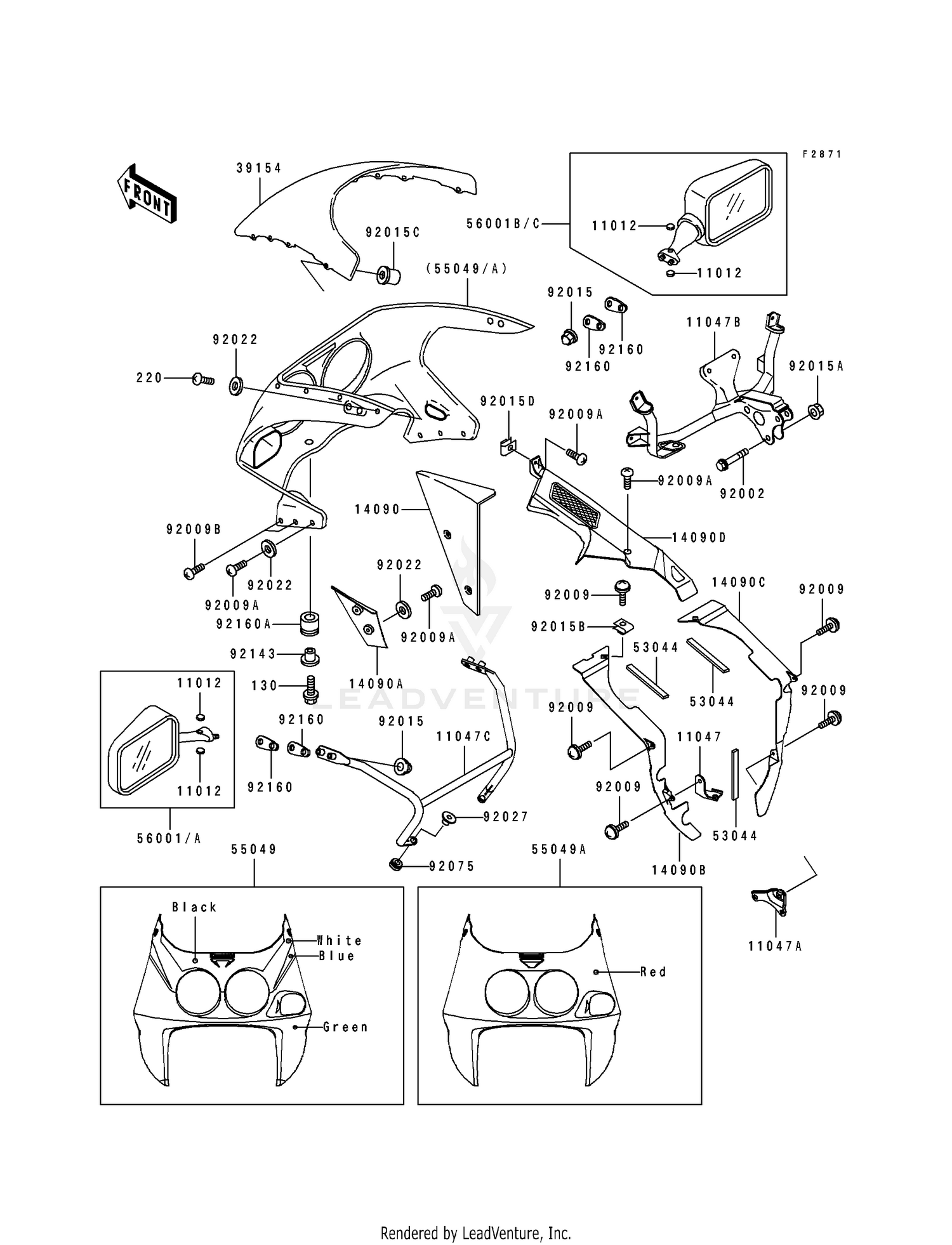

Cowling (zx750-l1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,MIRROR
11012-1818
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#11047
BRACKET,INNER COWLING
11047-1856
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#11047A
BRACKET,INNER COWLING
11047-1857
|
$9.57 | ||
|
Available to order. Add to View Price |
|||
|
#11047B
BRACKET,UPP COWLING
11047-1860
|
$262.26 | ||
|
Available to order. Add to View Price |
|||
|
#11047C
BRACKET,MIRROR
11047-1861
|
$134.01 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,RADIATOR,RH
14090-1236
|
$24.87 | ||
|
Available to order. Add to View Price |
|||
|
#14090A
COVER,RADIATOR,LH
14090-1237
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14090B
COVER,INNER COWLING,L
14090-1265
|
$53.10 | ||
|
Available to order. Add to View Price |
|||
|
#14090C
COVER,INNER COWLING,R
14090-1266
|
$56.69 | ||
|
Available to order. Add to View Price |
|||
|
#14090D
COVER,INNER COWLING,F
14090-1267
|
$72.27 | ||
|
Available to order. Add to View Price |
|||
|
#39154
WINDSHIELD
39154-1120
|
$210.22 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,L=150
53044-1248
|
$7.46 | ||
|
Available to order. Add to View Price |
|||
|
#55049
COWLING.,UPP,GREEN/WH
55049-5144-CK
|
$1,016.69 | ||
|
Available to order. Add to View Price |
|||
|
#55049A
COWLING.,UPP,C.W.RED
55049-5147-H3
|
$1,034.59 | ||
|
Available to order. Add to View Price |
|||
|
#56001
MIRROR-ASSY,LH,EBONY
56001-1376-6C
Superseded by 56001-1379-6C
|
$55.64 | ||
|
Available to order. Add to View Price |
|||
|
#56001A
MIRROR-ASSY,LH,P.WHIT
56001-1376-6F
|
$90.51 | ||
|
Available to order. Add to View Price |
|||
|
#56001B
MIRROR-ASSY,RH,EBONY
56001-1377-6C
Superseded by 56001-1380-6C
|
$55.64 | ||
|
Available to order. Add to View Price |
|||
|
#56001C
MIRROR-ASSY,RH,P.WHIT
56001-1377-6F
|
$90.51 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,8X35
92002-1198
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
92009-1555
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X16,BLACK
92009-1654
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW
92009-1656
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CAP,6MM
92015-1170
Superseded by 92210-0003
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CAP,8MM,BLACK
92015-1174
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,6MM
92015-1602
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92015D
NUT,5MM
92015-1798
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=14.1
92027-1920
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-277
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1026
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,MIRROR
92160-1089
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1141
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X16
130J0616
Superseded by 130BB0616
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X16
220C0516
Superseded by 220AB0516
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
