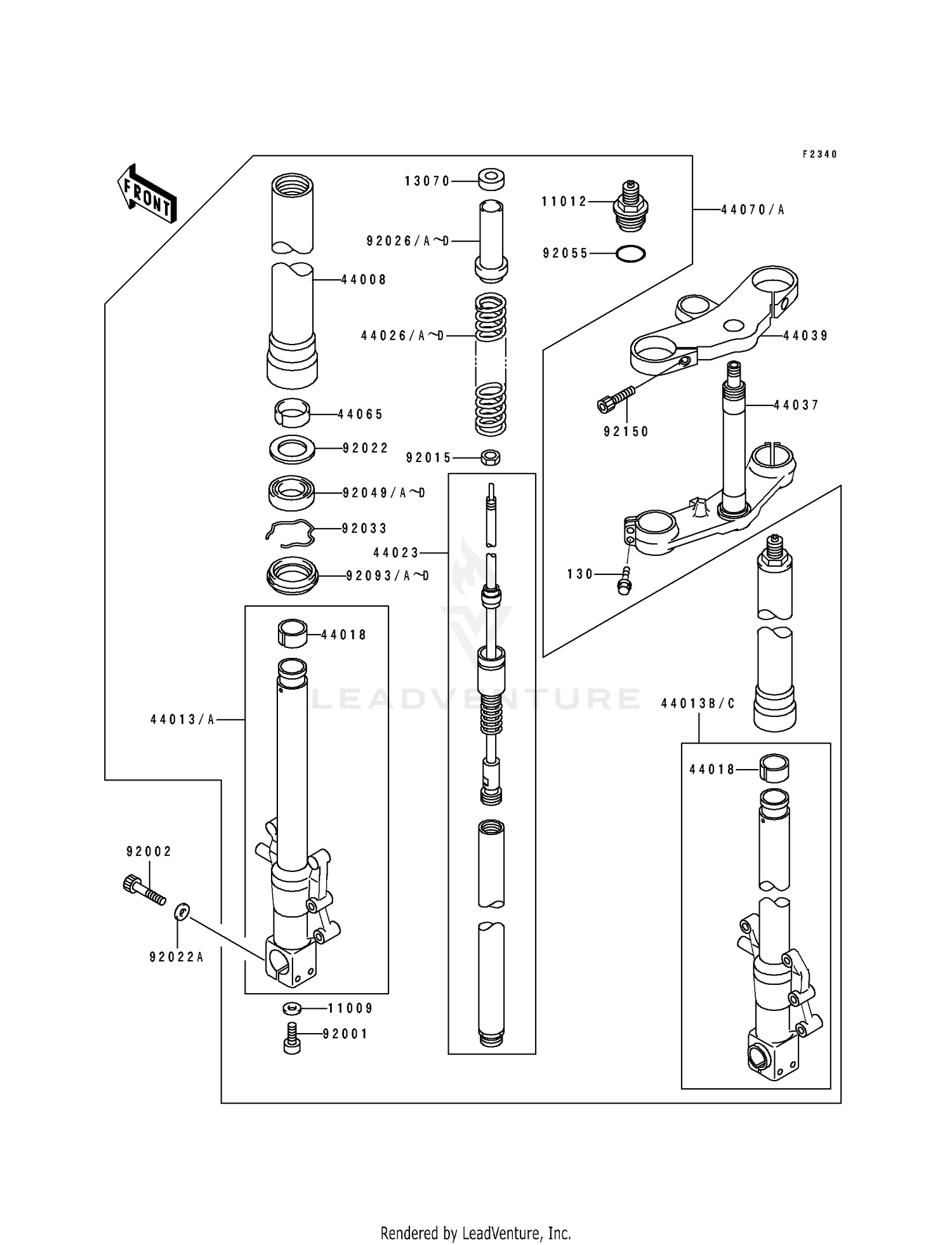

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,FORK TOP
11012-1748
|
$113.30 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,FORK
13070-1236
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#44008
PIPE-FORK OUTER,BROWN
44008-1017-JS
|
$827.32 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER,LH,SI
44013-1391-KF
|
$599.02 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,LH,BL
44013-1391-10
|
$627.73 | ||
|
Available to order. Add to View Price |
|||
|
#44013B
PIPE-FORK INNER,RH,SI
44013-1392-KF
|
$599.02 | ||
|
Available to order. Add to View Price |
|||
|
#44013C
PIPE-FORK INNER,RH,BL
44013-1392-10
|
$598.95 | ||
|
Available to order. Add to View Price |
|||
|
#44018
PISTON-FORK
44018-1054
|
$45.21 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-COMP-FORK
44023-1091
|
$371.73 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1541
|
$87.45 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK
44026-1541
|
$87.45 | ||
|
Unavailable |
|||
|
#44026C
SPRING-FRONT FORK
44026-1550
|
$79.08 | ||
|
Available to order. Add to View Price |
|||
|
#44026D
SPRING-FRONT FORK
44026-1550
|
$79.08 | ||
|
Unavailable |
|||
|
#44037
HOLDER-FORK UNDER
44037-1295
|
$617.04 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1234
|
$257.42 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,FO
44065-1096
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#44070
DAMPER-ASSY
44070-5166-KF
|
$1,600.95 | ||
|
Available to order. Add to View Price |
|||
|
#44070A
DAMPER-ASSY
44070-5166-10
|
$2,043.95 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FORK CYLINDER
92001-1309
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-SOCKET,8X45
92002-1847
Superseded by 120CA0845
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1795
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER TUBE
92022-1298
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-1598
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK
92026-1410
|
$20.70 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,FORK
92026-1410
|
$20.70 | ||
|
Unavailable |
|||
|
#92026C
SPACER,FORK
92026-1442
|
$20.70 | ||
|
Available to order. Add to View Price |
|||
|
#92026D
SPACER,FORK
92026-1442
|
$20.70 | ||
|
Unavailable |
|||
|
#92033
RING-SNAP
92033-1036
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER TUBE
92049-1347
Superseded by 92049-1356
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,FORK OUTER TUBE
92049-1347
Superseded by 92049-1356
|
$18.65 | ||
|
Unavailable |
|||
|
#92049C
SEAL-OIL,FORK OUTER TUBE
92049-1356
|
$18.65 | ||
|
Unavailable |
|||
|
#92049D
SEAL-OIL,FORK OUTER TUBE
92049-1356
|
$18.65 | ||
|
Unavailable |
|||
|
#92055
RING-O,ROD
92055-1115
Superseded by 92055-1369
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1306
Superseded by 92093-1359
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,FORK OUTER TUBE
92093-1306
Superseded by 92093-1359
|
$20.34 | ||
|
Unavailable |
|||
|
#92093C
SEAL,FORK OUTER TUBE
92093-1359
|
$20.34 | ||
|
Unavailable |
|||
|
#92093D
SEAL,FORK OUTER TUBE
92093-1359
|
$20.34 | ||
|
Unavailable |
|||
|
#92150
BOLT-SOCKET,8X25
92150-1172
Superseded by 120CA0825
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X40
130G0840
Superseded by 130CA0840
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
