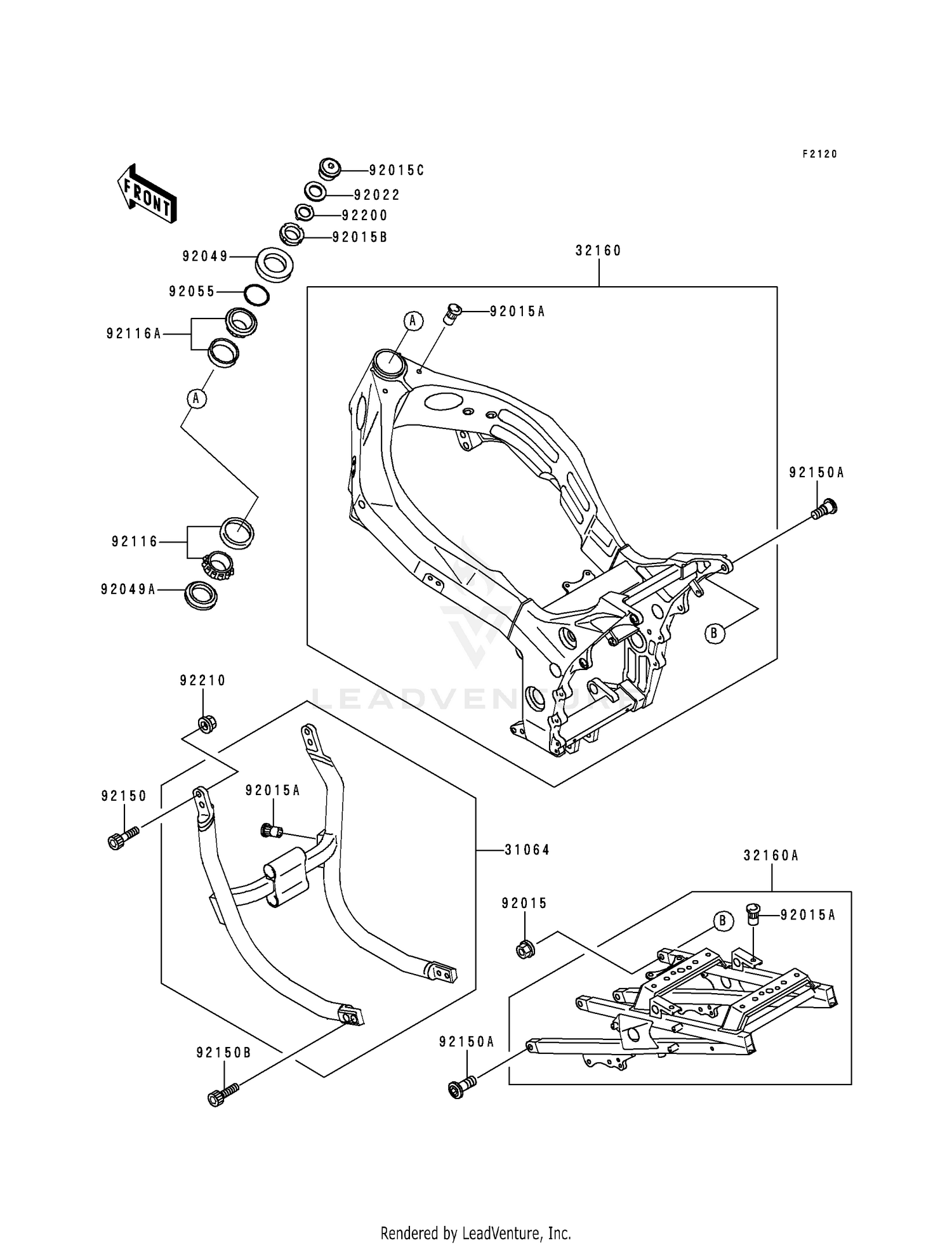

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#31064
PIPE-COMP,DOWNTUBE
31064-1166
|
$302.39 | ||
|
Available to order. Add to View Price |
|||
|
#32160
FRAME-COMP,FR,G.GRAY
32160-1330-GD
Superseded by 32160-1359-GD
|
$1,498.75 | ||
|
Available to order. Add to View Price |
|||
|
#32160A
FRAME-COMP,AL,RR,G.GR
32160-1439-GD
|
$820.17 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1415
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,POP,6MM,L=16.5
92015-1792
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,STEERING STEM,35MM
92015-1848
|
$42.38 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,STEERING,25MM
92015-1891
|
$66.47 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,25X36X2.3
92022-250
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,XMH 43 75 6.4J
92049-1382
|
$23.54 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,XMHE 43 55 4J
92049-1383
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,34.5X2.0
92055-1452
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92116
BEARING-ROLLER,32907J
92116-1072
|
$69.17 | ||
|
Available to order. Add to View Price |
|||
|
#92116A
BEARING-ROLLER,32907J
92116-1074
|
$69.17 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,10X37
92150-1261
|
$10.74 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,10X35
92150-1295
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,SOCKET,10X30
92150-1690
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,CLAW,25.5X40X2.3
92200-1083
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-1080
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
