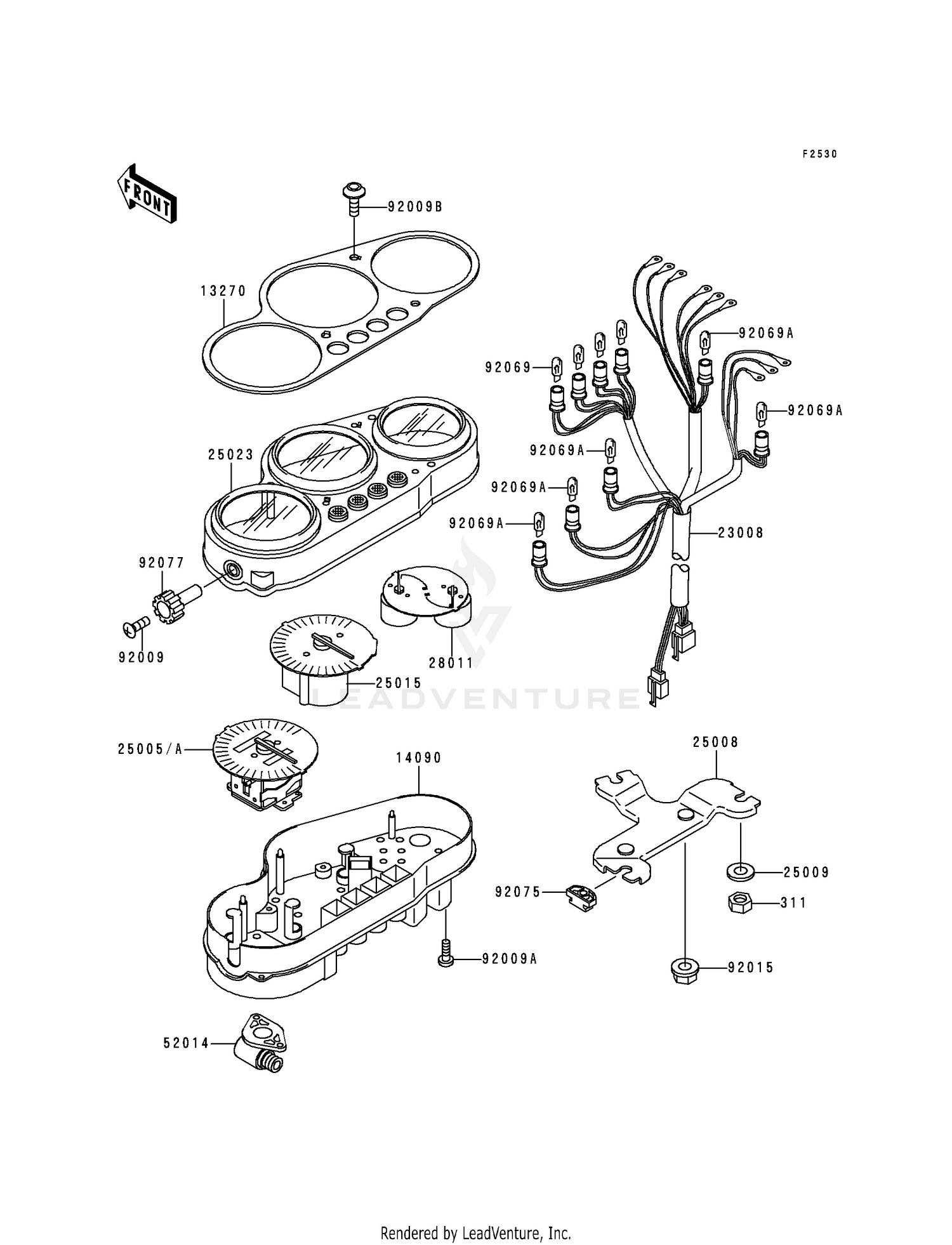

Meter(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#311
NUT-HEX,5MM
311C0500
Superseded by 311AB0500
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#13270
PLATE,METER PANNEL
13270-1156
|
$105.11 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,METER HOUSING
14090-1402
|
$118.24 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,METER
23008-1528
|
$121.26 | ||
|
Available to order. Add to View Price |
|||
|
#25005
SPEEDOMETER,KPH
25005-1552
|
$375.58 | ||
|
Available to order. Add to View Price |
|||
|
#25005A
SPEEDOMETER,MPH
25005-1563
|
$393.54 | ||
|
Available to order. Add to View Price |
|||
|
#25008
BRACKET-METER
25008-1202
|
$63.31 | ||
|
Available to order. Add to View Price |
|||
|
#25009
WASHER,5.2X16X1.2
25009-004
Superseded by 92200-2276
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER,X1000R/MIN
25015-1326
|
$439.46 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER-METER CASE,UPP
25023-1212
|
$141.53 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,FUEL&TEMP
28011-1143
|
$95.19 | ||
|
Available to order. Add to View Price |
|||
|
#52014
ELBOW
52014-1081
Superseded by 52014-0002
|
$75.79 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,2X6,BLACK
92009-1172
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,4X14
92009-1593
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,TAPPING,5X16
92009-1720
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 1.7W,T10
92069-1059
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,METER BRACKET
92075-1581
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,METER
92077-1073
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
