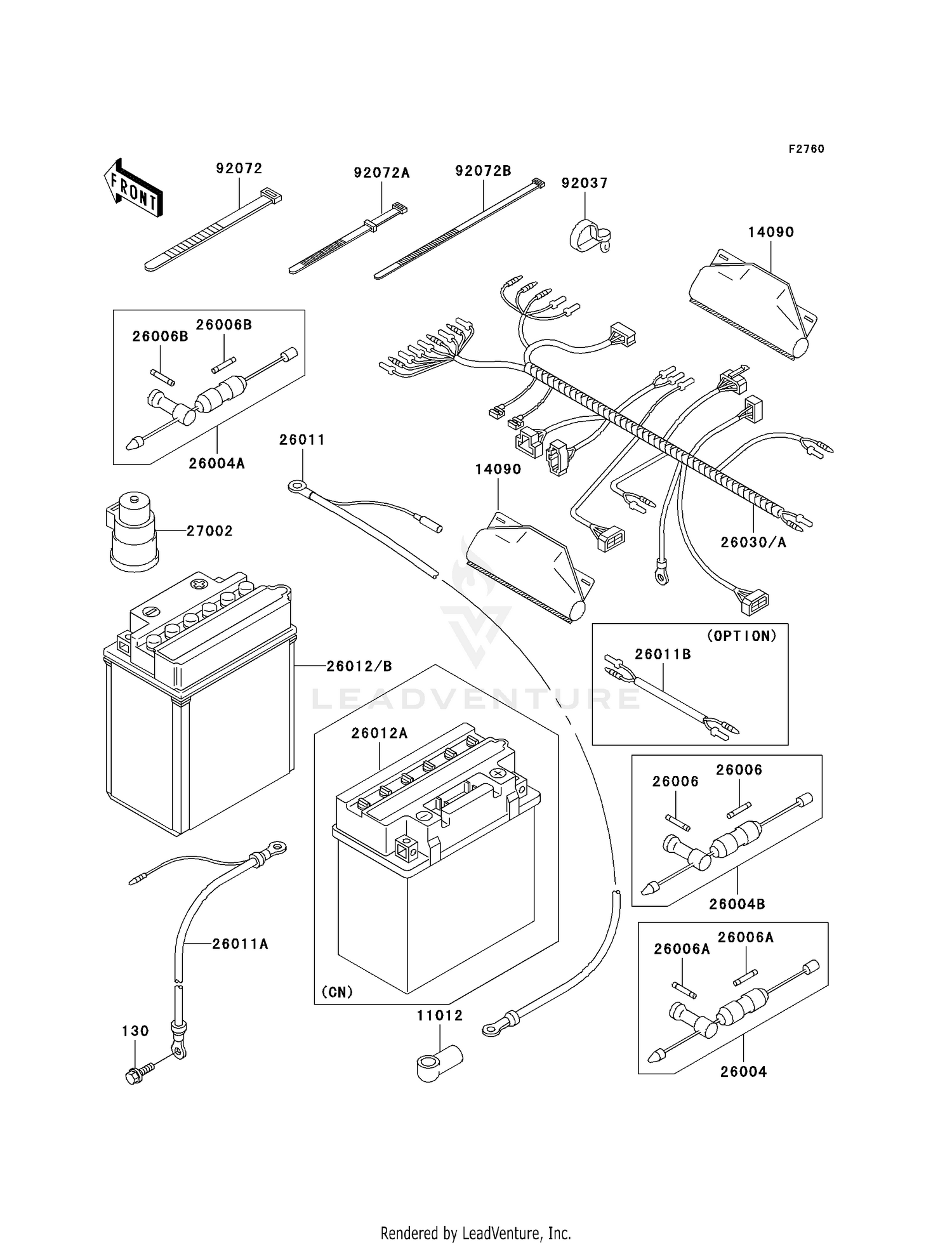

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X12
130B0612
Superseded by 130AA0612
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,TERMINAL
11012-1354
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,COUPLER
14090-1331
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,COUPLER
14090-1331
|
$8.21 | ||
|
Unavailable |
|||
|
#26004
FUSE-ASSY
26004-1104
|
$33.46 | ||
|
Available to order. Add to View Price |
|||
|
#26004A
FUSE-ASSY
26004-1114
|
$52.59 | ||
|
Available to order. Add to View Price |
|||
|
#26004B
FUSE-ASSY
26004-3715
|
$55.11 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,30A,L=30
26006-1059
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,GLASS TUBE,6.4X30,8A
26006-1062
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26006B
FUSE,GLASS TUBE,6.4X30,5A
26006-1074
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,BATTERY(+)
26011-1513
|
$27.48 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE-LEAD,BATTERY(-)
26011-1637
|
$25.94 | ||
|
Available to order. Add to View Price |
|||
|
#26011B
WIRE-LEAD,ACCESSORY C
26011-1763
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#26012
YB14A-A2,12V 14AH
26012-1146
|
$76.95 | ||
|
Available to order. Add to View Price |
|||
|
#26012A
YTX14-BS,12V 12AH
26012-1302
Superseded by 26012-1279
|
$118.95 | ||
|
Unavailable |
|||
|
#26030
HARNESS,MAIN
26030-1602
|
$163.87 | ||
|
Available to order. Add to View Price |
|||
|
#27002
RELAY-ASSY
27002-1095
|
$56.53 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,SPEED,L=80.5
92037-1903
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=123
92072-030
|
$4.84 | ||
|
Unavailable |
|||
|
#92072A
BAND,L=186
92072-056
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=188
92072-1239
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=188
92072-1239
|
$1.69 | ||
|
Unavailable |
|||
