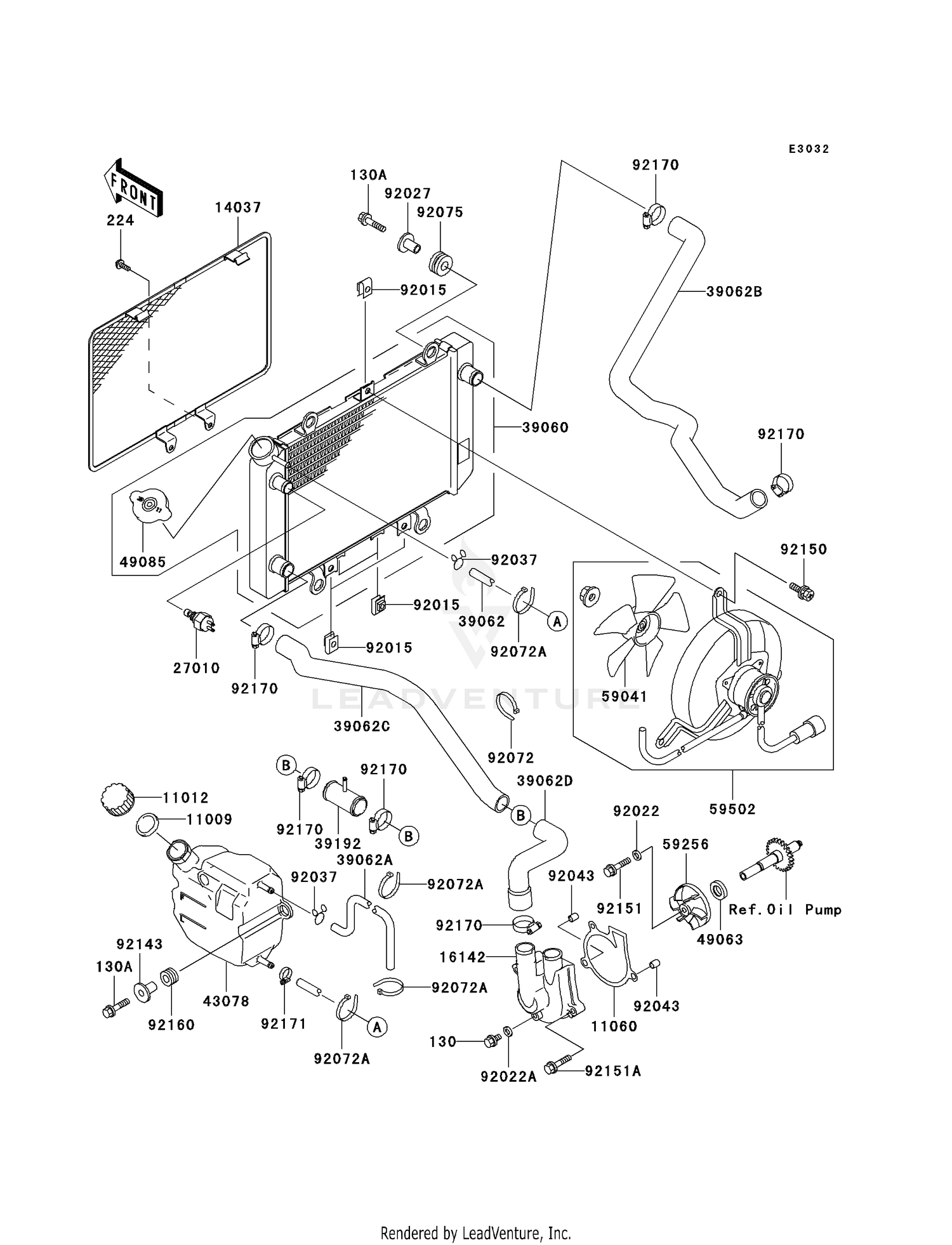

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X10
130J0610
Superseded by 130BB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#224
SCREW-PAN-WP-CROS
224C0612
Superseded by 224AB0612
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,RESERVOIR TANK CAP
11009-1145
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,WATER PUMP COV
11060-1730
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN
14037-1221
|
$70.64 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP
16142-1137
|
$74.82 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,FAN
27010-1202
|
$94.98 | ||
|
Available to order. Add to View Price |
|||
|
#39060
RADIATOR
39060-1150
|
$612.13 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSECOOLNG5.5X10.5X15
39062-1675
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSECOOLNG5.5X10.5X70
39062-1676
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLNG,HEAD RADI
39062-1701
|
$37.40 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING
39062-1740
|
$37.40 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING
39062-1741
|
$28.69 | ||
|
Available to order. Add to View Price |
|||
|
#39192
PIPE-WATER
39192-1020
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-1163
|
$46.03 | ||
|
Available to order. Add to View Price |
|||
|
#49063
SEAL-MECHANICAL
49063-1002
Superseded by 49063-1055
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1066
|
$36.13 | ||
|
Available to order. Add to View Price |
|||
|
#59041
FAN
59041-1058
|
$72.07 | ||
|
Available to order. Add to View Price |
|||
|
#59256
IMPELLER
59256-1073
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#59502
FAN-ASSY
59502-1123
|
$632.92 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,8X10
92043-1302
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=186
92072-056
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1353
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X12
92150-1186
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6X22
92151-1074
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,6X30
92151-1139
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,10X20X12
92160-1167
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1497
Superseded by 92171-0261
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1128
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
