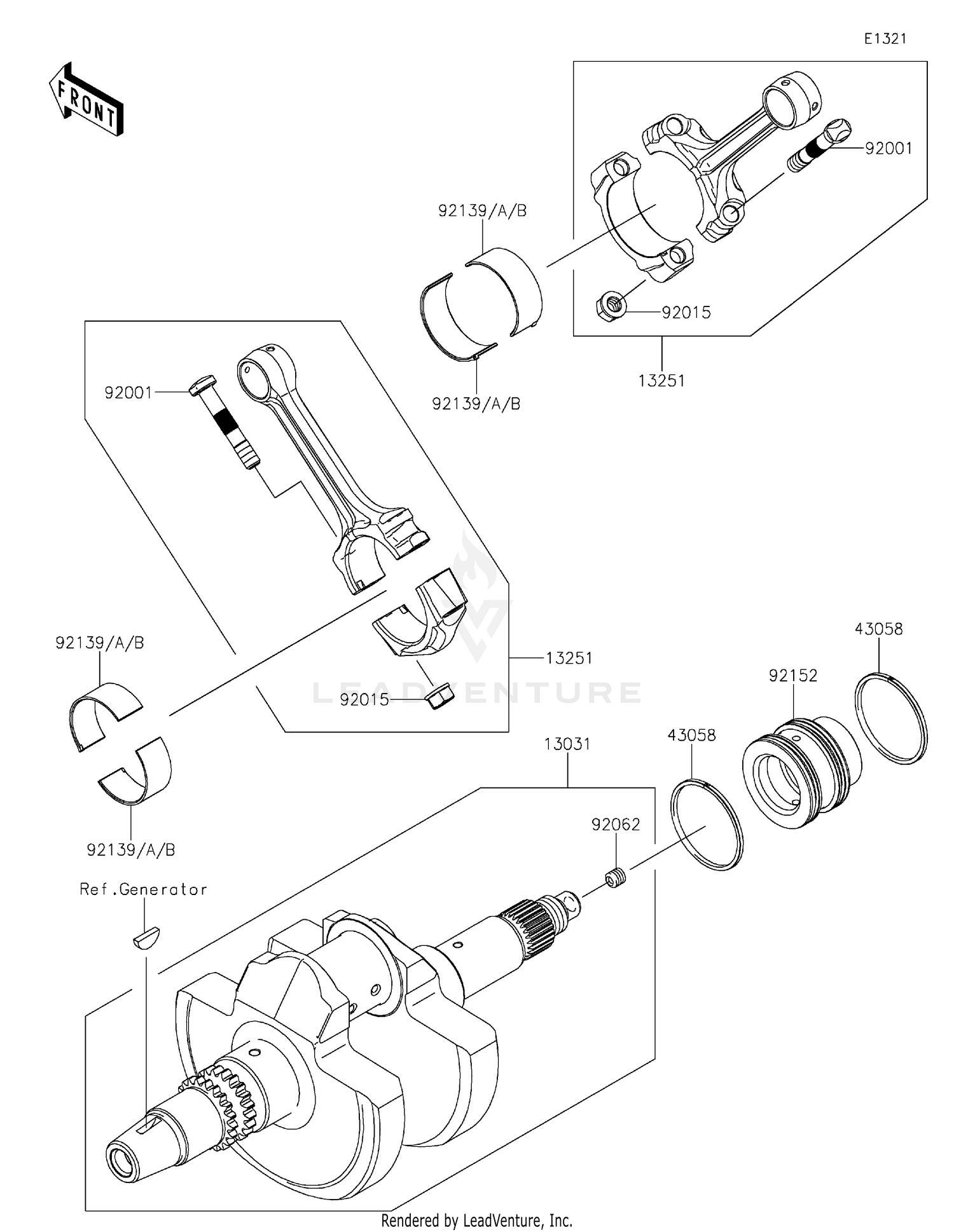

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13031
CRANKSHAFT-COMP
13031-0762
Superseded by 13031-0983
|
$524.80 | ||
|
Available to order. Add to View Price |
|||
|
#13251
ROD-ASSY-CONNECTING
13251-0709
|
$195.80 | ||
|
Available to order. Add to View Price |
|||
|
#43058
RING
43058-0702
|
$23.19 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,CONNECTING ROD
92001-1980
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1311
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE,8X8,SILVER
92062-1082
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92139
BUSHING,CONNECTING ROD,GREEN
92139-0764
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92139A
BUSHING,CONNECTING ROD,YELLOW
92139-0765
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92139B
BUSHING,CONNECTING ROD,BROWN
92139-0766
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,CRANK-CLUTCH
92152-0956
|
$46.19 | ||
|
Available to order. Add to View Price |
|||
