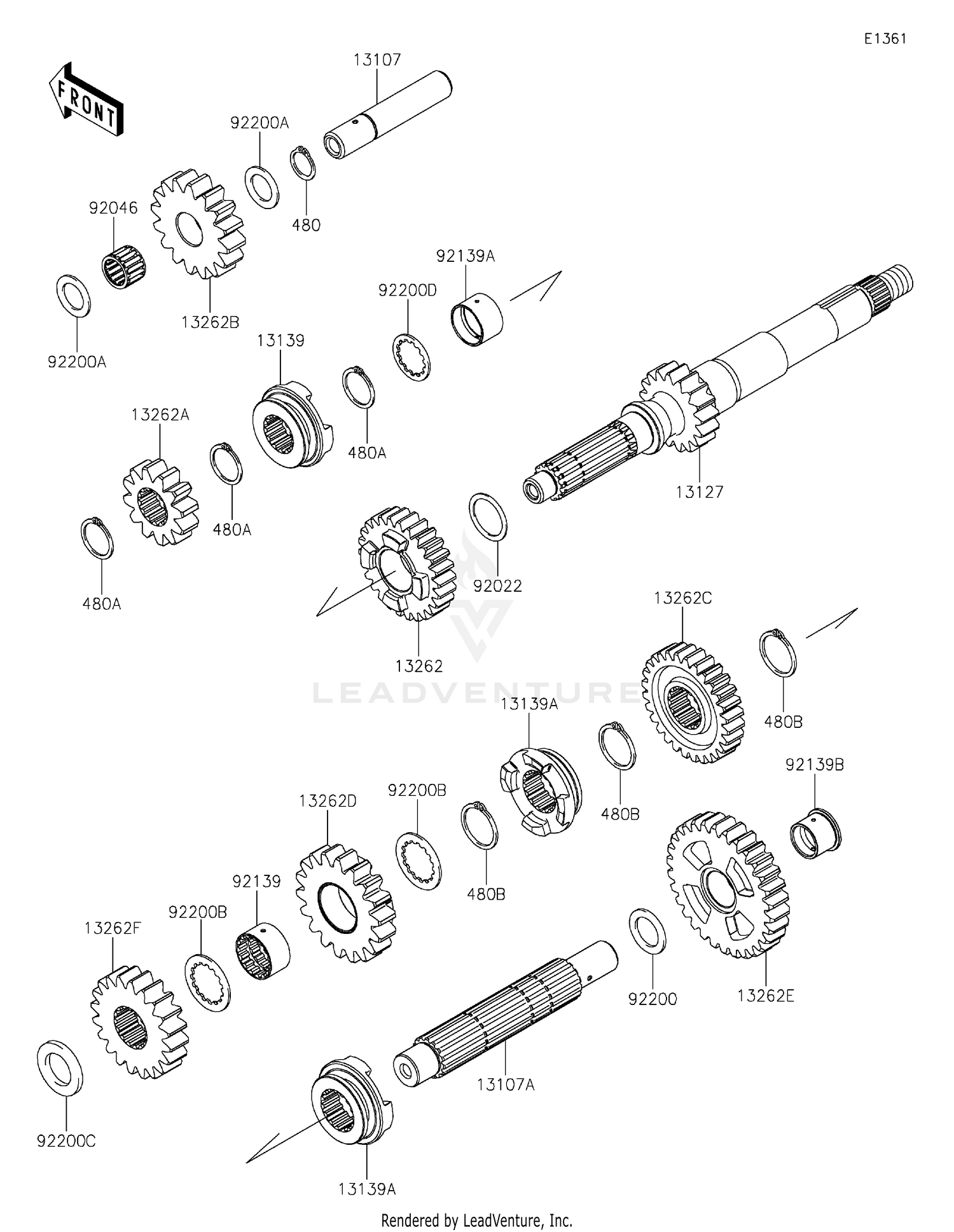

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13107
SHAFT,REVERSE
13107-0715
|
$45.87 | ||
|
Available to order. Add to View Price |
|||
|
#13107A
SHAFT,COUNTER
13107-0716
|
$99.30 | ||
|
Available to order. Add to View Price |
|||
|
#13127
SHAFT-TRANSMISSION INPUT,17T
13127-0654
|
$312.81 | ||
|
Available to order. Add to View Price |
|||
|
#13139
SHIFTER,INPUT HI
13139-0624
|
$49.38 | ||
|
Available to order. Add to View Price |
|||
|
#13139A
SHIFTER,OUTPUT
13139-0625
|
$51.45 | ||
|
Available to order. Add to View Price |
|||
|
#13262
GEAR,INPUT HI,26T
13262-0860
Superseded by 13262-1551
|
$93.81 | ||
|
Available to order. Add to View Price |
|||
|
#13262A
GEAR,INPUT REVERSE,12T
13262-0861
|
$69.02 | ||
|
Available to order. Add to View Price |
|||
|
#13262B
GEAR,REVERSE IDLE,16T
13262-0862
|
$64.68 | ||
|
Available to order. Add to View Price |
|||
|
#13262C
GEAR,OUTPUT HI,28T
13262-0863
Superseded by 13262-1552
|
$69.97 | ||
|
Available to order. Add to View Price |
|||
|
#13262D
GEAR,OUTPUT REVERSE,18T
13262-0865
|
$108.04 | ||
|
Available to order. Add to View Price |
|||
|
#13262E
GEAR,OUTPUT LOW,31T
13262-0867
|
$96.98 | ||
|
Available to order. Add to View Price |
|||
|
#13262F
GEAR,OUTPUT,19T
13262-1141
|
$127.41 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,25.3X32X1
92022-1800
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,182216E03 C3
92046-0605
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#92139
BUSHING,25X28.3X16.7
92139-0107
|
$25.95 | ||
|
Available to order. Add to View Price |
|||
|
#92139A
BUSHING,25X28X17.8
92139-0280
|
$33.47 | ||
|
Available to order. Add to View Price |
|||
|
#92139B
BUSHING,20X24X18.7
92139-0707
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,20.2X30X1.8
92200-0221
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,18.2X28X1.5
92200-0716
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,28.5X38X1.5
92200-0717
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92200C
WASHER,22.2X36X3.6
92200-0718
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92200D
WASHER,25.2X31.0X1.5
92200-1239
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,18MM
480J1800
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP-TYPE-C,24MM
480J2400
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#480B
CIRCLIP-TYPE-C,28MM
480J2800
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
