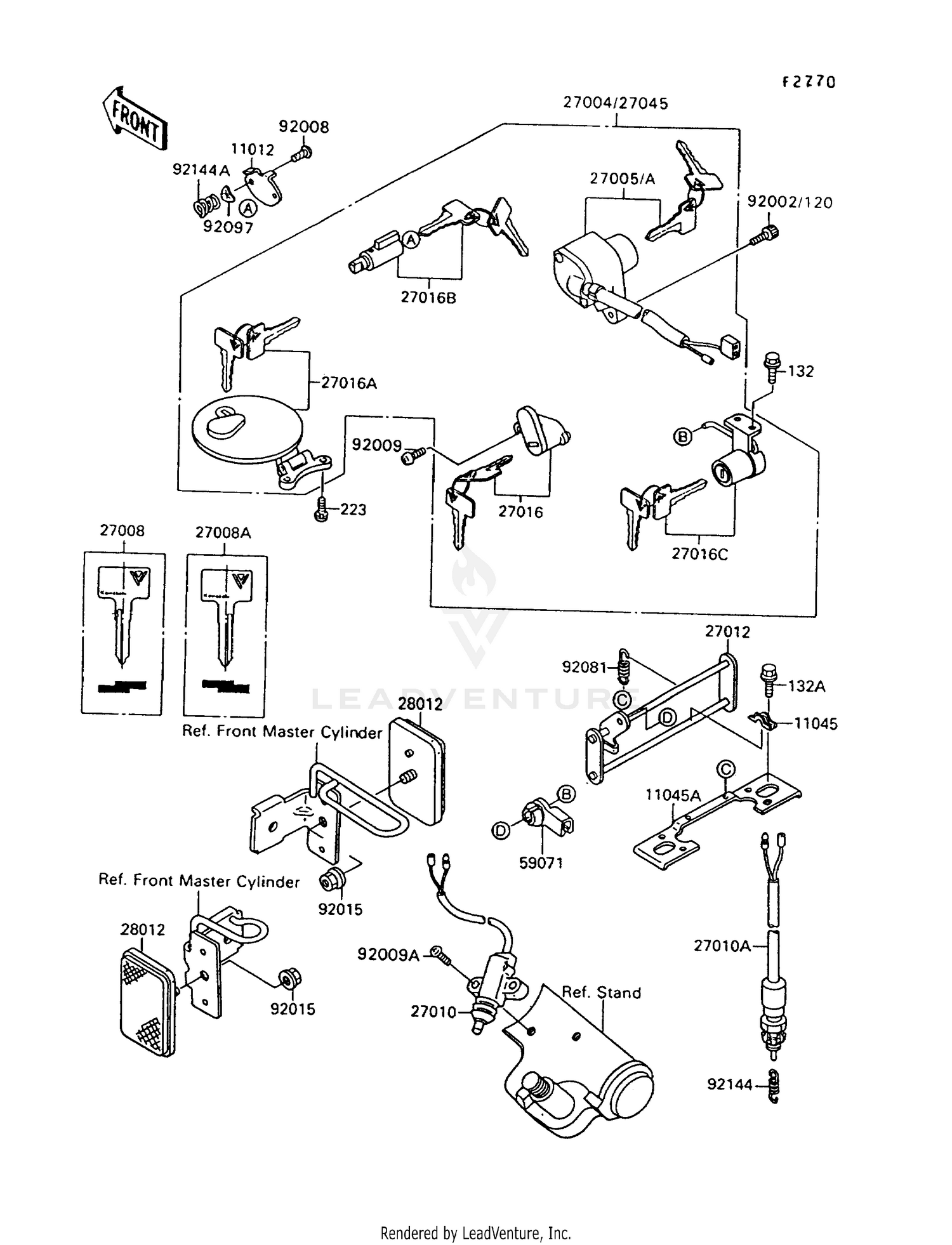

Ignition Switch/locks/reflectors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X8
132G0608
Superseded by 132BA0608
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X12
132J0612
Superseded by 132BB0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS
223B0410
Superseded by 223AA0410
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,STEERING LOCK
11012-1586
|
$7.46 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,SEAT HOOK
11045-1700
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#11045A
BRACKET,SEAT HOOK
11045-1701
|
$13.19 | ||
|
Available to order. Add to View Price |
|||
|
#27005A
SWITCH-ASSY-IGNITION
27005-1184
Superseded by 27005-1205
|
$164.79 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK,#A
27008-1138
|
$20.13 | ||
|
Available to order. Add to View Price |
|||
|
#27008A
KEY-LOCK,BLANK,#B
27008-1139
|
$20.13 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,SIDE STAND
27010-1223
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,REAR BRAKE
27010-1238
Superseded by 27010-1477
|
$33.80 | ||
|
Available to order. Add to View Price |
|||
|
#27012
HOOK,SEAT
27012-1371
|
$33.64 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,HELMET
27016-5129
Superseded by 27016-5311
|
$65.23 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,FUEL TANK C
27016-5130
|
$90.08 | ||
|
Available to order. Add to View Price |
|||
|
#27016B
LOCK-ASSY,STEERING
27016-5131
Superseded by 27016-5255
|
$82.59 | ||
|
Available to order. Add to View Price |
|||
|
#27016C
LOCK-ASSY,SEAT
27016-5132
|
$63.56 | ||
|
Available to order. Add to View Price |
|||
|
#27045
SWITCH-ASSY
27045-5001
Superseded by 27045-5269
|
$469.93 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX,FR
28012-1009
|
$25.30 | ||
|
Available to order. Add to View Price |
|||
|
#59071
JOINT
59071-1103
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SOCKET,5X12
92002-1173
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#92008
SCREW,3.51MM
92008-007
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X12
92009-1296
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X20
92009-1459
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1656
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,HOOK RETURN
92081-1466
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92097
WASHER,WAVE
92097-003
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,REAR BRAKE SWITCH
92144-1141
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,STEERING LOCK
92144-1222
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
