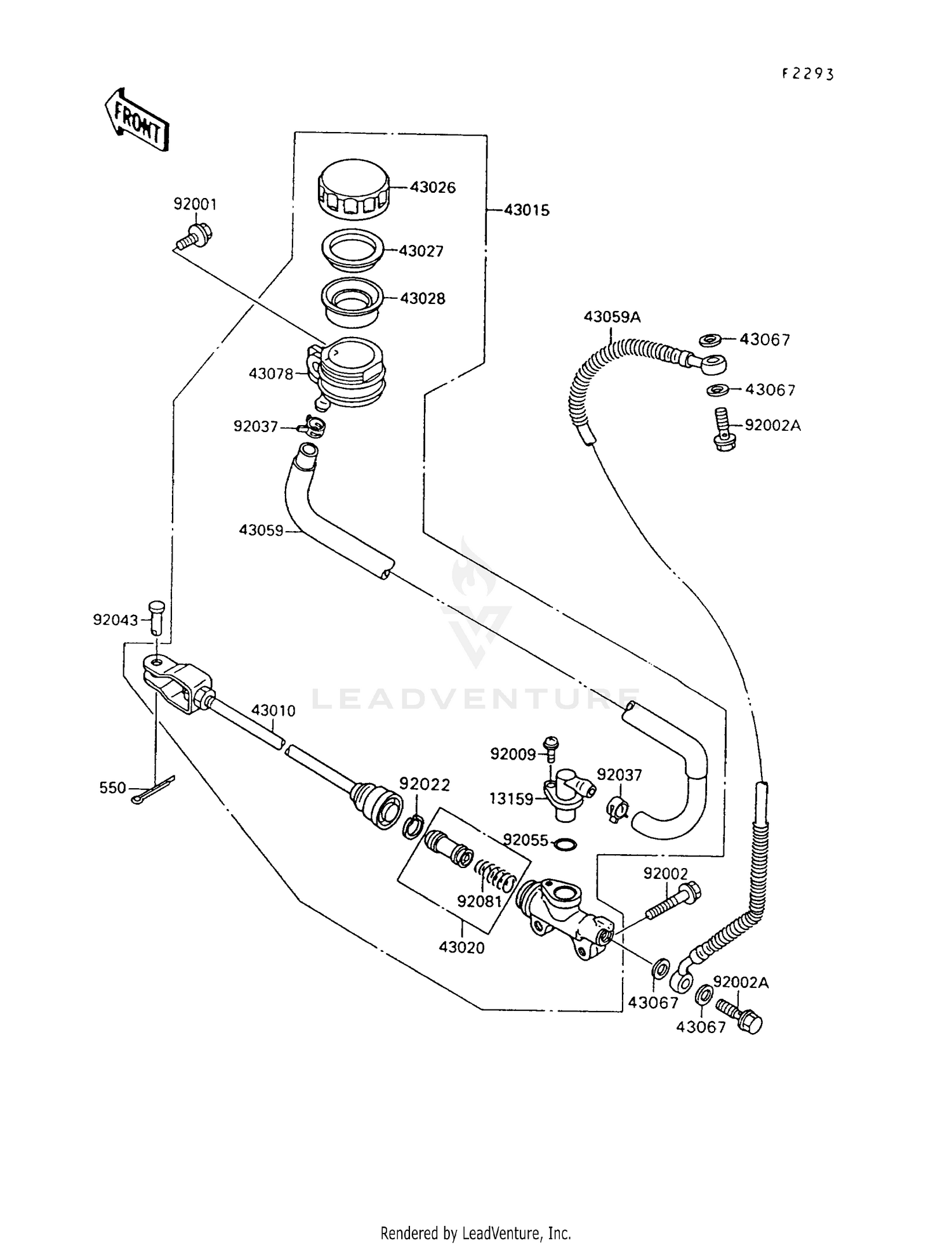

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR
13159-1058
|
$13.80 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-1064
|
$54.80 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,RR
43015-1349
|
$356.90 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1057
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1051
|
$32.90 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1051
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43059
HOSE-BRAKE,RR MASTER CYLINDER
43059-1414
|
$16.16 | ||
|
Available to order. Add to View Price |
|||
|
#43059A
HOSE-BRAKE,RR
43059-1439
Superseded by 43095-1077
|
$124.30 | ||
|
Available to order. Add to View Price |
|||
|
#43067
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR,RR MASTER C
43078-1058
Superseded by 43078-1165
|
$29.11 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,W/P,6X16
92001-1860
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,8X30
92002-1539
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92009
BOLT,SCREW,4X12
92009-1486
Superseded by 92002-1323
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
RING-SNAP,20.9X24.6X1.2
92022-1601
Superseded by 92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,BRAKE HOSE
92037-1547
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X16
92043-1013
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-1251
Superseded by 92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,MASTER CYLINDER
92081-1737
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
