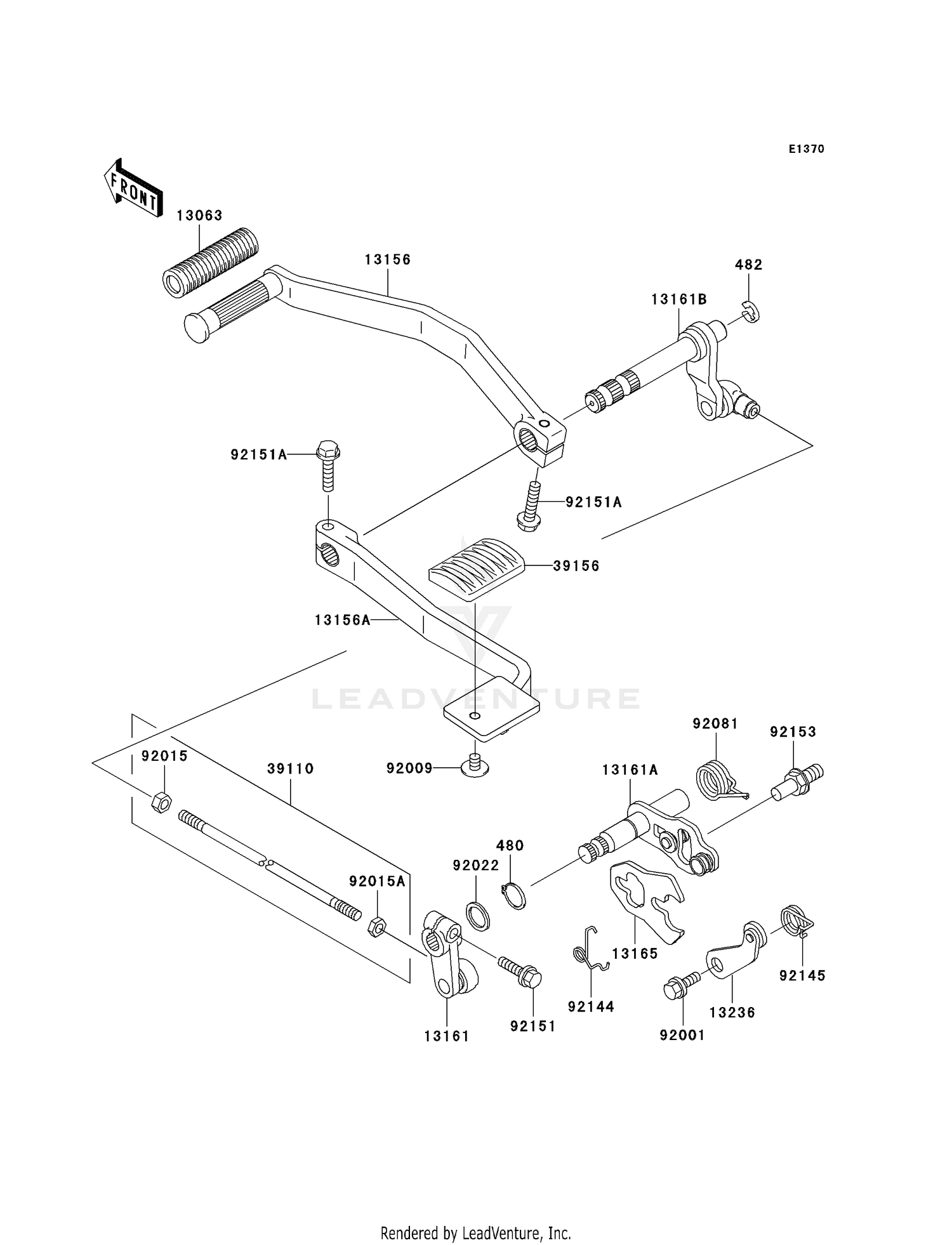

Gear Change Mechanism (r1-r3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#480
CIRCLIP-TYPE-C,13MM
480J1300
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP-TYPE-E,10MM
482L0100
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#13063
DAMPER,PEDAL
13063-002
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#13156
LEVER-CHANGE
13156-1456
|
$86.82 | ||
|
Available to order. Add to View Price |
|||
|
#13156A
LEVER-CHANGE
13156-1467
|
$83.38 | ||
|
Available to order. Add to View Price |
|||
|
#13161
LEVER-COMP-CHANGE SHA
13161-1253
|
$72.57 | ||
|
Available to order. Add to View Price |
|||
|
#13161A
LEVER-COMP-CHANGE SHA
13161-1254
|
$64.77 | ||
|
Available to order. Add to View Price |
|||
|
#13161B
LEVER-COMP-CHANGE SHA
13161-1266
|
$66.61 | ||
|
Available to order. Add to View Price |
|||
|
#13165
PAWL
13165-1120
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,POSITION
13236-1126
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#39110
ROD-ASSY-TIE
39110-1119
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD
39156-1641
Superseded by 39156-2695
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X14
92001-1715
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X8
92009-1677
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1443
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LEFT HANDED,6MM
92015-1444
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,13.2X20X0.5
92022-1224
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CHANGE PEDAL RETURN
92081-1869
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1029
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,RETURN
92145-0008
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,6X20
92151-1226
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT
92151-1898
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,RETURN SPRING
92153-1076
Superseded by 92154-1838
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
