2002 Kawasaki VULCAN 1500 DRIFTER Rear Brake (r1-r3) OEM Parts

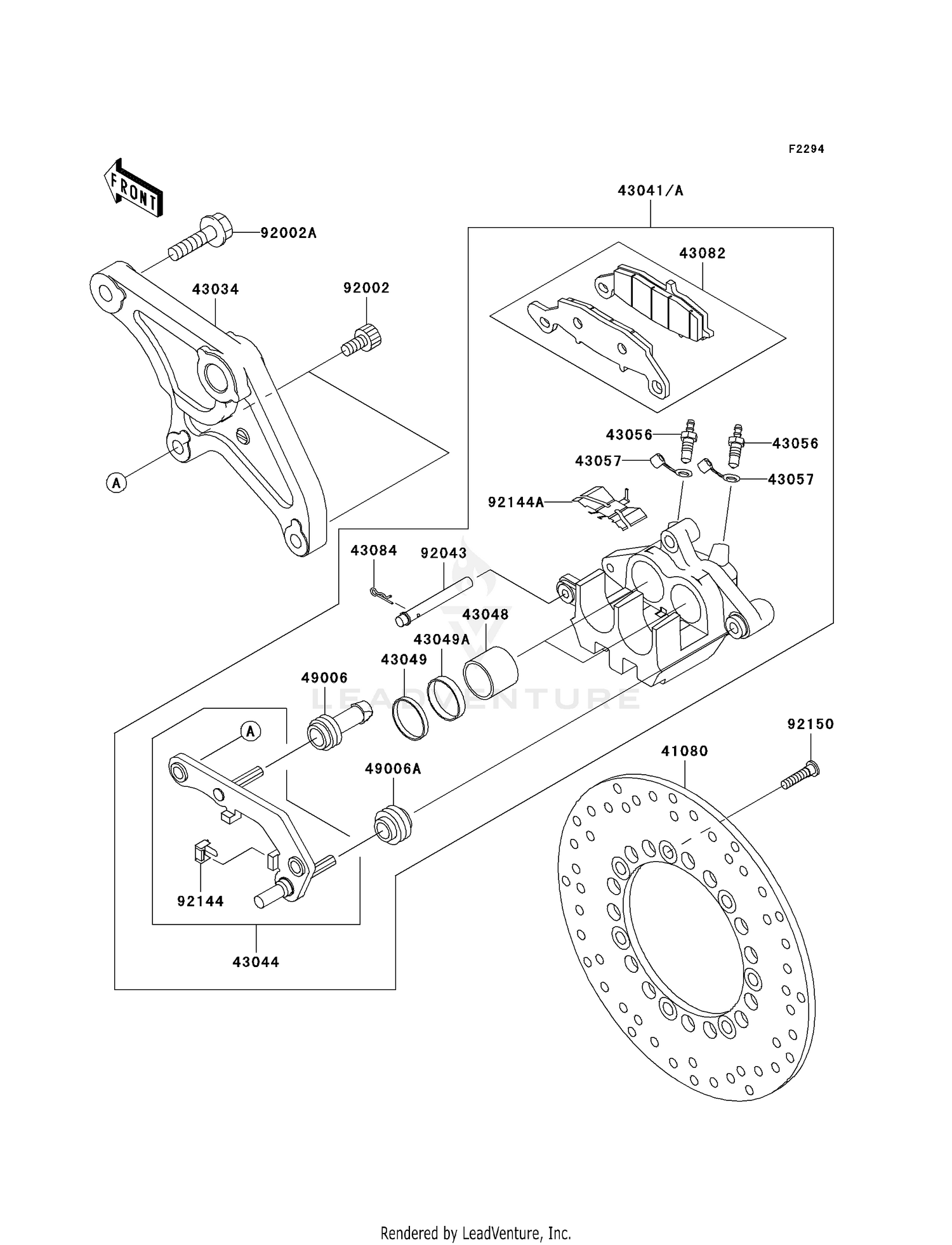

Rear Brake (r1-r3) Diagram

Item	MSRP	Qty
#41080 DISC,RR,SILVER 41080-1459-CM Superseded by 41080-0143-CM	$322.69
Available to order. Add to View Price
#43034 HOLDER-BRAKE,REAR CAL 43034-1154	$127.23
Available to order. Add to View Price
#43041 CALIPER-ASSY,RR,SILVE 43041-1823-GN Superseded by 43041-1886-GN	$468.29
Available to order. Add to View Price
#43044 HOLDER-COMP-CALIPER,R 43044-1125	$175.94
Available to order. Add to View Price
#43048 PISTON-CALIPER 43048-1073	$62.75
Available to order. Add to View Price
#43049 PACKING 43049-1068	$9.48
Available to order. Add to View Price
#43049A PACKING,PISTON SEAL 43049-1092	$10.03
Available to order. Add to View Price
#43056 BLEEDER SET 43056-1054 Superseded by 43085-001	$23.70
Available to order. Add to View Price
#43057 CAP-BREATHER 43057-003	$2.38
Available to order. Add to View Price
#43082 PAD-ASSY-BRAKE 43082-1265	$65.10
Available to order. Add to View Price
#43084 CLAMP,PAD 43084-003	$4.17
Available to order. Add to View Price
#49006 BOOT,CALIPER 49006-1054	$11.20
Available to order. Add to View Price
#49006A BOOT,CALIPER 49006-1095	$7.02
Available to order. Add to View Price
#92002 BOLT,SOCKET,10X17 92002-1713	$7.09
Available to order. Add to View Price
#92002A BOLT,FLANGED,12X40 92002-1969	$8.73
Available to order. Add to View Price
#92043 PIN,PAD 92043-1489	$6.36
Available to order. Add to View Price
#92144 SPRING,STOPPER 92144-1831	$5.29
Available to order. Add to View Price
#92144A SPRING,PAD,RH 92144-1844	$9.65
Available to order. Add to View Price
#92150 BOLT,SOCKET,8X30 92150-1771 Superseded by 92154-1865	$4.54
Available to order. Add to View Price
