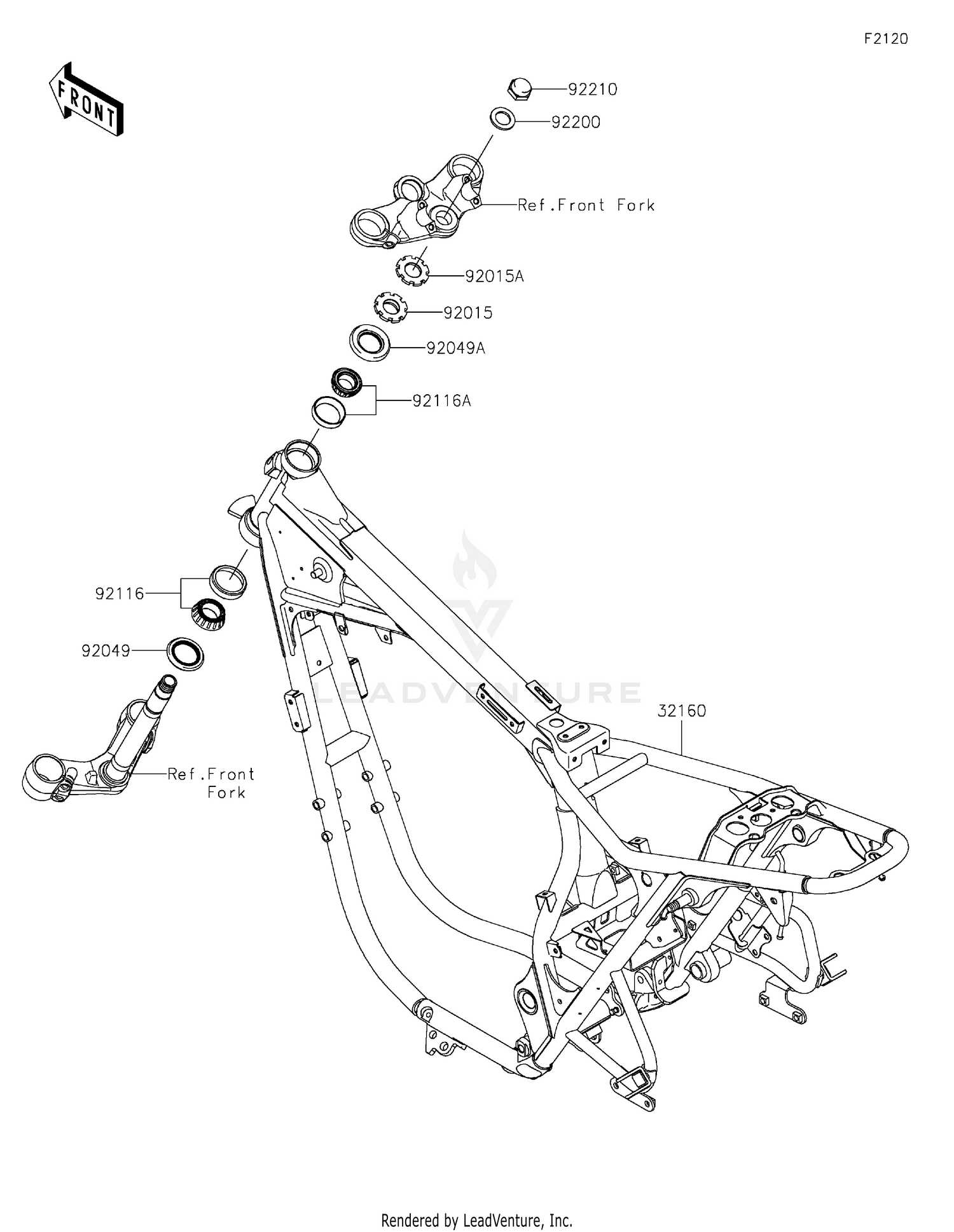

2020 Kawasaki W800 CAFE Frame OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#32160
FRAME-COMP
32160-0998
|
$2,276.13 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,25MM
92015-1803
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,25MM
92015-1810
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,XMHE36X52X4J
92049-1162
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,STEERING STEM
92049-1214
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#92116
BEARING-ROLLER,HR320/28XJ
92116-1009
|
$34.60 | ||
|
Available to order. Add to View Price |
|||
|
#92116A
BEARING-ROLLER,HI-CAP32005JR-1
92116-1056
|
$40.89 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,22.5X36X3.2
92200-0134
|
$8.37 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,CAP,22MM
92210-0263
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
