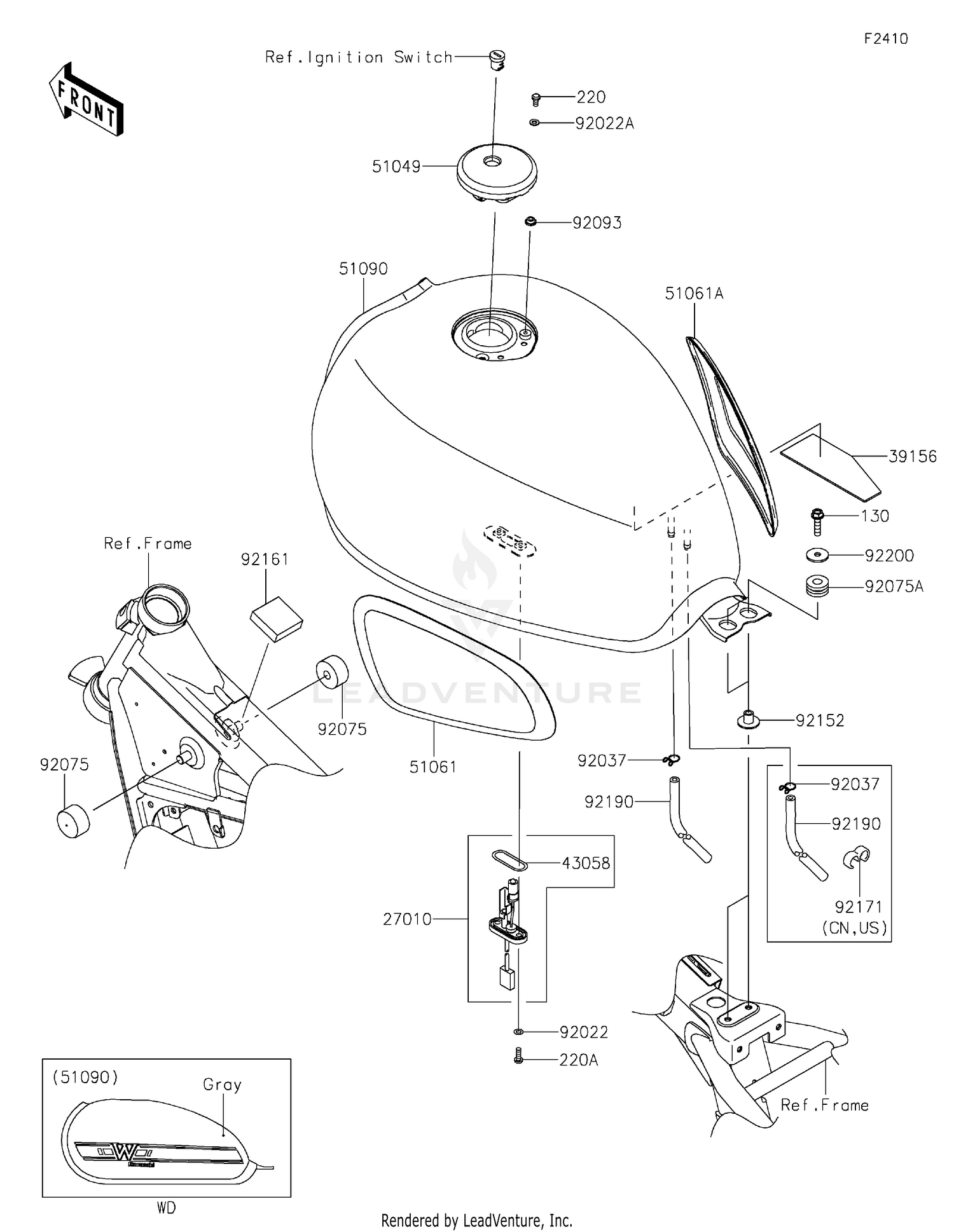

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#27010
SWITCH,FUEL LEVEL
27010-0718
|
$113.29 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,FUEL TANK,INNER
39156-2550
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#43058
RING,FUEL LEVEL SWITCH
43058-1004
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-0003
|
$105.13 | ||
|
Available to order. Add to View Price |
|||
|
#51061
PAD-KNEE,LH
51061-0006
|
$173.76 | ||
|
Available to order. Add to View Price |
|||
|
#51061A
PAD-KNEE,RH
51061-0007
|
$173.76 | ||
|
Available to order. Add to View Price |
|||
|
#51090
TANK-COMP-FUEL,M.M.GRAY
51090-5440-27Y
|
$1,657.33 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X10X1.5
92022-1023
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.1X10X1.0
92022-1977
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Unavailable |
|||
|
#92075
DAMPER,FUEL TANK
92075-125
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,40X40X12
92161-2147
|
$7.46 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1184
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,DRAIN
92190-1453
|
$20.57 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,DRAIN
92190-1453
|
$20.57 | ||
|
Unavailable |
|||
|
#92200
WASHER,6.5X24X2
92200-2230
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130BC0625
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X14
220AA0514
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
