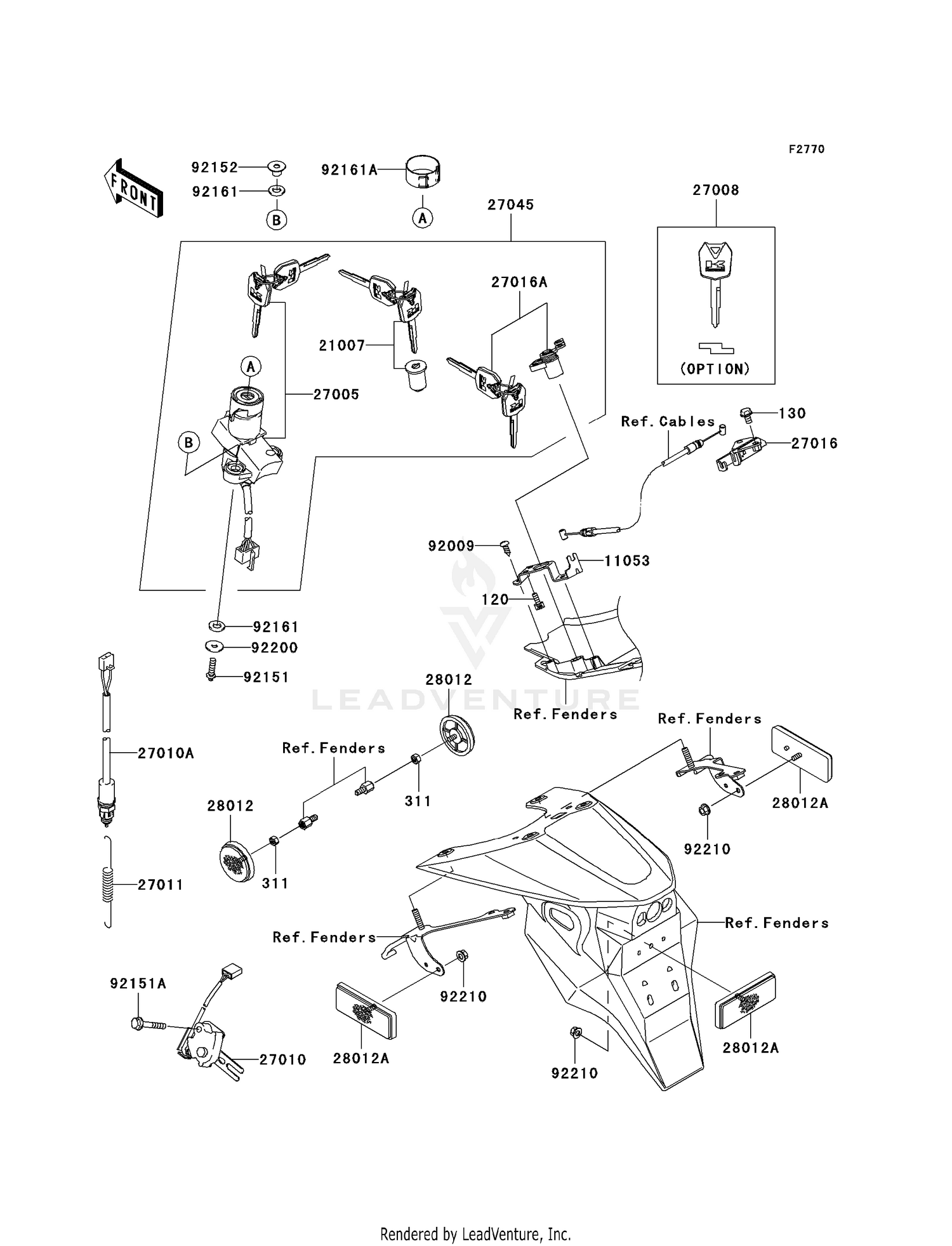

Ignition Switch/locks/reflectors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X12
130J0612
Superseded by 130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX
311L0500
Superseded by 311BB0500
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#11053
BRACKET,SEAT LOCK
11053-1146
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#21007
ROTOR,LOCK,TANK CAP
21007-5057
|
$81.45 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-5135
Superseded by 27005-5137
|
$170.43 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-0030
Superseded by 27008-0618
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,SIDE STAND
27010-1470
|
$67.59 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,REAR BRAKE
27010-1479
|
$28.89 | ||
|
Available to order. Add to View Price |
|||
|
#27011
BRAKE SWITCH SPRING
27011-021
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,SEAT STRIKER
27016-1115
|
$27.48 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,SEAT
27016-5322
|
$71.22 | ||
|
Available to order. Add to View Price |
|||
|
#27045
SWITCH-ASSY
27045-5331
|
$343.89 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX,FR
28012-016
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-1077
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,5X12,BL
92009-1138
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,TORX,6X22
92151-1946
Superseded by 92154-1858
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,6X35
92151-1982
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0352
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,IGNITION SWITCH
92161-0240
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,IGNITION SWITCH
92161-0257
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6X20X1.6
92200-0212
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,5MM
92210-0007
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
