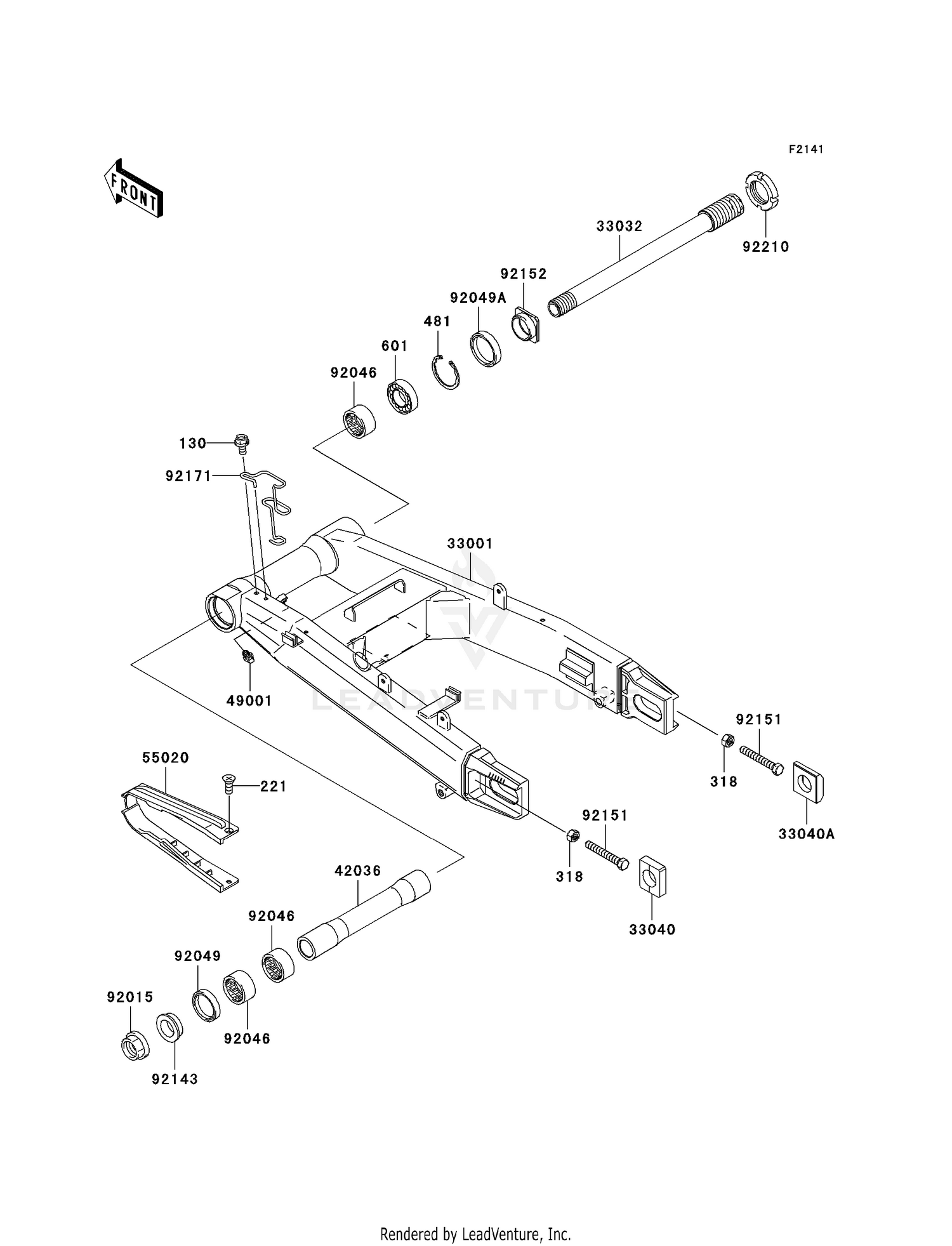

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X12
130L0612
Superseded by 130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,5X8
221C0508
Superseded by 221AB0508
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#318
NUT-HEX-SMALL,8MM
318G0800
Superseded by 318BA0800
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#481
RING-SNAP,47MM
481J4700
Superseded by 92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6005U
601B6005U
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING,F.BLAC
33001-0044-21
|
$922.44 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-1206
|
$147.38 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER-CHAIN,RH
33040-1114
|
$18.59 | ||
|
Available to order. Add to View Price |
|||
|
#33040A
ADJUSTER-CHAIN,RH
33040-1180
|
$30.55 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,SWING ARM,L=22
42036-0023
|
$76.49 | ||
|
Available to order. Add to View Price |
|||
|
#49001
NIPPLE-GREASE
49001-0001
Superseded by 49001-1051
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,CHAIN
55020-1700
|
$70.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,25MM
92015-1845
|
$24.31 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BM3520
92046-1205
|
$29.16 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,MHA 35X47X5
92049-1381
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,KC38X47X6
92049-1521
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,SWING ARM,RH,L
92143-1481
|
$29.64 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,8X55
92151-1578
Superseded by 92153-1407
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,SWING ARM,L=14
92152-1445
|
$31.88 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,TUBE&HOSE
92171-0042
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,32MM
92210-1205
|
$25.59 | ||
|
Available to order. Add to View Price |
|||
