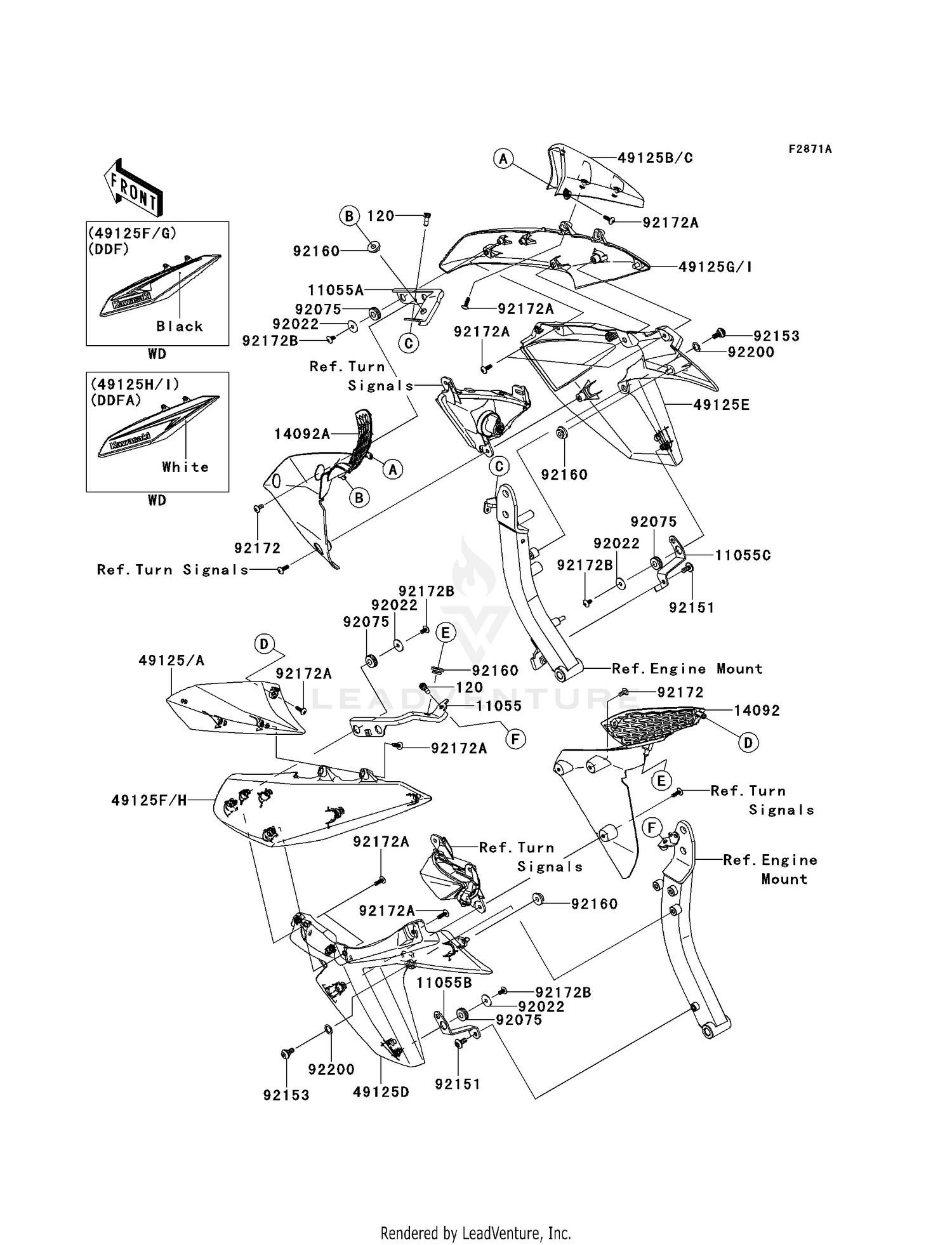

Cowling (center)(ddf/ddfa) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X14
120CB0614
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11055
BRACKET,SHROUD,UPP,LH
11055-1944
|
$14.28 | ||
|
Available to order. Add to View Price |
|||
|
#11055A
BRACKET,SHROUD,UPP,RH
11055-1945
|
$14.28 | ||
|
Available to order. Add to View Price |
|||
|
#11055B
BRACKET,SHROUD,LH
11055-1946
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#11055C
BRACKET,SHROUD,RH
11055-1947
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,INNER,LH
14092-0014
|
$38.34 | ||
|
Available to order. Add to View Price |
|||
|
#14092A
COVER,INNER,RH
14092-0015
|
$38.34 | ||
|
Available to order. Add to View Price |
|||
|
#49125A
SHROUD,UPP,LH,G.B.GRE
49125-0044-40R
|
$95.24 | ||
|
Available to order. Add to View Price |
|||
|
#49125C
SHROUD,UPP,RH,G.B.GRE
49125-0045-40R
|
$95.24 | ||
|
Available to order. Add to View Price |
|||
|
#49125D
SHROUD,LWR,LH,F.S.BLA
49125-0048-18T
|
$113.40 | ||
|
Available to order. Add to View Price |
|||
|
#49125E
SHROUD,LWR,RH,F.S.BLA
49125-0049-18T
|
$113.40 | ||
|
Available to order. Add to View Price |
|||
|
#49125F
SHROUD,MID,LH,M.S.BLA
49125-5298-660
|
$153.57 | ||
|
Available to order. Add to View Price |
|||
|
#49125G
SHROUD,MID,RH,M.S.BLA
49125-5299-660
|
$153.57 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.5X20X1.2
92022-1405
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-051
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X14
92151-1654
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6MM
92153-1956
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1613
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,5X12,GREEN
92172-0008
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW,TAPPING,5X16
92172-0175
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92172B
SCREW,TAPPING,5X10
92172-1061
Superseded by 92172-0262
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,10.4X15.9X0.5
92200-0157
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
