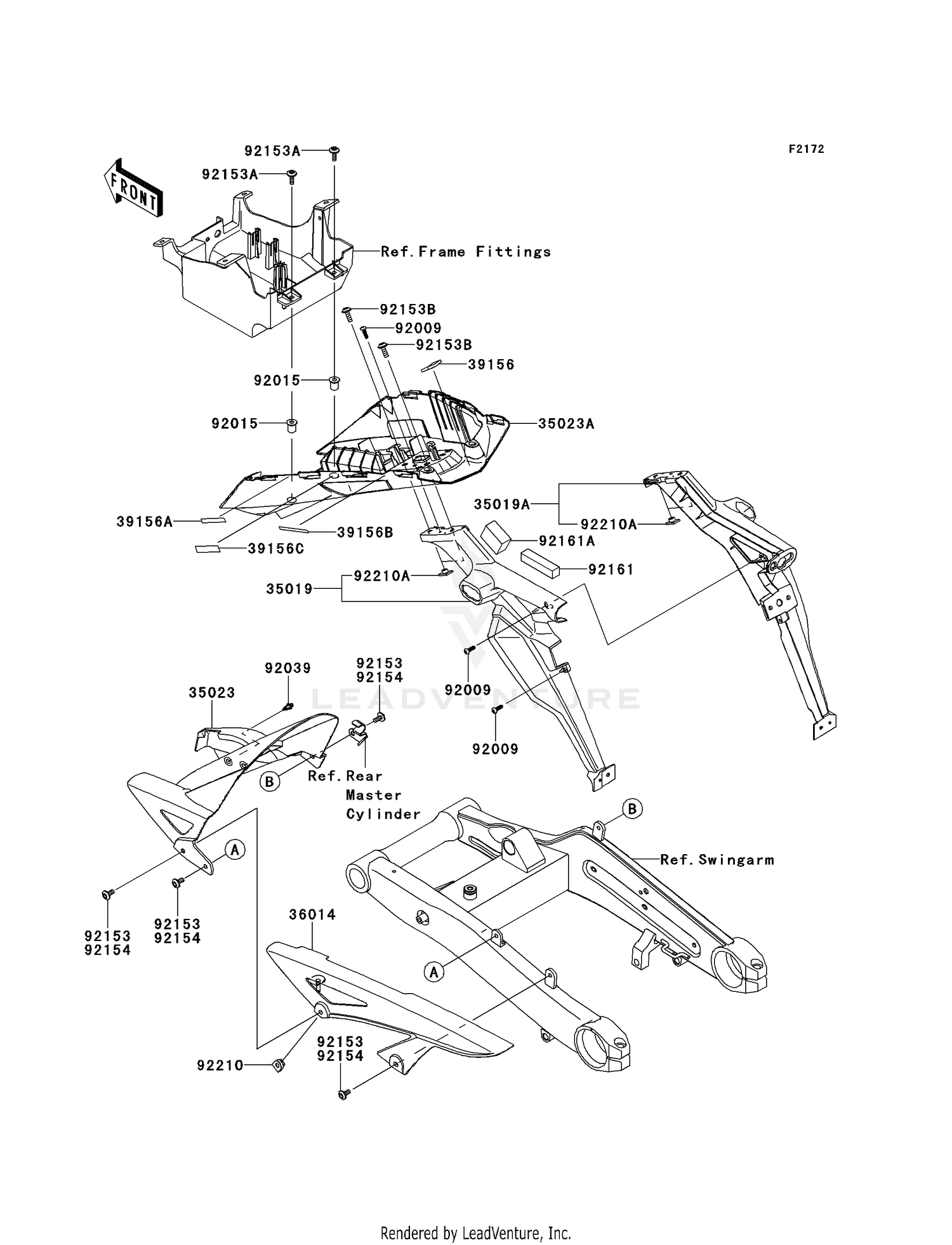

Rear Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#35019
FLAP,LH
35019-0092
Superseded by 35019-0558
|
$35.37 | ||
|
Available to order. Add to View Price |
|||
|
#35019A
FLAP,RH
35019-0093
Superseded by 35019-0559
|
$35.37 | ||
|
Available to order. Add to View Price |
|||
|
#35023
FENDER-REAR,INNER
35023-0170
Superseded by 35023-0381
|
$46.08 | ||
|
Available to order. Add to View Price |
|||
|
#35023A
FENDER-REAR
35023-0189
|
$113.30 | ||
|
Available to order. Add to View Price |
|||
|
#36014
CASE-CHAIN
36014-0029
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD
39156-0627
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,45X8
39156-0633
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,REAR FENDER,CNT
39156-0634
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#39156C
PAD,12X44
39156-0635
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,5X16
92009-1984
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1700
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0060
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,6X18
92153-0816
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,6X18
92153-1675
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X14
92154-0745
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,70X15X15
92161-0891
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-3752
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,6MM
92210-0277
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,PLATE,6MM
92210-1352
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
