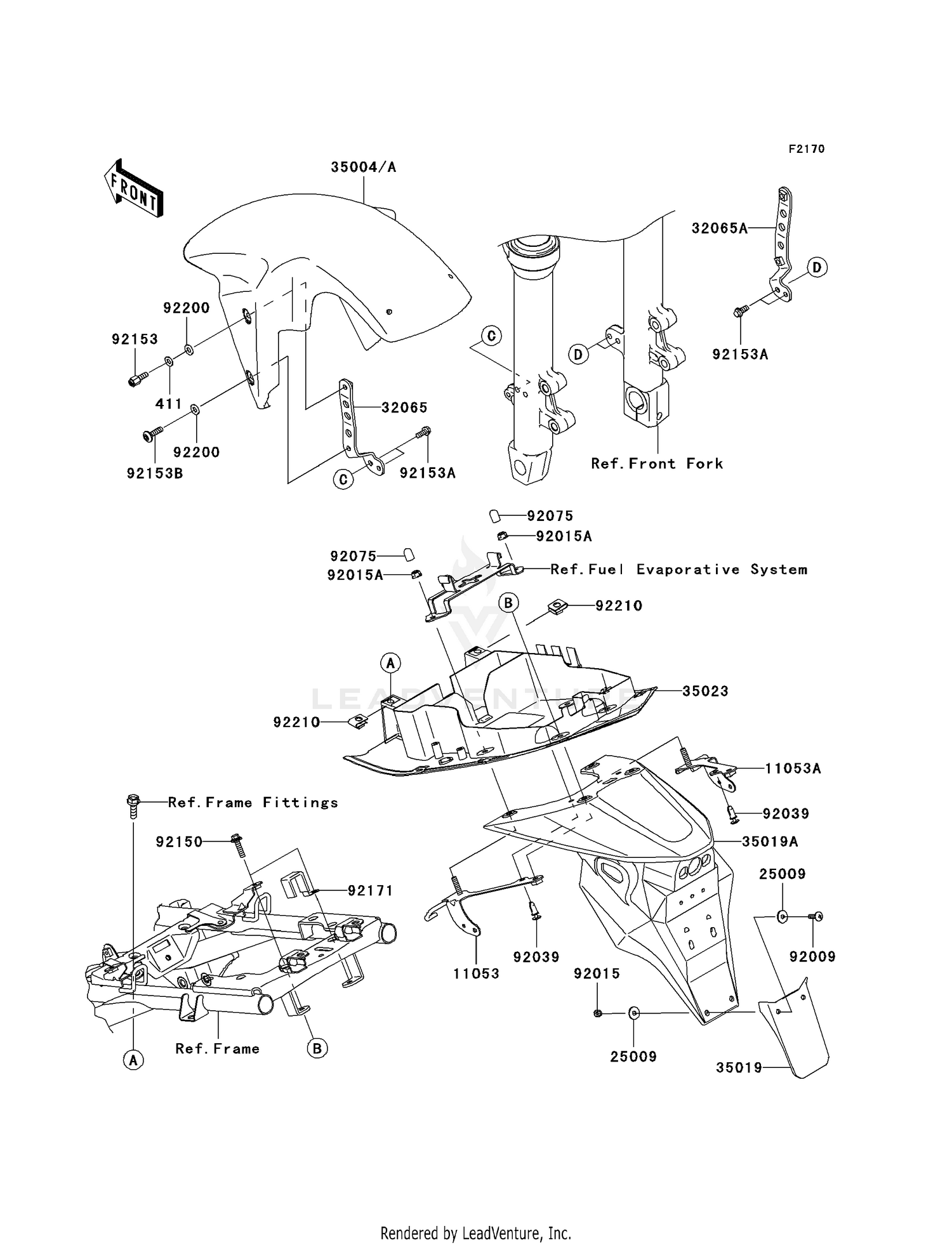

Fenders Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#411
WASHER-PLAIN,6MM
411F0600
Superseded by 411AB0600
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#11053
BRACKET,FLAP,LH
11053-0060
|
$17.83 | ||
|
Available to order. Add to View Price |
|||
|
#11053A
BRACKET,FLAP,RH
11053-0061
|
$17.83 | ||
|
Available to order. Add to View Price |
|||
|
#25009
WASHER,5.2X16X1.2
25009-004
Superseded by 92200-2276
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#32065
BRACKET-FENDER,LH
32065-0002
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#32065A
BRACKET-FENDER,RH
32065-0003
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#35004
FENDER-FRONT,C.P.BLUE
35004-0024-723
|
$202.30 | ||
|
Available to order. Add to View Price |
|||
|
#35004A
FENDER-FRONT,P.M.RED
35004-0024-724
|
|||
|
Unavailable |
|||
|
#35019
FLAP
35019-0006
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
|
#35019A
FLAP,REAR FENDER
35019-0007
|
$66.74 | ||
|
Available to order. Add to View Price |
|||
|
#35023
FENDER-COMP-REAR
35023-0044
Superseded by 35022-0026
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1653
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,5MM
92015-1221
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,FLANGED,6MM
92015-1603
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-1286
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1964
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X25
92150-1829
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6MM
92153-0476
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,6X14
92153-0589
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,6X23
92153-1267
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0488
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X14X1
92200-1388
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-0130
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
