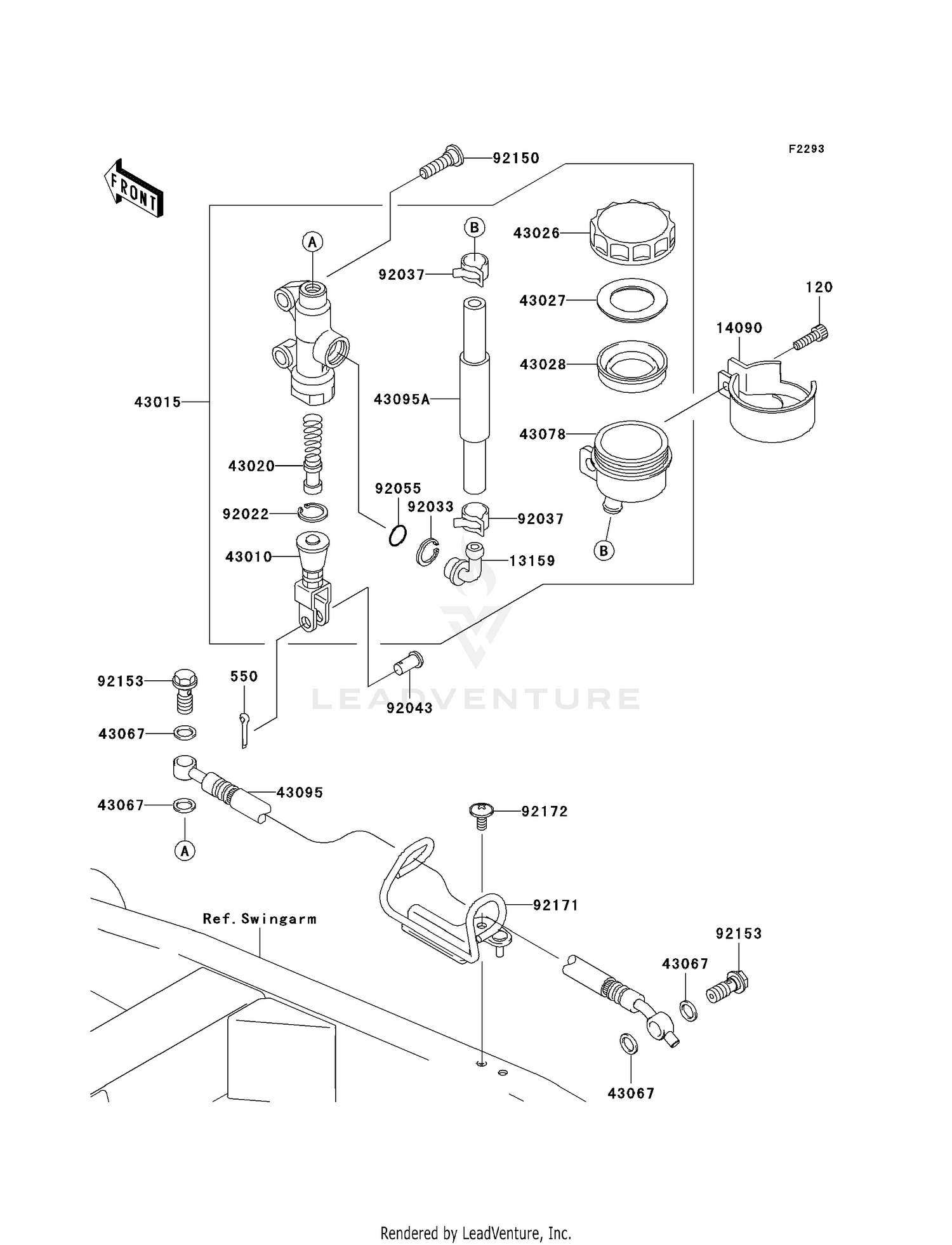

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X20
120S0620
Superseded by 120CB0620
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,RR MASTER CYLINDER
13159-1052
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,RESERVOIR TANK
14090-1482
|
$21.52 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-1062
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-1706
|
$434.93 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1094
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1051
|
$32.90 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1051
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43067
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR,RR MASTER C
43078-1165
|
$29.11 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,RR
43095-0117
|
$76.92 | ||
|
Available to order. Add to View Price |
|||
|
#43095A
HOSE-BRAKE,RR MASTER
43095-1292
|
$35.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022
RING-SNAP,20.9X24.6X1.2
92022-1601
Superseded by 92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.5MM
92033-1186
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,BRAKE HOSE
92037-1547
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X17
92043-1303
Superseded by 92043-0104
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-1251
Superseded by 92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X30
92150-1843
Superseded by 92153-1624
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,OIL,L=23
92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,BRAKE HOSE
92171-0489
|
$33.91 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X14
92172-0004
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
