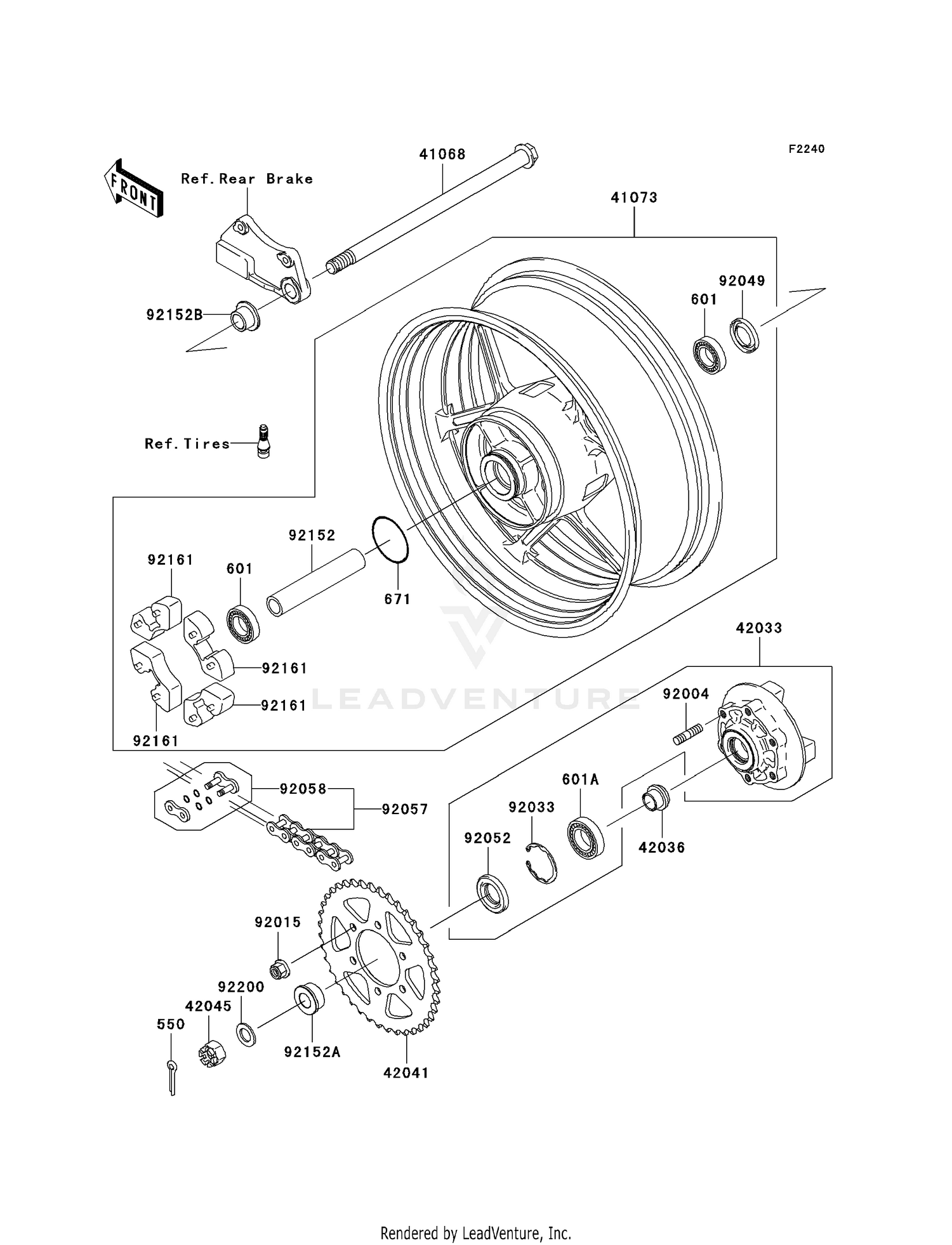

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,6204UUC3
601B6204UU
|
$28.82 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL
601B6205UU
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-0023
|
$95.41 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,GRAYSTO
41073-0009-2A
|
$1,032.08 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-0003
Superseded by 42033-0028
|
$227.83 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=23
42036-1251
|
$25.28 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,43T
42041-0010
|
$81.32 | ||
|
Available to order. Add to View Price |
|||
|
#42045
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-1275
Superseded by 92004-0028
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,10MM
92015-1335
Superseded by 92210-0276
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN28475
92049-1056
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92052
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK520MVXL
92057-0079
|
$281.49 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-0002
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,RR HUB,L=150
92152-0070
|
$20.96 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,RR AXLE,LH,L=18
92152-0118
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR,RR AXLE,RH,L=2
92152-1162
|
$24.25 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,SHOCK,RR HUB
92161-0058
Superseded by 92161-0342
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,19X32X2.6
92200-1489
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
