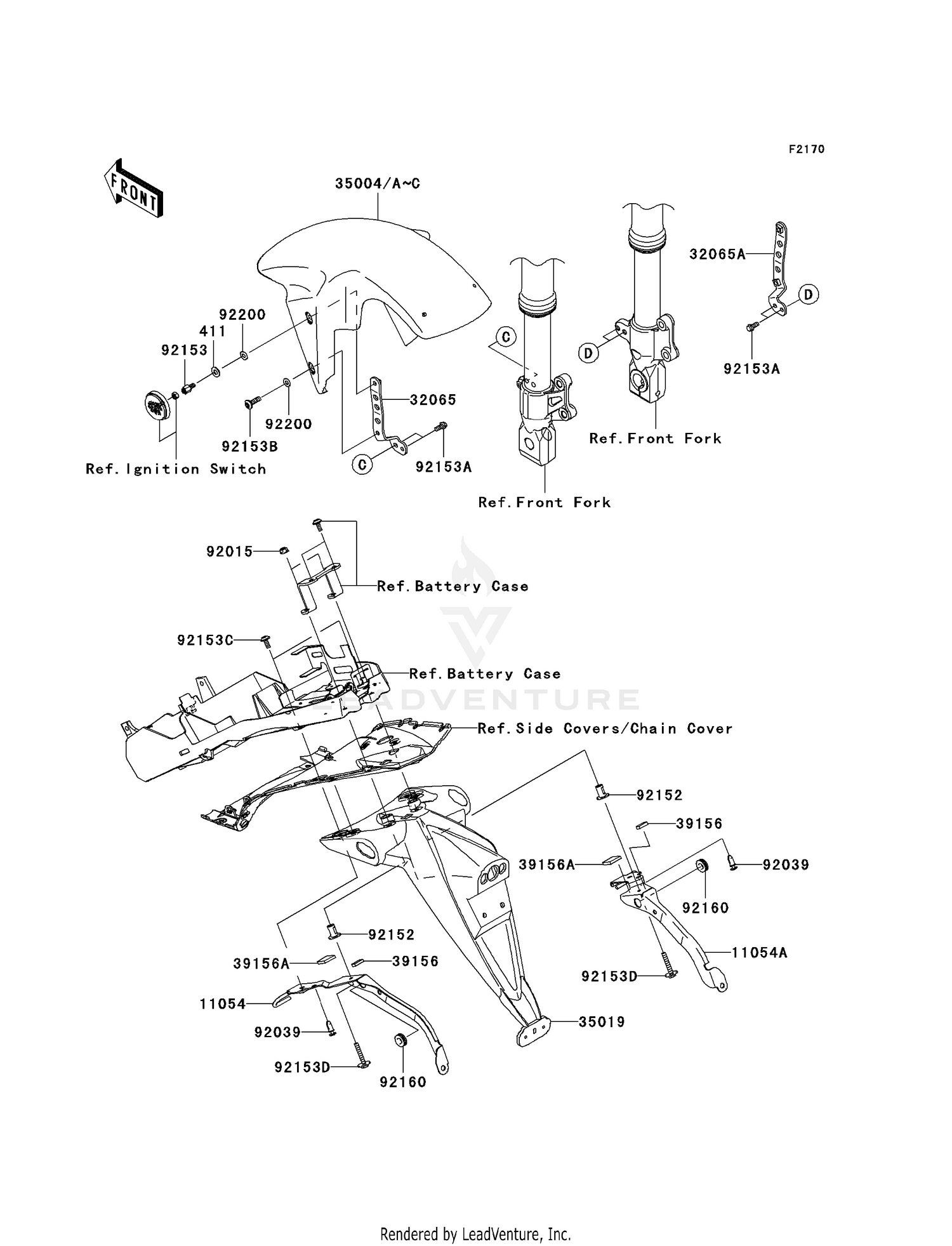

Fenders Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#411
WASHER-PLAIN,6MM
411F0600
Superseded by 411AB0600
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#11054
BRACKET,FLAP,LH
11054-1921
|
$91.80 | ||
|
Available to order. Add to View Price |
|||
|
#11054A
BRACKET,FLAP.RH
11054-1922
|
$91.80 | ||
|
Available to order. Add to View Price |
|||
|
#32065
BRACKET-FENDER,LH
32065-0002
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#32065A
BRACKET-FENDER,RH
32065-0003
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#35004
FENDER-FRONT,EBONY
35004-0024-H8
|
$197.60 | ||
|
Available to order. Add to View Price |
|||
|
#35004B
FENDER-FRONT,C.L.GREEN
35004-0024-17P
|
|||
|
Unavailable |
|||
|
#35019
FLAP
35019-0047
|
$70.47 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD
39156-0284
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD
39156-0285
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,6MM
92015-1603
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-1286
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0577
|
$28.21 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6MM
92153-0476
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,6X14
92153-0589
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,6X23
92153-1267
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,SOCKET,6X14
92153-1612
Superseded by 92151-1654
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#92153D
BOLT,6X35
92153-1873
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1278
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X14X1
92200-1388
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
