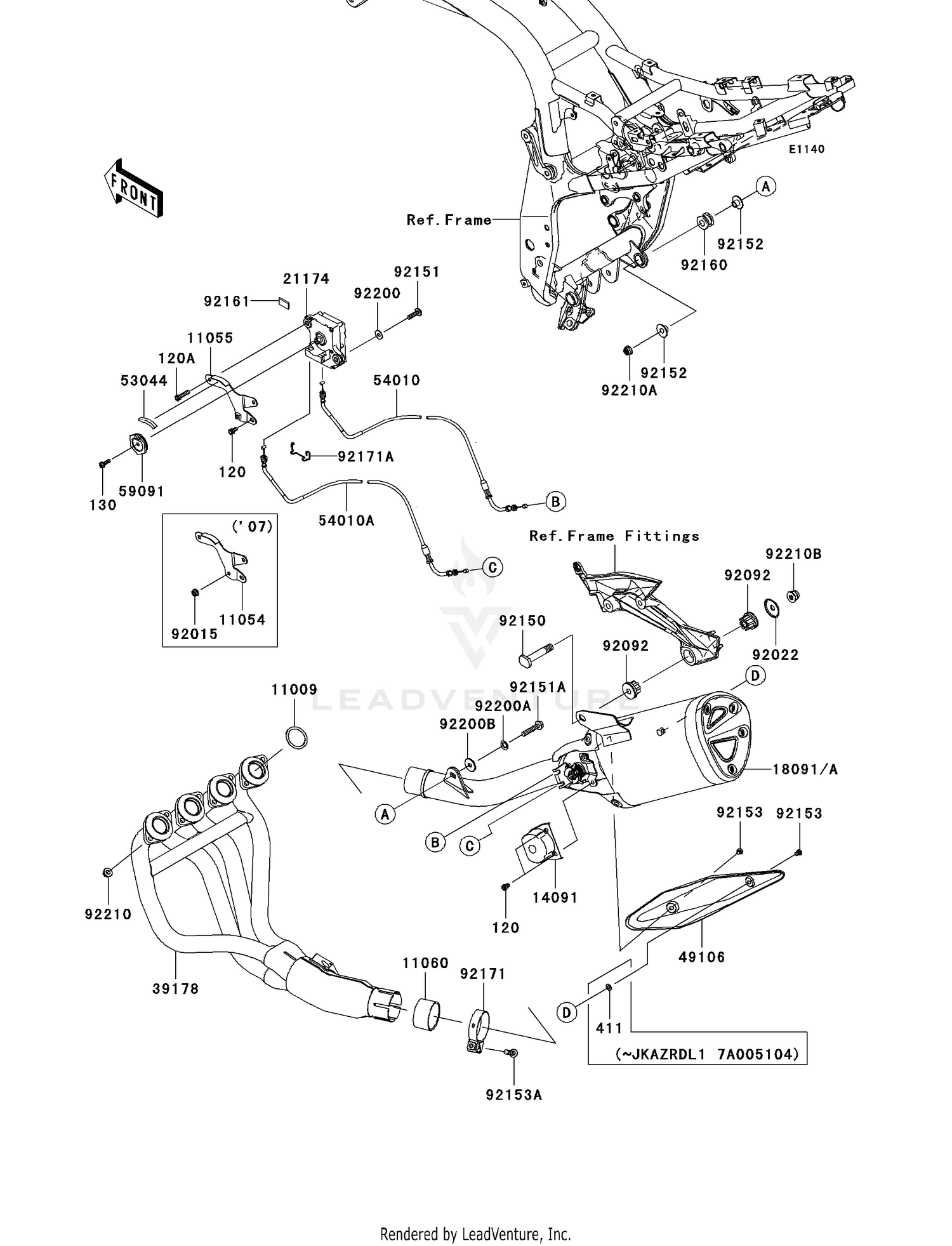

Muffler(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X10
120CB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#120A
BOLT-SOCKET,6X25
120W0625
Superseded by 120CB0625
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X18
130L0518
Superseded by 130BB0518
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411S0600
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,EXHAUST PIPE HOLDER
11009-1856
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#11054
BRACKET,MOTOR
11054-1974
|
$13.89 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,EXHAUST PIPE H
11060-1330
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,PULLEY
14091-0712
|
$40.09 | ||
|
Available to order. Add to View Price |
|||
|
#18091
BODY-COMP-MUFFLER
18091-0474
|
|||
|
Unavailable |
|||
|
#18091A
BODY-COMP-MUFFLER
18091-0483
|
$1,296.26 | ||
|
Available to order. Add to View Price |
|||
|
#21174
MOTOR-ELECTRIC
21174-0003
Superseded by 21174-0005
|
$323.55 | ||
|
Available to order. Add to View Price |
|||
|
#39178
MANIFOLD-COMP-EXHAUST
39178-0086
|
$1,181.88 | ||
|
Available to order. Add to View Price |
|||
|
#49106
COVER-MUFFLER
49106-0069
|
$123.08 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,L=40
53044-0012
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#54010
CABLE,OPEN,WHITE NUT
54010-0083
|
$82.86 | ||
|
Available to order. Add to View Price |
|||
|
#54010A
CABLE,CLOSE,BLACK NUT
54010-0084
|
$82.86 | ||
|
Available to order. Add to View Price |
|||
|
#59091
PULLEY
59091-0007
|
$21.50 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-289
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER,MUFFLER
92092-1087
|
$19.19 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,10X55
92150-1792
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X25
92151-1611
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,8X40
92151-2130
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0188
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X8
92153-0578
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,8X45
92153-0702
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,MUFFLER MOUNT
92160-1116
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-1170
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0133
|
$19.29 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-0292
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0078
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,10X18X1.2
92200-0400
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,8X26X2.3
92200-3780
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,8MM
92210-0121
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,FLANGED,LOCK,8MM
92210-0159
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#92210B
NUT,CAP,10MM
92210-1121
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
