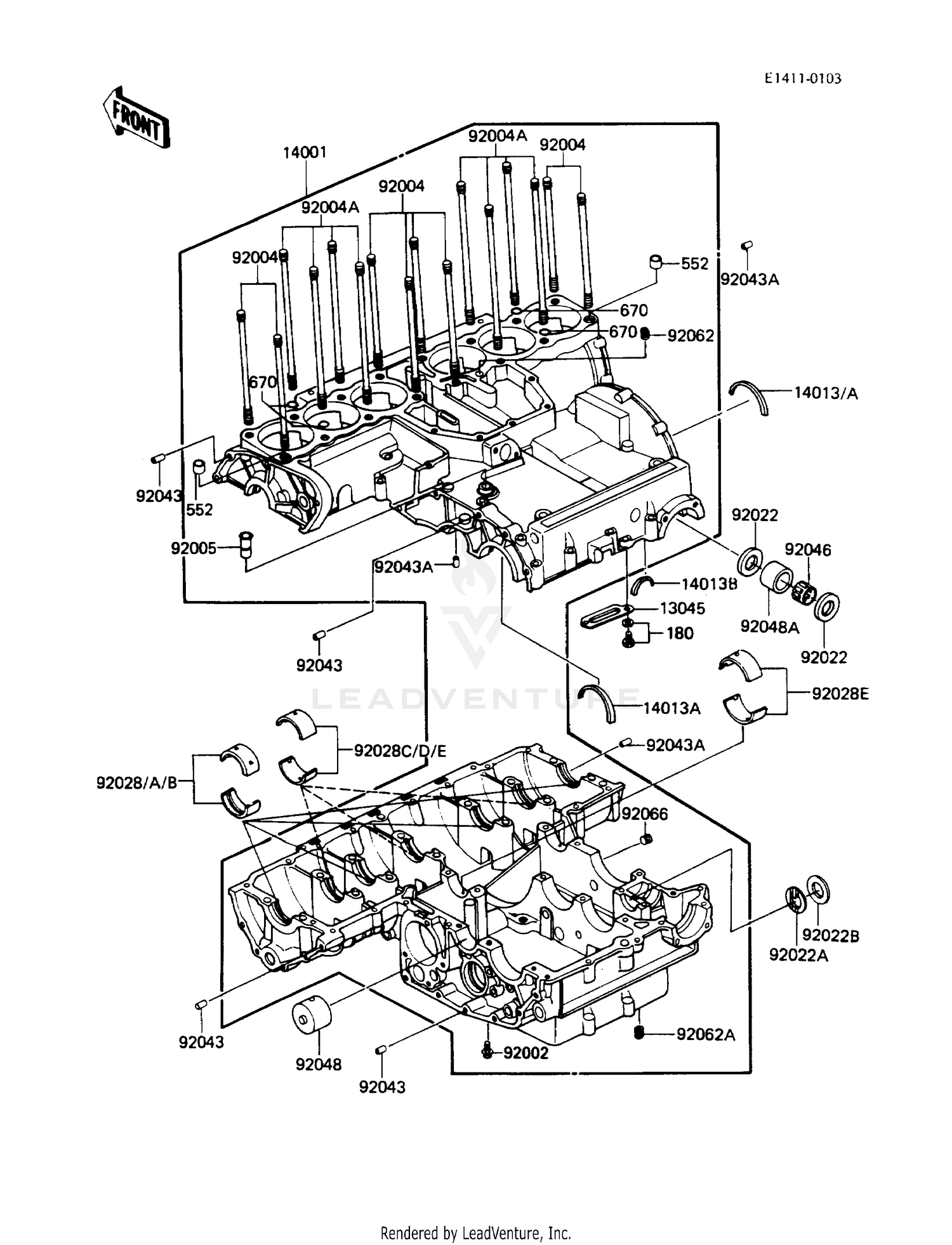

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13045
RECEIVER,OIL
13045-1002
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
14001-5153
|
$1,458.04 | ||
|
Available to order. Add to View Price |
|||
|
#14013
RING-BEARING SET
14013-013
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#14013A
RING-POSITION,T=1.98
14013-1004
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#14013B
RING-POSITION
14013-1007
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,8X95
92002-1077
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X153
92004-062
Superseded by 92004-1232
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#92004A
STUD,10X195
92004-1019
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,BREATHER
14067-006
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,THRUST,20.5MM
92022-1280
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,T=2.2
92022-1388
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,15X28X2.3
92022-1389
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,MAIN JOURNAL
92028-1103
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING,MAIN JOURNAL
92028-1104
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#92028B
BUSHING,MAIN JOURNAL
92028-1105
|
$16.92 | ||
|
Available to order. Add to View Price |
|||
|
#92028C
BUSHING,MAIN JOURNAL
92028-1106
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#92028D
BUSHING,MAIN JOURNAL
92028-1107
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#92028E
BUSHING,MAIN JOURNAL
92028-1108
|
$16.92 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,6X16
92042-016
Superseded by 92043-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,TK2028
92046-1042
|
$33.91 | ||
|
Available to order. Add to View Price |
|||
|
#92048
RACE,DRIVE SHAFT,L.H:
92048-1008
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#92048A
RACE
92048-1018
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE,6X8,BLACK
92062-011
Superseded by 92062-1079
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92062A
NOZZLE,6X8,SILVER
92062-015
Superseded by 92062-1081
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,OIL SWITCH
92066-059
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#180
BOLT-UPSET-WS
180B0616
Superseded by 180AA0616
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#552
PIN,DOWEL,6.5X10X12
552B1012
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,12MM
670B2012
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
