1987 Kawasaki ZN1300A5 VOYAGER Ignition Switch/locks/reflectors OEM Parts

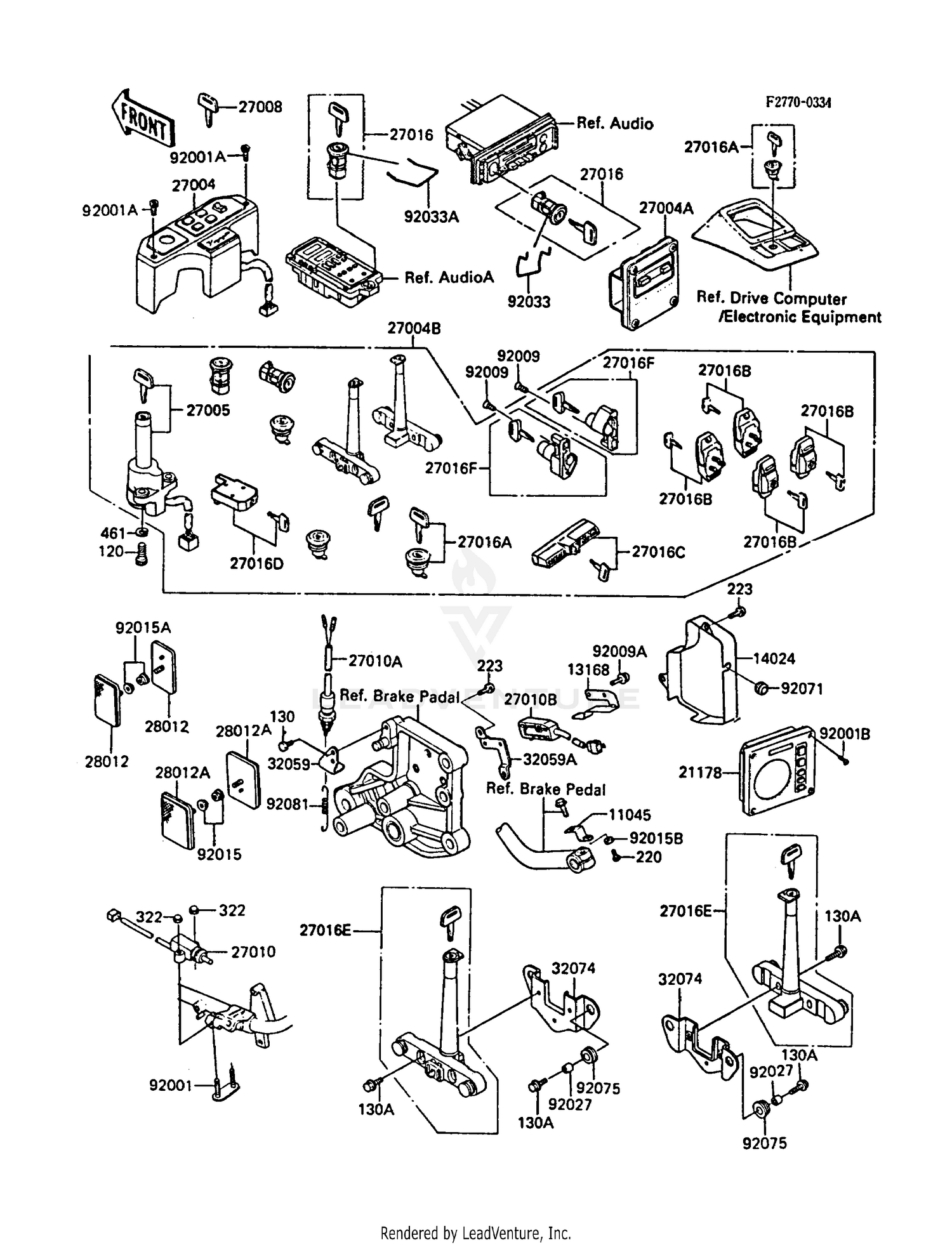

Ignition Switch/locks/reflectors Diagram

Item	MSRP	Qty
#11045 BRACKET,CRUISE CANCEL 11045-1982	$5.56
Available to order. Add to View Price
#13168 LEVER,CRUISE CANCEL S 13168-1364	$62.88
Available to order. Add to View Price
#14024 COVER,CRUISE CANCEL S 14024-1572	$14.44
Available to order. Add to View Price
#21178 CONTROL-SWITCH 21178-1001	$337.50
Available to order. Add to View Price
#27004 SWITCH-ASSY,IGNITION 27004-1012	$210.47
Available to order. Add to View Price
#27004A SWITCH-ASSY,CRUISE CO 27004-1058	$122.03
Available to order. Add to View Price
#27004B SWITCH-ASSY 27004-5214	$901.38
Available to order. Add to View Price
#27005 SWITCH-ASSY-IGNITION 27005-5034	$176.89
Available to order. Add to View Price
#27008 KEY-LOCK,BLANK 27008-1103	$19.59
Available to order. Add to View Price
#27010 SWITCH,SIDE STAND 27010-1151 Superseded by 27010-1189	$75.36
Available to order. Add to View Price
#27010A SWITCH,REAR BRAKE 27010-1181 Superseded by 27010-1475	$29.43
Available to order. Add to View Price
#27010B SWITCH,CRUISE CANCEL 27010-1237	$75.44
Available to order. Add to View Price
#27016 LOCK-ASSY 27016-5061	$113.04
Available to order. Add to View Price
#27016A LOCK-ASSY,DRIVE COMPU 27016-5062 Superseded by 27016-5081	$100.01
Available to order. Add to View Price
#27016B LOCK-ASSY,SIDE BAG 27016-5063	$100.31
Available to order. Add to View Price
#27016C LOCK-ASSY 27016-5064	$490.28
Available to order. Add to View Price
#27016D LOCK-ASSY 27016-5065	$115.78
Available to order. Add to View Price
#27016E LOCK-ASSY,SIDE BAG 27016-5066	$139.78
Available to order. Add to View Price
#27016F LOCK-ASSY,HELMET 27016-5067	$91.76
Available to order. Add to View Price
#28012 REFLECTOR-REFLEX,FR 28012-1009	$25.30
Available to order. Add to View Price
#28012A REFLECTOR-REFLEX,RR 28012-1055	$19.14
Available to order. Add to View Price
#32059 BRACKET-SWITCH 32059-1027	$10.87
Available to order. Add to View Price
#32059A BRACKET-SWITCH,CRUISE 32059-1088	$9.92
Available to order. Add to View Price
#32074 BRACKET-LOCK,SIDE BAG 32074-1102	$11.08
Available to order. Add to View Price
#92001 BOLT,SIDE STAND SWITC 92001-1961	$10.73
Available to order. Add to View Price
#92001A BOLT,SOCKET,5X80 92001-1978	$3.29
Available to order. Add to View Price
#92001B SCREW,SOCKET,4X15 92001-1996 Superseded by 92009-1450	$3.77
Available to order. Add to View Price
#92009 SCREW,5X12 92009-1401	$4.25
Available to order. Add to View Price
#92009A SCREW,4X16 92009-1500	$4.25
Available to order. Add to View Price
#92015 NUT,FLANGED,6MM 92015-1193 Superseded by 92015-1367	$3.59
Available to order. Add to View Price
#92015A NUT,FLANGED,5MM 92015-1259	$3.80
Available to order. Add to View Price
#92015B NUT,4MM 92015-1676	$2.68
Available to order. Add to View Price
#92027 COLLAR,L=11.1 92027-194	$5.34
Available to order. Add to View Price
#92033 RING-SNAP,RADIO CONTR 92033-1097	$6.28
Available to order. Add to View Price
#92033A RING-SNAP,RADIO CONTR 92033-1098	$4.56
Available to order. Add to View Price
#92071 GROMMET HARNESS 10MM 92071-019	$3.77
Available to order. Add to View Price
#92075 DAMPER 92075-277	$2.82
Available to order. Add to View Price
#92081 SPRING,BRAKE SWITCH 92081-1565	$7.34
Available to order. Add to View Price
#120 BOLT-SOCKET,8X22 120T0822 Superseded by 120CA0822	$4.70
Available to order. Add to View Price
#130 BOLT-FLANGED,6X10 130D0610 Superseded by 130AA0610	$0.48
Available to order. Add to View Price
#130A BOLT-FLANGED,6X20 130D0620 Superseded by 130AA0620	$1.69
Available to order. Add to View Price
#220 SCREW-PAN-CROS,4X20 220B0420 Superseded by 220AA0420	$2.59
Available to order. Add to View Price
#223 SCREW-PAN-WS-CROS,5X10 223C0510 Superseded by 223AB0510	$3.99
Available to order. Add to View Price
#322 NUT-CAP,5MM 322C0500 Superseded by 322AB0500	$3.26
Available to order. Add to View Price
#461 WASHER-SPRING,8MM 461L0800 Superseded by 461DA0800	$0.40
Available to order. Add to View Price
