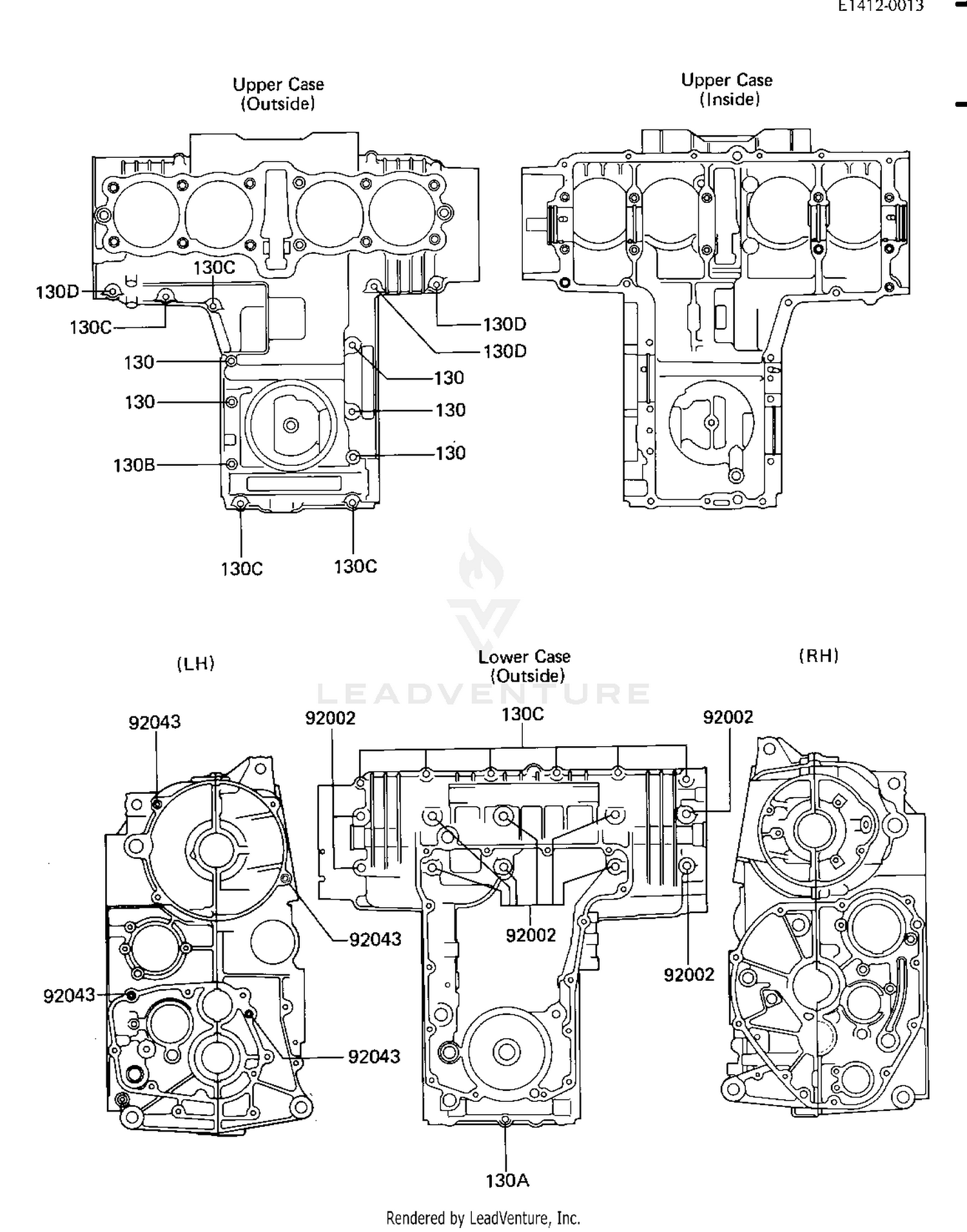

Crankcase Bolt & Stud Pattern Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#92002
BOLT,8X95
92002-1077
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED
130Y06100
Superseded by 130CD06100
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT,6X105
130Y06105
Superseded by 92002-1142
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED
130Y06115
Superseded by 130BD06115
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#130C
BOLT-FLANGED
130Y0640
Superseded by 130BD0640
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#130D
BOLT-FLANGED
130Y0650
Superseded by 130BD0650
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
