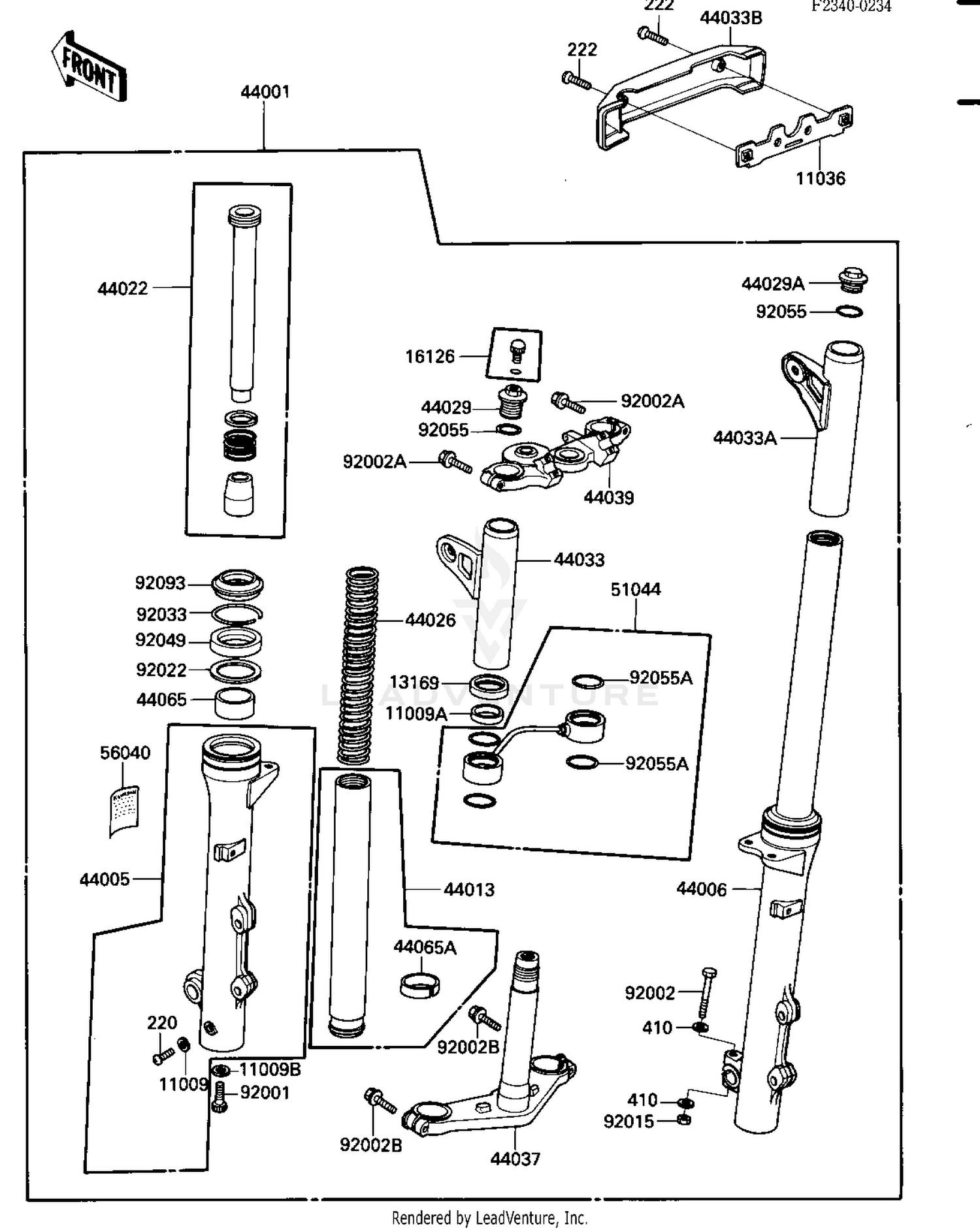

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK COVER
44045-038
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#11036
BRACKET-A,FORK COVER
11036-1320
|
$23.36 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,FORK COVER,LWR
13169-1614
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE AIR
16126-1052
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1534
|
$1,345.01 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1220
|
$275.32 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1220
|
$275.32 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1221
|
$265.03 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1169
|
$115.47 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1279
|
$54.69 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1039
|
$35.12 | ||
|
Available to order. Add to View Price |
|||
|
#44029A
SEAT-FORK SPRING
44029-1111
|
$27.65 | ||
|
Available to order. Add to View Price |
|||
|
#44033
COVER-FORK,LH
44033-1155
|
$86.48 | ||
|
Available to order. Add to View Price |
|||
|
#44033A
COVER-FORK,RH
44033-1156
|
$86.40 | ||
|
Available to order. Add to View Price |
|||
|
#44033B
COVER-FORK,KAWASAKI
44033-1157
|
$24.80 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1160
|
$227.47 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1106
|
$183.11 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK
44065-1016
|
$25.23 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK,IN
44065-1059
|
$20.93 | ||
|
Available to order. Add to View Price |
|||
|
#51044
TUBE-ASSY,AIR,FORK
51044-1061
|
$105.23 | ||
|
Available to order. Add to View Price |
|||
|
#56040
LABEL-WARNING,SHOCKAB
56040-1110
Superseded by 56040-1117
|
$4.90 | ||
|
Unavailable |
|||
|
#92001
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,8X55
92002-1160
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,8X45
92002-1288
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT
92002-1364
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92015-1390
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FRONT FORK
92022-1275
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,FORK OIL
92033-1100
|
$14.41 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK
92049-1193
|
$27.70 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,FORK TOP
92055-1012
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
0 RING,36MM
92055-1140
Superseded by 670B3036
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FRONT FORK
92093-1161
|
$26.79 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220E0408
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#222
SCREW-CSK-RD-CROS
222C0518
Superseded by 222AB0518
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410D0800
Superseded by 410S0800
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
