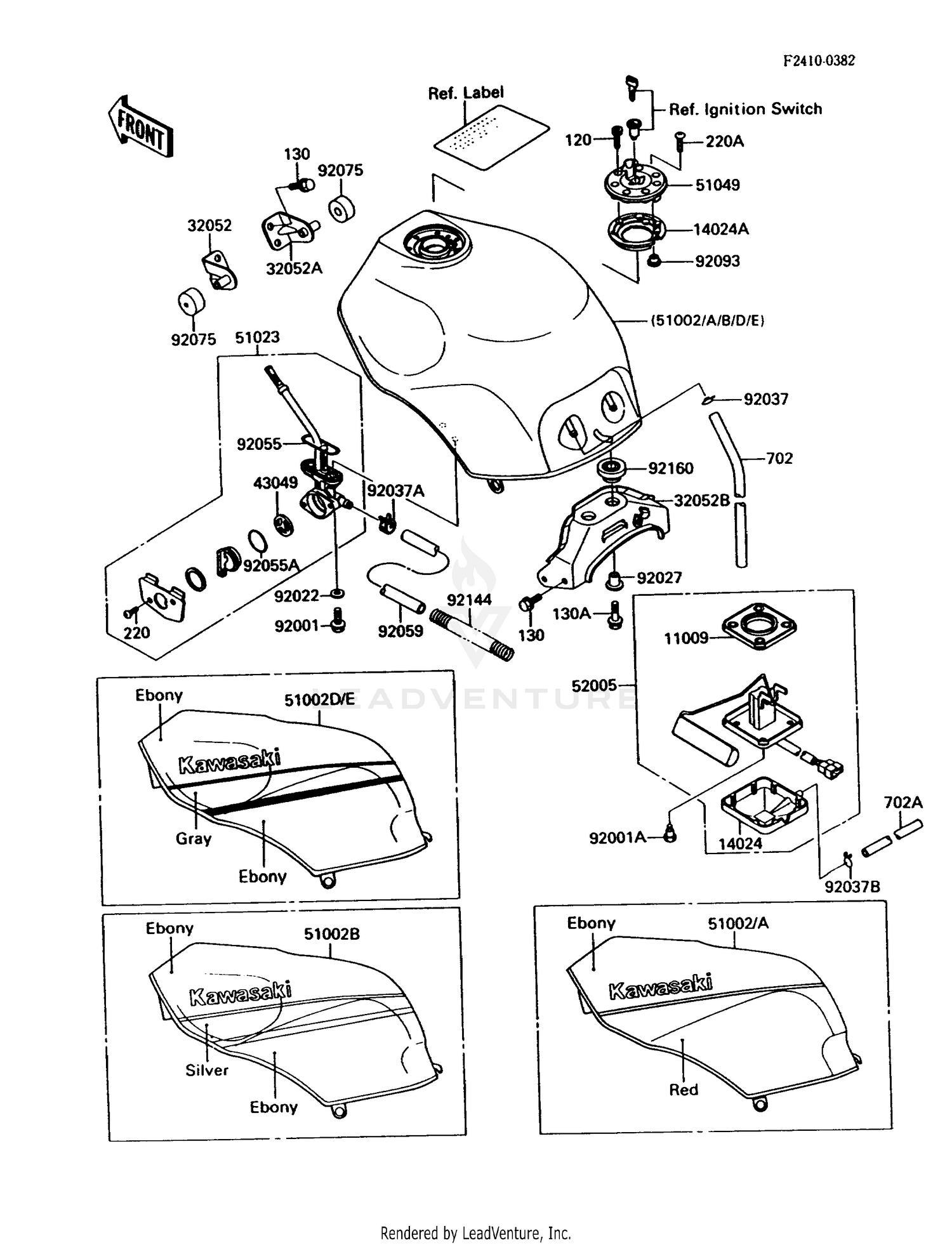

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FUEL GAUGE
11009-1656
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,FUEL GAUGE
14025-1536
Superseded by 14090-1624
|
$16.46 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,TANK CAP
14025-1913
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK,FR,LH
32052-1268
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#32052A
BRACKET-TANK,FR,RH
32052-1269
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#32052B
BRACKET-TANK,RR
32052-1270
|
$33.11 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,TAP VALVE
43049-1066
Superseded by 43049-1091
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#51002D
TANK-COMP-FUEL,EBONY/GRAY
51002-5465-T4
|
$905.68 | ||
|
Available to order. Add to View Price |
|||
|
#51002E
TANK-COMP-FUEL,EBONY/GRAY
51002-5466-T4
|
$1,252.58 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1151
Superseded by 51023-1311
|
$113.10 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1079
Superseded by 51049-0022
|
$127.71 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,FUEL
52005-1090
Superseded by 52005-5022
|
$147.68 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FUEL GAUGE
92001-1705
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=16.1
92027-1847
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HOSE CLIP
92037-1181
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FUEL TAP PACKING
92055-1112
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X14
130J0614
Superseded by 130BB0614
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220C0308
Superseded by 220AB0308
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X8
220C0508
Superseded by 220AB0508
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,7X10X800
702A07400
Superseded by 702A07800
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#702A
TUBE-RUBBER,7X10X800
702A07640
Superseded by 702A07800
|
$9.76 | ||
|
Unavailable |
|||
|
#92055A
RING-O,TAP LEVER
92055-1419
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE
92059-1932
Superseded by 92190-1160
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,FUEL TANK
92075-125
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,HOSE PROTECTOR
92144-1347
Superseded by 92144-1746
|
$13.02 | ||
|
Unavailable |
|||
|
#92160
DAMPER
92160-1046
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
