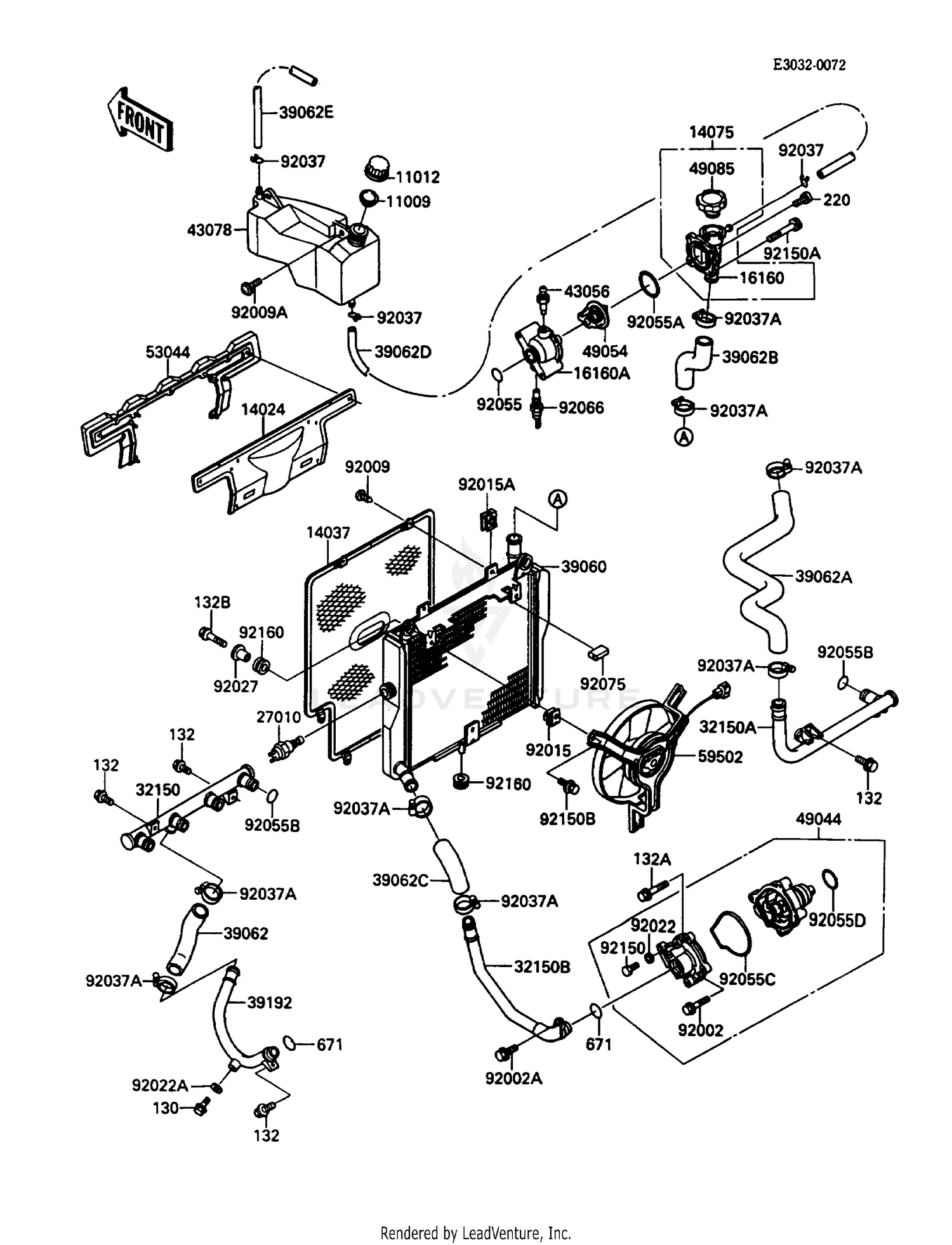

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,RESERVOIR TANK CAP
11009-1145
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,HEAT
14024-1627
|
$41.90 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN
14037-1101
|
$85.40 | ||
|
Available to order. Add to View Price |
|||
|
#14075
BODY,THERMOSTAT,UPP
14075-1068
Superseded by 16160-1116
|
$102.78 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY,THERMOSTAT,UPP
16160-1116
|
$102.78 | ||
|
Unavailable |
|||
|
#16160A
BODY,THERMOSTAT
16160-1147
|
$34.96 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,FAN
27010-1202
|
$94.98 | ||
|
Available to order. Add to View Price |
|||
|
#32150
PIPE,CYLINDER
32102-1919
|
$121.11 | ||
|
Available to order. Add to View Price |
|||
|
#32150A
PIPE,HEAD
32102-1920
|
$103.57 | ||
|
Available to order. Add to View Price |
|||
|
#32150B
PIPE,RADIATOR-PUMP
32102-1921
|
$74.32 | ||
|
Available to order. Add to View Price |
|||
|
#39060
RADIATOR
39060-1081
|
$917.25 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,PUMP-CYLINDER
39062-1276
|
$37.55 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,HEAD-THERMO
39062-1277
|
$75.23 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,THERMO-RADIATOR
39062-1278
|
$20.93 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,RADIATOR-PUMP
39062-1279
|
$24.55 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING,5.5X10.5
39062-1280
Superseded by 39062-0080
|
$36.37 | ||
|
Available to order. Add to View Price |
|||
|
#39062E
HOSE-COOLING
39062-1291
Superseded by 39062-1430
|
$20.93 | ||
|
Available to order. Add to View Price |
|||
|
#39192
PIPE-WATER,PUMP-CYLINDER
39192-1011
|
$71.96 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BLEEDER SET
43056-003
Superseded by 43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-1090
Superseded by 43078-1110
|
$62.06 | ||
|
Available to order. Add to View Price |
|||
|
#49044
PUMP-WATER
49044-1062
Superseded by 49044-1080
|
$283.40 | ||
|
Available to order. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1051
|
$40.10 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1054
Superseded by 49085-1067
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM
53044-1201
|
$50.27 | ||
|
Available to order. Add to View Price |
|||
|
#59502
FAN-ASSY
59502-1067
|
$790.30 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X22
92002-1392
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED-SMALL,6X16
92002-1571
Superseded by 92154-1893
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X12
92009-1261
Superseded by 92172-0003
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X14
92009-1308
Superseded by 92009-1662
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,6MM
92015-1758
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6MM
92022-1976
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=14
92027-1134
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1985
Superseded by 92171-0179
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,27.7X2.4
92055-091
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,53.5X2.6
92055-112
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-1282
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X16
130J0616
Superseded by 130BB0616
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132J0612
Superseded by 132BB0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X40
132J0640
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,8X25
132J0825
Superseded by 132BB0825
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X14
220D0514
Superseded by 220AA0514
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,25MM
671B2525
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,WATER PUMP INSIDE
92055-1423
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#92055D
RING-O,33.2X2.4
92055-1424
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,SENSOR WATER
92066-1183
|
$63.89 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1446
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X10
92002-1391
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT-SOCKET
92150-1071
Superseded by 120CA0555
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,6X12
92150-1186
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1007
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
