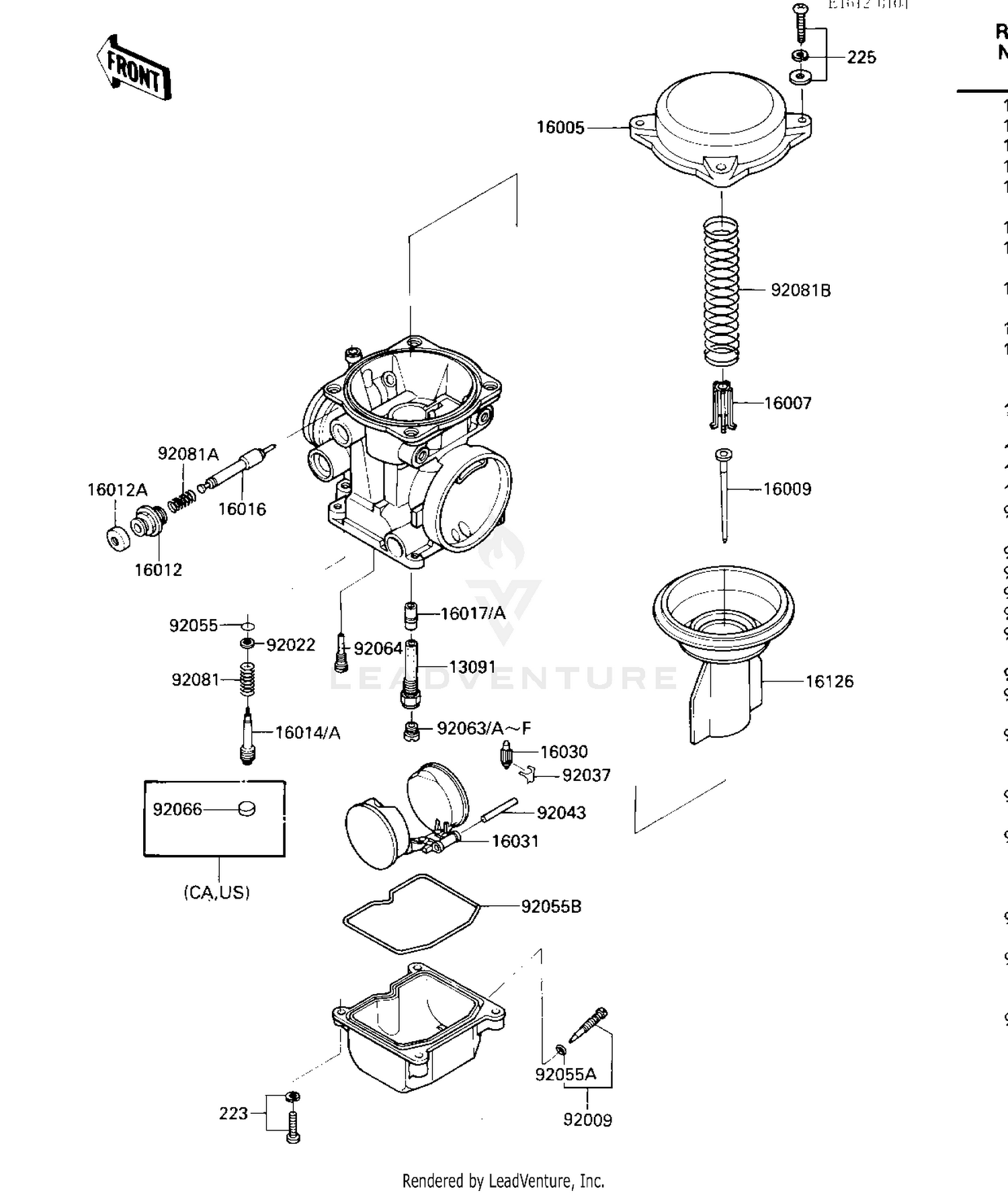

Carburetor Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER
13091-1391
|
$28.19 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP-CHAMBER
16005-1056
|
$66.28 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING
16007-1120
|
$25.30 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,N27L
16009-1270
|
$40.25 | ||
|
Available to order. Add to View Price |
|||
|
#16012
CAP-STARTER PLUNGER
16012-1051
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#16012A
CAP-STARTER PLUNGER
16012-1052
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW,PILOT ADJUST
16014-1029
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#16014A
SCREW-PILOT AIR
16014-1054
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1061
|
$41.74 | ||
|
Available to order. Add to View Price |
|||
|
#16017
16017-1270 (Canada)
16017-1285
|
|||
|
Unavailable |
|||
|
#16017A
JET-NEEDLE
16017-1286
|
$49.49 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1056
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1160
|
$191.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,M6X1.0
92009-1095
Superseded by 92009-1434
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,PLAIN
92022-1003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1148
Superseded by 92043-1207
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,PILOT ADJUST
92055-1002
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1053
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,FLOAT CHAMBER
92055-1222
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN #110
92063-1114
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
MAIN JET,#100
92063-1008
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
MAIN JET,#105
92063-1009
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
MAIN JET,#105
92063-1009
|
$15.20 | ||
|
Unavailable |
|||
|
#92063D
JET-MAIN,#102
92063-1115
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#108
92063-1116
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#108
92063-1116
|
$14.26 | ||
|
Unavailable |
|||
|
#92063F
JET-MAIN,#112
92063-1117
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063F
JET-MAIN,#112
92063-1117
|
$14.26 | ||
|
Unavailable |
|||
|
#92064
JET-PILOT,#38
92064-1119
|
$18.37 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PILOT ADJUST SCREW
92081-1002
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,STARTER PLUNGER
92081-1761
|
$9.03 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,VACUUM VALVE
92081-1912
|
$24.89 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X16
223C0416
Superseded by 223AB0416
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#225
SCREW-PAN-WSP-CROS
225C0418
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
