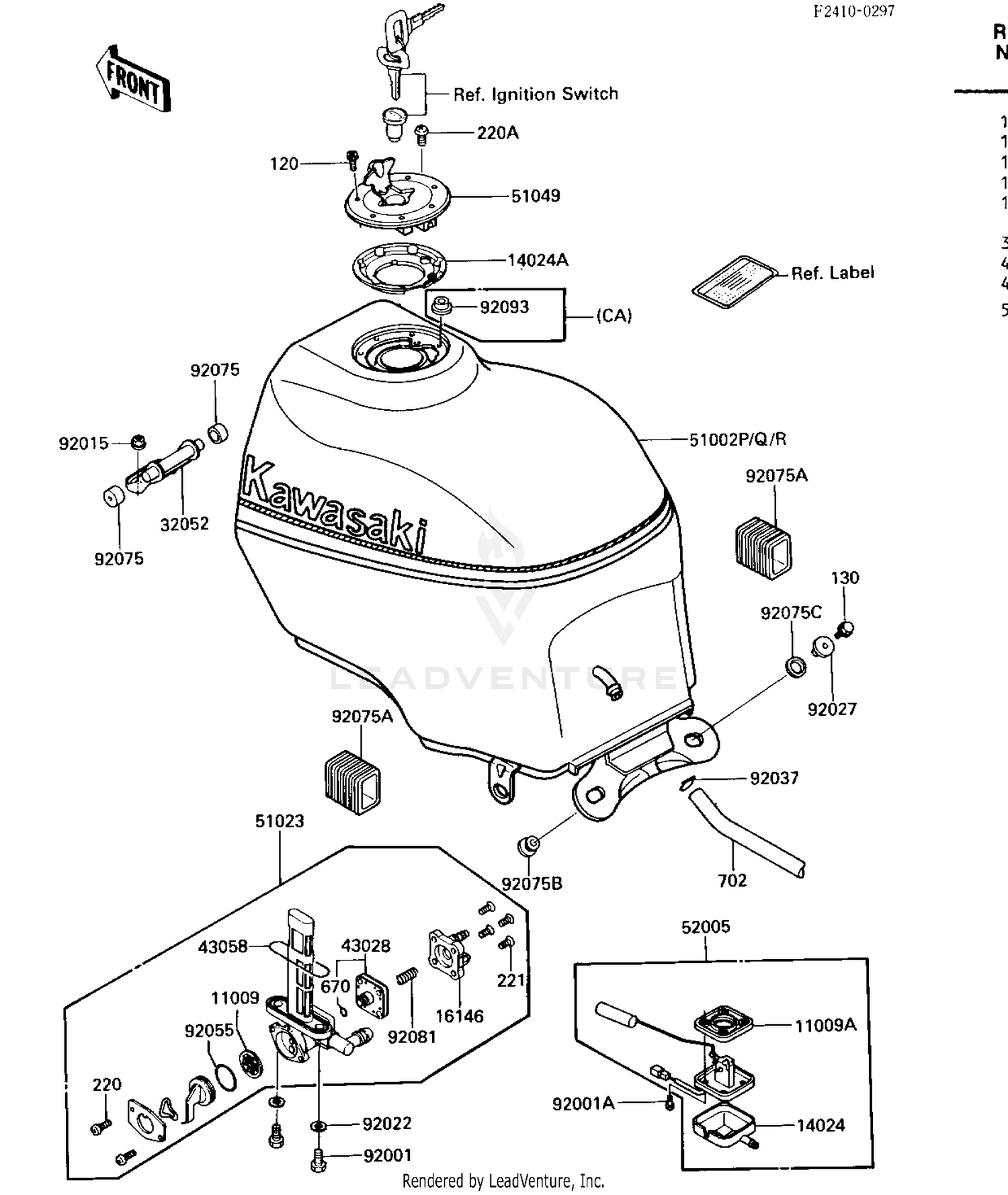

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
PACKING
11009-1188
Superseded by 43049-1103
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FUEL GAUGE
11009-1656
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,FUEL GAUGE
14025-1536
Superseded by 14090-1624
|
$16.46 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,TANK CAP
14025-1913
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#16146
COVER ASSY,FUEL TAP
16146-1009
|
$17.88 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK
32052-1202
|
$40.84 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1033
|
$22.08 | ||
|
Available to order. Add to View Price |
|||
|
#43058
DIAPHRAGM
43028-1033
|
$22.08 | ||
|
Unavailable |
|||
|
#51002P
TANK-COMP-FUEL,RED/GR
51002-5306-X5
|
$738.65 | ||
|
Available to order. Add to View Price |
|||
|
#51002Q
TANK-COMP-FUEL,RED/GR
51002-5307-X5
|
$583.57 | ||
|
Available to order. Add to View Price |
|||
|
#51002R
TANK-COMP-FUEL,BLUE/WHITE (Can
51002-5308-X7
|
|||
|
Unavailable |
|||
|
#51023
TAP-ASSY,FUEL
51023-1186
Superseded by 51023-1384
|
$135.09 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1079
Superseded by 51049-0022
|
$127.71 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,FUEL
52005-1071
Superseded by 52005-5018
|
$130.87 | ||
|
Unavailable |
|||
|
#92001
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FUEL GAUGE
92001-1705
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1085
Superseded by 92055-3722
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,FUEL TANK,FR
92075-1115
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,FUEL TANK
92075-1700
|
$16.58 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,MALE
92075-174
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER,FEMALE
92075-175
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,DIAPHRAGM VALV
92081-1240
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,3X8
220B0308
Superseded by 220AA0308
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X8
220C0508
Superseded by 220AB0508
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,4X14
221B0414
Superseded by 221AA0414
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,4MM
670B1504
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,7X10X800
702A071000
Superseded by 702A07800
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
