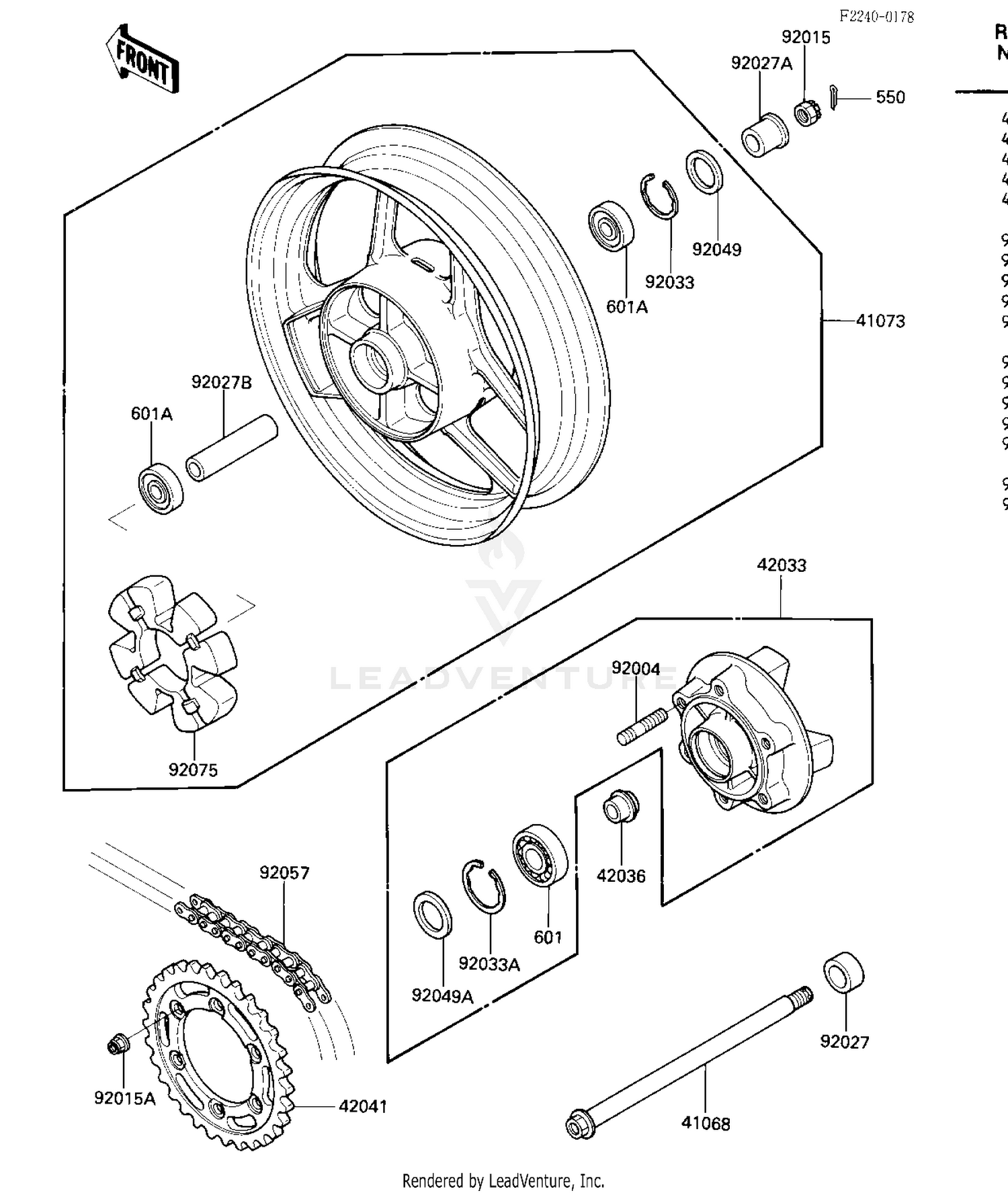

Rear Wheel/hub/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41068
AXLE,RR
41068-1192
|
$68.29 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,WHITE N
41073-1310-T6
|
$558.20 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-1114
Superseded by 42033-1215
|
$222.88 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=26
42036-1149
|
$32.40 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,39T
42041-1287
|
$77.85 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X24
92004-1146
Superseded by 92004-0029
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
42045-014
Superseded by 92015-1947
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,FLANGED,10MM
92015-1502
Superseded by 92210-1080
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,RR AXLE,L=20
92027-1874
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,RR AXLE,L=28
92027-1875
|
$26.38 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,L=106
92027-1876
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN28475
92049-1056
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92057
DR CHAIN EK50KVDO 102
92057-1189
|
$503.67 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SHOCK,RR HUB
92075-1687
|
$76.06 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING BALL #6205
601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BRG,BALL,#6303ZZC3
601B6303ZZ
|
$38.83 | ||
|
Available to order. Add to View Price |
|||
