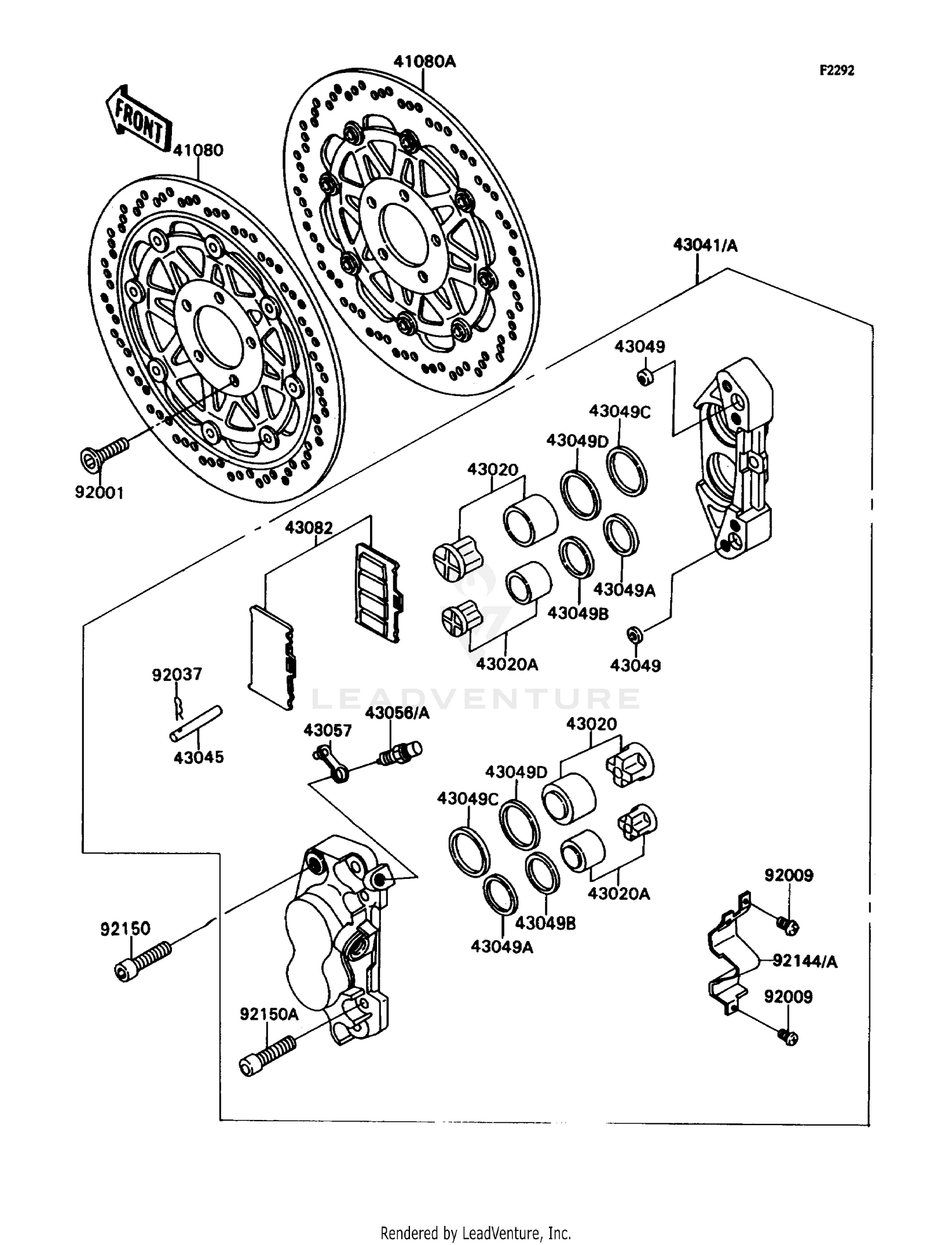

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41080
DISC,FR,LH,GOLD NO.1
41080-1284-CN
Superseded by 41080-1318-CN
|
$514.80 | ||
|
Available to order. Add to View Price |
|||
|
#41080A
DISC,FR,RH,GOLD NO.1
41080-1285-CN
Superseded by 41080-1319-CN
|
$514.80 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1085
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#43020A
PISTON-COMP-BRAKE
43020-1086
|
$71.42 | ||
|
Available to order. Add to View Price |
|||
|
#43041
CALIPER-ASSY,FR,LH,GOLD
43041-1310-DK
Superseded by 43041-1398-DK
|
$539.08 | ||
|
Available to order. Add to View Price |
|||
|
#43041A
CALIPER-ASSY,FR,RH,GOLD
43041-1311-DK
|
$343.72 | ||
|
Available to order. Add to View Price |
|||
|
#43045
SHAFT-CALIPER
43045-007
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,SEAL,6.5X11.5X2.2
43049-1004
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING,PISTON SEAL
43049-1054
Superseded by 43049-1096
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#43049B
PACKING,PISTON
43049-1055
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#43049C
PACKING,PISTON SEAL
43049-1056
Superseded by 43049-1095
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#43049D
PACKING,PISTON
43049-1057
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BLEEDER SET
43056-003
Superseded by 43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#43056A
BLEEDER SET
43056-1054
Superseded by 43085-001
|
$23.70 | ||
|
Unavailable |
|||
|
#43057
CAP-BREATHER
43057-003
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE
43082-1097
Superseded by 43082-1111
|
$63.68 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,SOCKET,8X30
92001-1951
Superseded by 92154-1865
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009
BOLT,SOCKET,4X6
92009-1569
Superseded by 92009-1758
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,PAD
43084-003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1399
Superseded by 92145-1263
|
$29.64 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,COVER
92144-1400
Superseded by 92145-1366
|
$24.39 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,10X37
92150-1261
|
$10.74 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT
92150-1272
Superseded by 92150-1973
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
