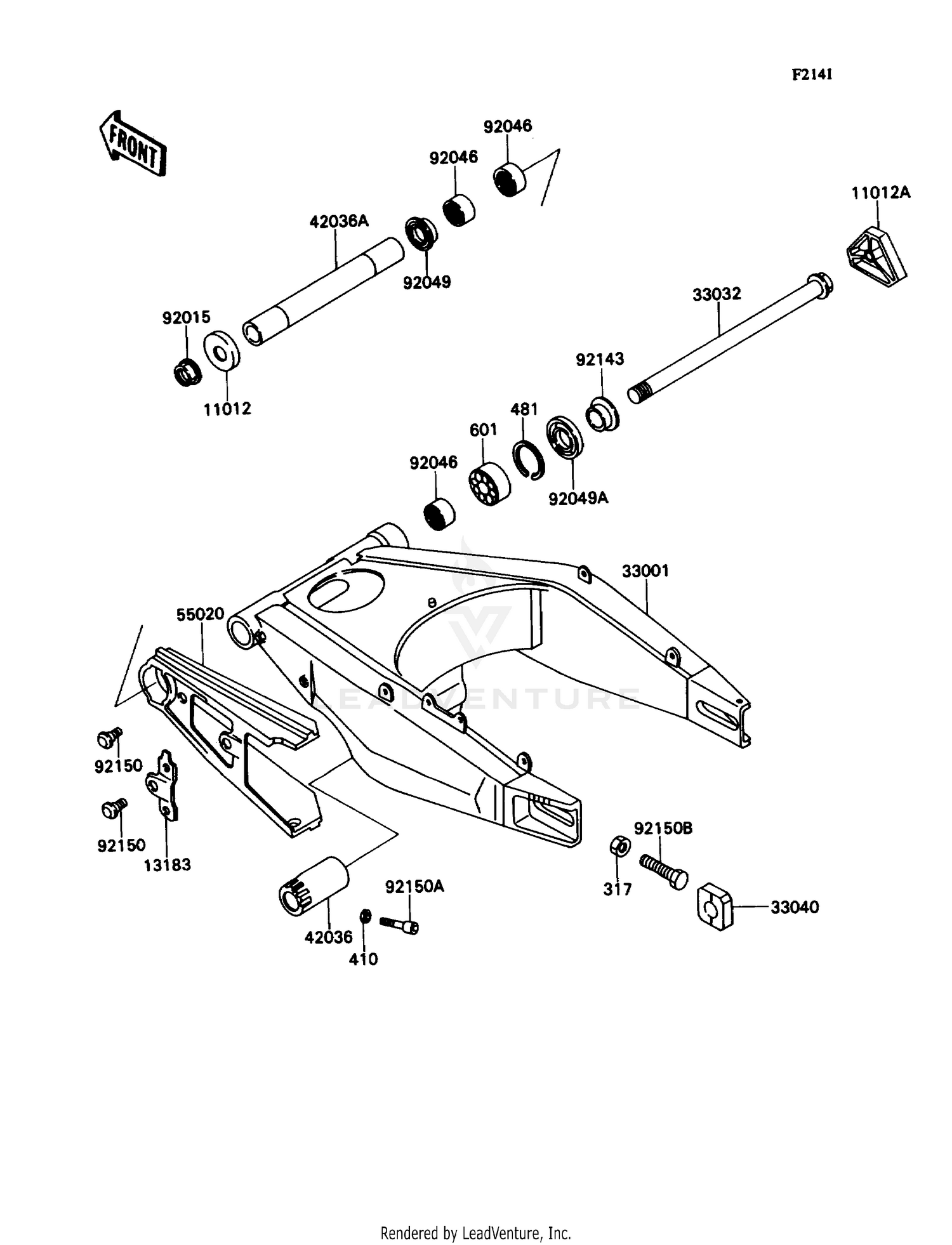

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1658
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP
11012-1741
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE,CHAIN GUARD
13183-1598
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING,SILVER NO.25
33001-1358-CE
|
$971.52 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-1158
|
$76.76 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER-CHAIN
33040-1109
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,SWING ARM,L=84
42036-1253
|
$81.32 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE,SWING ARM,L=237
42036-1268
|
$101.16 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,CHAIN
55020-1373
|
$61.50 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,20MM
92015-1724
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BM2817
92046-1111
|
$21.08 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,28X34X5.7
92049-1181
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MHSA25X42X6
92049-1314
|
$13.26 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,SWING ARM,L=12.5
92143-1227
Superseded by 92152-1234
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6MM
92150-1193
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,SOCKET,10X25
92150-1267
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,8X55
92150-1350
Superseded by 92153-1407
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317G0800
Superseded by 317BA0800
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,10MM
410E1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#481
RING-SNAP,42MM
481J4200
Superseded by 92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6004
601A6004
Superseded by 92045-0076
|
$15.55 | ||
|
Available to order. Add to View Price |
|||
