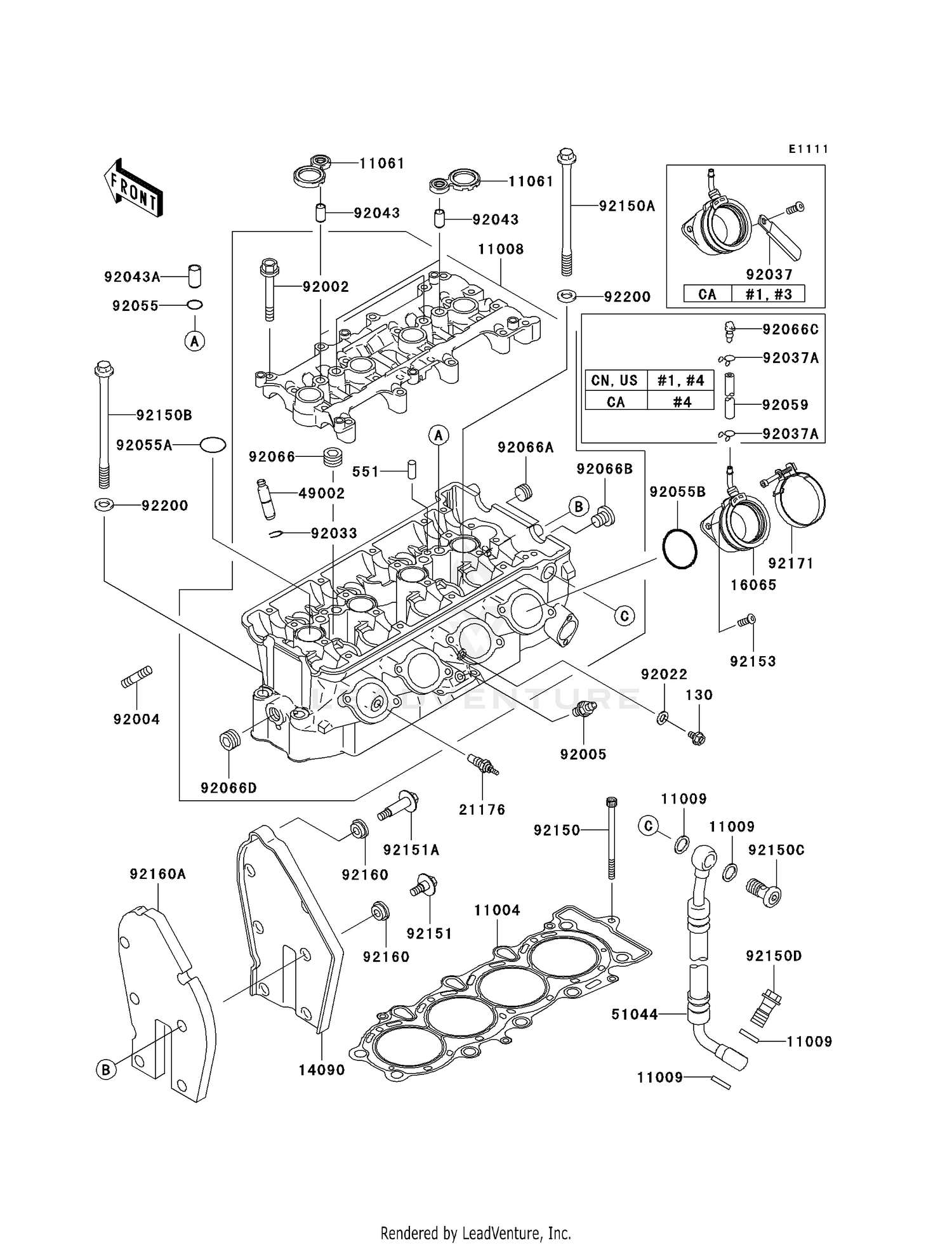

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11004
GASKET-HEAD
11004-1348
|
$93.52 | ||
|
Available to order. Add to View Price |
|||
|
#11008
HEAD-COMP-CYLINDER
11008-1397
|
$2,147.63 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,14X19.5X1.4
11009-1461
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,BEARING CAP
11061-0042
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER
14090-1900
|
$75.36 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1375
|
$39.89 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR
21176-1075
|
$57.35 | ||
|
Available to order. Add to View Price |
|||
|
#49002
GUIDE-VALVE
49002-1144
|
$35.87 | ||
|
Available to order. Add to View Price |
|||
|
#51044
TUBE-ASSY,OIL
51044-1179
|
$144.49 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X40
92002-1756
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,8X22
92004-0025
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-1273
|
$22.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1247
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1712
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,8.2X10X14
92043-1264
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,11.7X1.4
92055-0073
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,25.5X2
92055-0074
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,42X1.9
92055-1536
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,4X9X935,WHITE
92059-1058
Superseded by 92059-1916
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PT1/2X12.5
92066-0002
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,PT1/8X7
92066-1227
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#92066B
PLUG,PT1/4X8.9
92066-1260
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92066C
PLUG
92066-1347
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#92066D
PLUG
92066-1420
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1928
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,L=148
92150-1934
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT
92150-1935
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#92150C
BOLT
92150-1944
|
$11.06 | ||
|
Available to order. Add to View Price |
|||
|
#92150D
BOLT
92150-1945
|
$16.70 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,L=17
92151-1299
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,6X34
92151-1836
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X10
130Y0610
Superseded by 130BD0610
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,6X12
551A0612
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,TORX,6X14
92153-0406
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1681
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1894
|
$36.89 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1155
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,10.5X19X2.3
92200-1042
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
