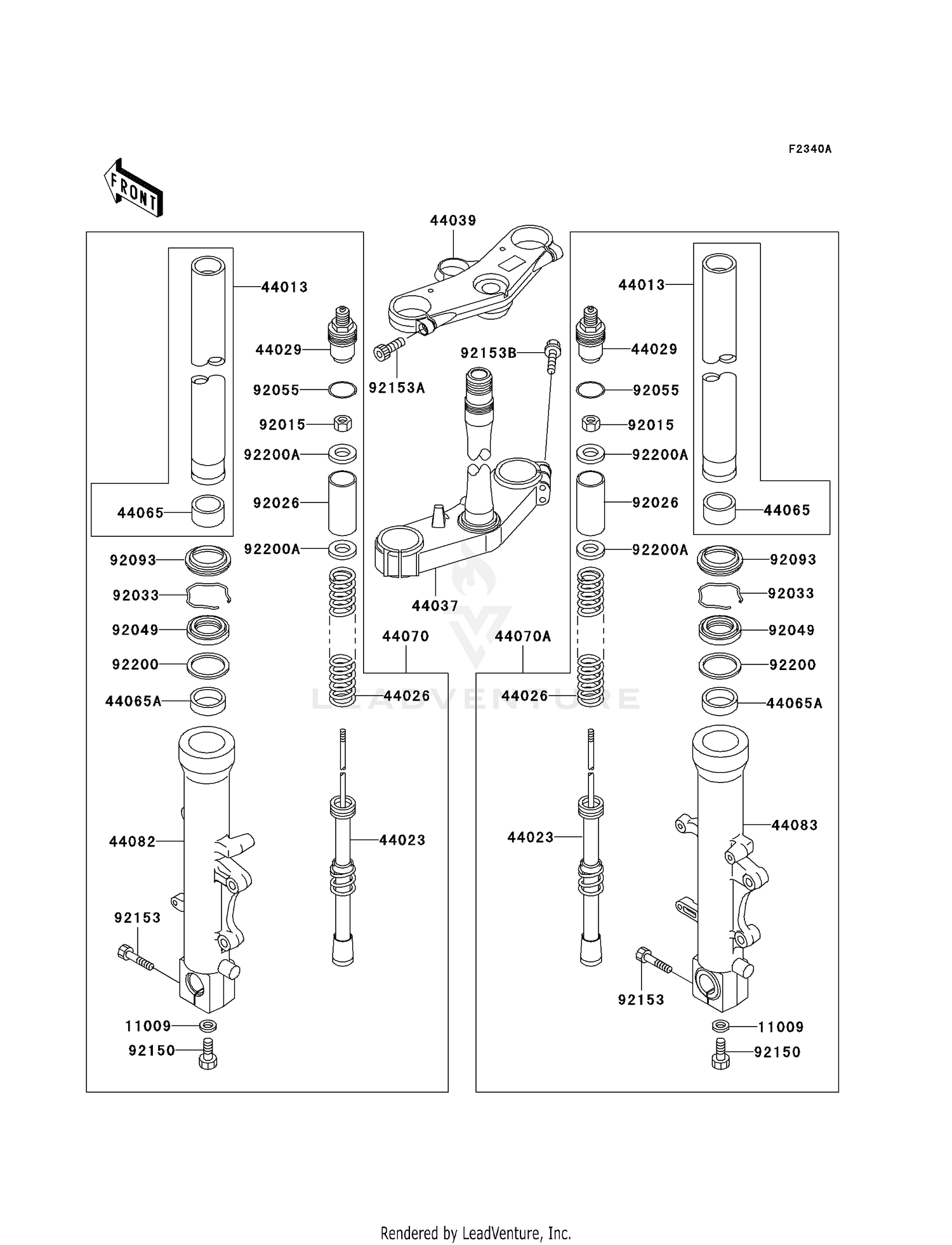

Front Fork (j7f/j8f) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1473
|
$393.97 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-1149
|
$438.16 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1765
|
$70.51 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1173
|
$125.31 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1438
|
$373.72 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1329
|
$278.35 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK
44065-1129
|
$19.97 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK
44065-1130
|
$19.97 | ||
|
Available to order. Add to View Price |
|||
|
#44070
DAMPER-ASSY,FORK,LH
44070-1962
|
$1,033.97 | ||
|
Available to order. Add to View Price |
|||
|
#44070A
DAMPER-ASSY,FORK,RH
44070-1963
|
$1,033.97 | ||
|
Available to order. Add to View Price |
|||
|
#44082
PIPE-COMP-LEFT FORK O
44082-1069
|
$430.56 | ||
|
Available to order. Add to View Price |
|||
|
#44083
PIPE-COMP-RIGHT FORK
44083-1066
|
$430.56 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1905
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1578
|
$21.52 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1264
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1508
|
$22.18 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,36MM
92055-1140
Superseded by 670B3036
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1473
|
$21.48 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,12X22
92150-1398
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X40
92153-1178
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,8X25
92153-1179
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,FLANGED,8X40
92153-1193
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1006
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-1420
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
