2020 KTM 250 SX Exhaust System OEM Parts

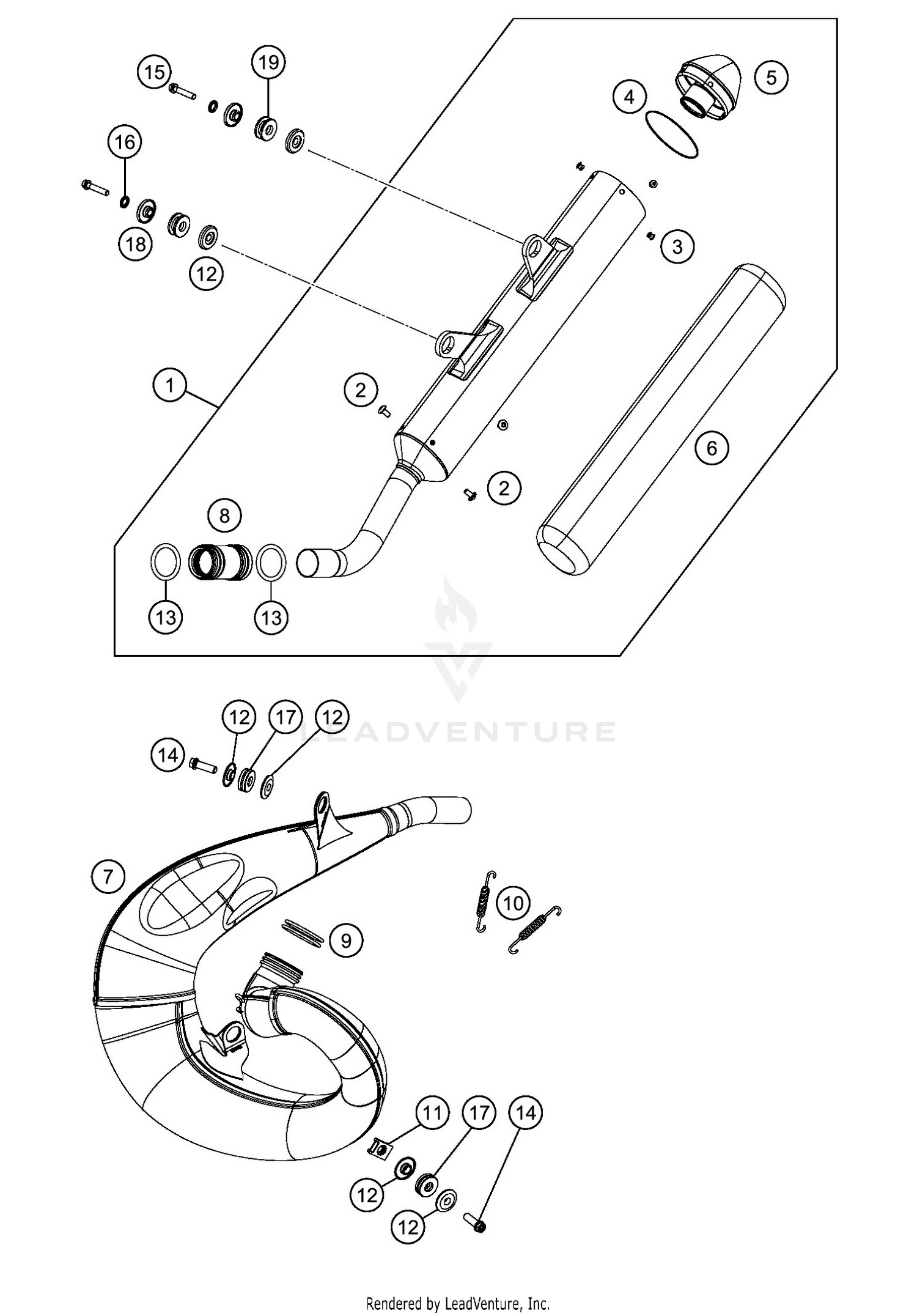

Exhaust System Diagram

Item	MSRP	Qty
#1 Silencer SX 55505079000 Superseded by 55505079100	$700.36
Available to order. Add to View Price
#2 SCREW TORX M5X10 78105081010	$2.41
Available to order. Add to View Price
#3 DUMMY RIVET 4,8X 8 NIRO 0011480800	$3.62
Available to order. Add to View Price
#4 O-RING 74,00X1,50 FKM 75SH 0770740015	$4.83
Available to order. Add to View Price
#5 End Cap cpl. 55505079060	$98.55
Available to order. Add to View Price
#6 Damping material 210g 55505078210	$100.42
Available to order. Add to View Price
#7 Mainfold 55505007000 Superseded by 55505007100	$688.59
Available to order. Add to View Price
#8 exhaust rubber 55405057000	$18.91
Available to order. Add to View Price
#9 O-RING 44,00X3,00 VITON 0770440030	$4.83
Available to order. Add to View Price
#10 Tension spring L=65mm 50305016000 Superseded by A46005016000	$5.38
Unavailable
#11 RANGE CHANGE METAL NUT M8 54603048000	$4.83
Available to order. Add to View Price
#12 BUSHING 8.5x12x28x8.3 77805069000	$7.03
Available to order. Add to View Price
#13 hose spring 55405058000	$3.62
Available to order. Add to View Price
#14 HH collar screw M8x25 0025080256	$2.41
Available to order. Add to View Price
#15 HH collar screw M6x30 TX30 0025060306	$3.62
Available to order. Add to View Price
#16 PAIR OF WASHERS M 6 NORDLOCK 50233041000	$4.83
Available to order. Add to View Price
#17 Damper gray 79105068000	$9.45
Available to order. Add to View Price
#18 BUSHING 7.5x12x28x8.3 11 77205169000	$7.14
Available to order. Add to View Price
#19 DAMP. COMPON. BLACK 77205068000	$7.69
Available to order. Add to View Price
