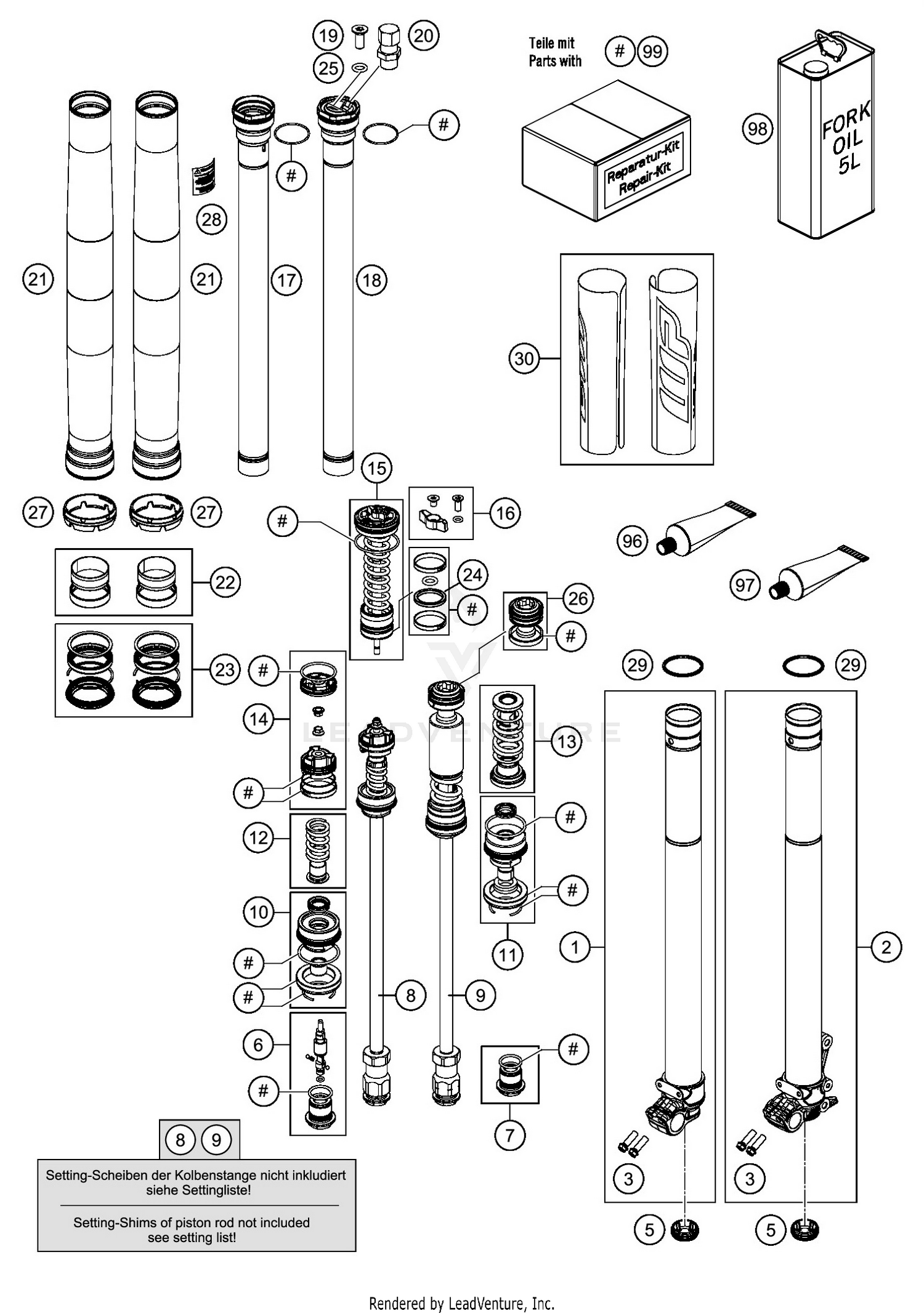

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK LEG R/S + TUBE CPL.
48601408S2
|
$571.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK LEG L/S + TUBE CPL.
48601407S2
|
$571.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Rubber cap 26,4x11
48600692
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
Adjustment screw slot M20x1 cpl.
48601484S
|
$49.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M20x1x18 cpl.
48601533S
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
Pistonrod D12 M9x1 L385 cpl.
48601574S4
|
$324.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
Piston Rod left kpl. M12x1
48601501S1
|
$401.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw sleeve M35,5 x 0.8 cpl.
48601462S1
Superseded by 48601462S2
|
$81.61 | ||
|
Unavailable |
|||
|
#11
Screw sleeve M35,5x0,8 cpl.
48601452S1
Superseded by 48602138S2
|
$56.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spring (13,9) 37-32 rebound cpl.
48600578S
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
Spring (22) 60-30 rebound cpl.
48601820S
|
$30.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
Repair kit piston air fork
RP10024
|
$65.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
Basevalve cpl.
48602049S
Superseded by 48602049S5
|
$187.98 | ||
|
Unavailable |
|||
|
#16
Adjuster kit screw cap compression
RP10025
Superseded by RP10025T
|
$3.84 | ||
|
Unavailable |
|||
|
#17
Schraubdeckel M51x1,5 kpl.
48602048S1
|
$267.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
screw cap M51x1,5 cpl.
48602047S1
|
$119.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
ISA countersunk head screw M4x8 acc draw
00600003
Superseded by 00700007
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE M8X1 INCL. SCREW CAP
48601494S
|
$62.36 | ||
|
Available to order. Add to View Price |
|||
|
#21
fork outer tube 49.13x577 dt54 db60
48601671
Superseded by 48602096
|
$302.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
Guide bushing set fork 48mm
R14047
Superseded by R14047T
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
Seal kit 48mm SKF black
RP10012
Superseded by RP10048T
|
$78.53 | ||
|
Unavailable |
|||
|
#24
X-ring 26,57x3,53 FKM80
04100002
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-ring 4x1,5 NBR70
50180222
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
Piston 33,6x35,4 cpl.
48601628S
Superseded by 48602135S
|
$61.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
Fork protection ring 60,1mm
48601948
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#28
Sticker warning 40x40
52000158
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#29
Stroke indicator 48mm red
48602007
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#30
Sticker set XACT 5 AER CC 182.5x238
52000235SET
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#96
Fuchs grease IPR (250g)
T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#97
special grease AER Fork 400g
00062010053
|
$99.54 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Sealing kit
R14060
Superseded by R14060T
|
$90.63 | ||
|
Unavailable |
|||
