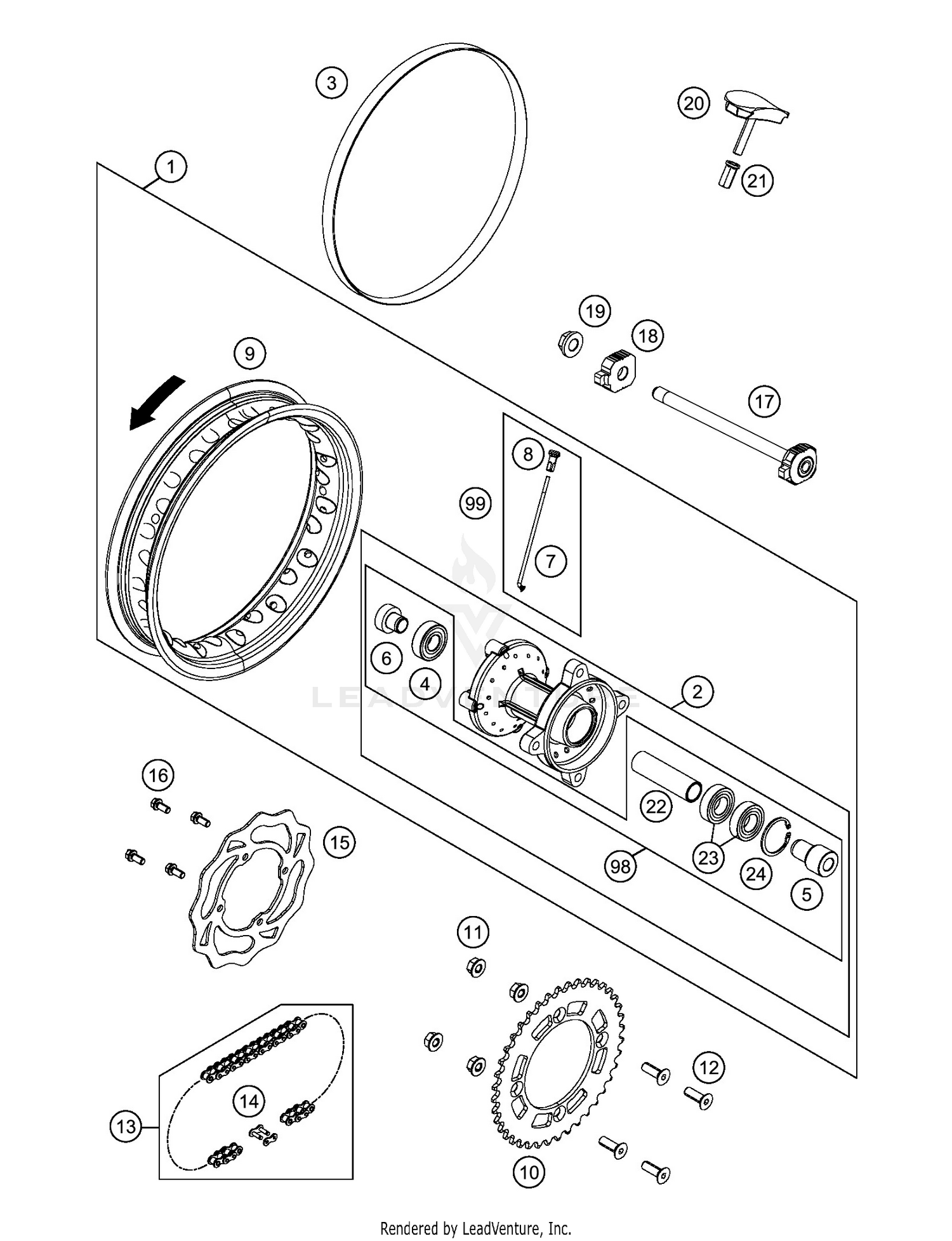

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rear wheel 1.6x10"" cmpl.
45310001044
Superseded by A40010101144
|
$796.94 | ||
|
Unavailable |
|||
|
#2
REAR WHEEL HUB CPL. 50SX 2015
45210010144
|
$360.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM BAND 10'' 22MM
45009073000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALL BEARING 6202-2RSH/C3
0625062028
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER BUSHING LEFT 2015
45210013100
|
$23.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER BUSHING REAR R/S
45210014000
|
$23.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPOKE 3X101 C.113°
45210071101
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPOKE NIPPLE ALU
46210072000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
"Rear rim 1,6x10"""
4521007020033
|
$207.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET 38-T 50SX ´13
45210151038
|
$44.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET 39-T 50SX ´13
45210151039
|
$44.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET 40-T 50SX ´13
45210151040
|
$44.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET 41-T 50SX ´13
45210151041
|
$44.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET 42-T 50SX ´13
45210151042
|
$44.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
SELF LOCKING NUT M8 10.9
54310086200
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
RACING CHAIN 1/2X3/16'' 50 SX
45110265104
|
$47.99 | ||
|
Unavailable |
|||
|
#14
CONNECTING LINK 1/2X3/16'' 90RS
45110266000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRAKE DISC FRONT JUN/SEN 09
45209060000
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
Rear wheel spindle cmpl.
45410085044
|
$75.23 | ||
|
Available to order. Add to View Price |
|||
|
#18
Chain tension adjuster right
45410084000
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#19
Collar nut, M12x1, right
49030021000
Superseded by 49030021100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
RIM LOCK CPL. 2004
45110090000
|
$36.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT FOR WHEEL HOLDER
77110090050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING DISTANCE TUBE 2015
45210011100
|
$19.57 | ||
|
Available to order. Add to View Price |
|||
|
#23
GR.BALL BEAR. 6003-2RSH/C3HMTF
0625060037
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP DIN0472-35X1,5
0472035150
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#98
REAR WHEEL REP. KIT 50 SX 15
45210015100
|
$132.54 | ||
|
Available to order. Add to View Price |
|||
|
#99
SPOKE KIT REAR 10'' '14
00050000969
|
$77.76 | ||
|
Available to order. Add to View Price |
|||
