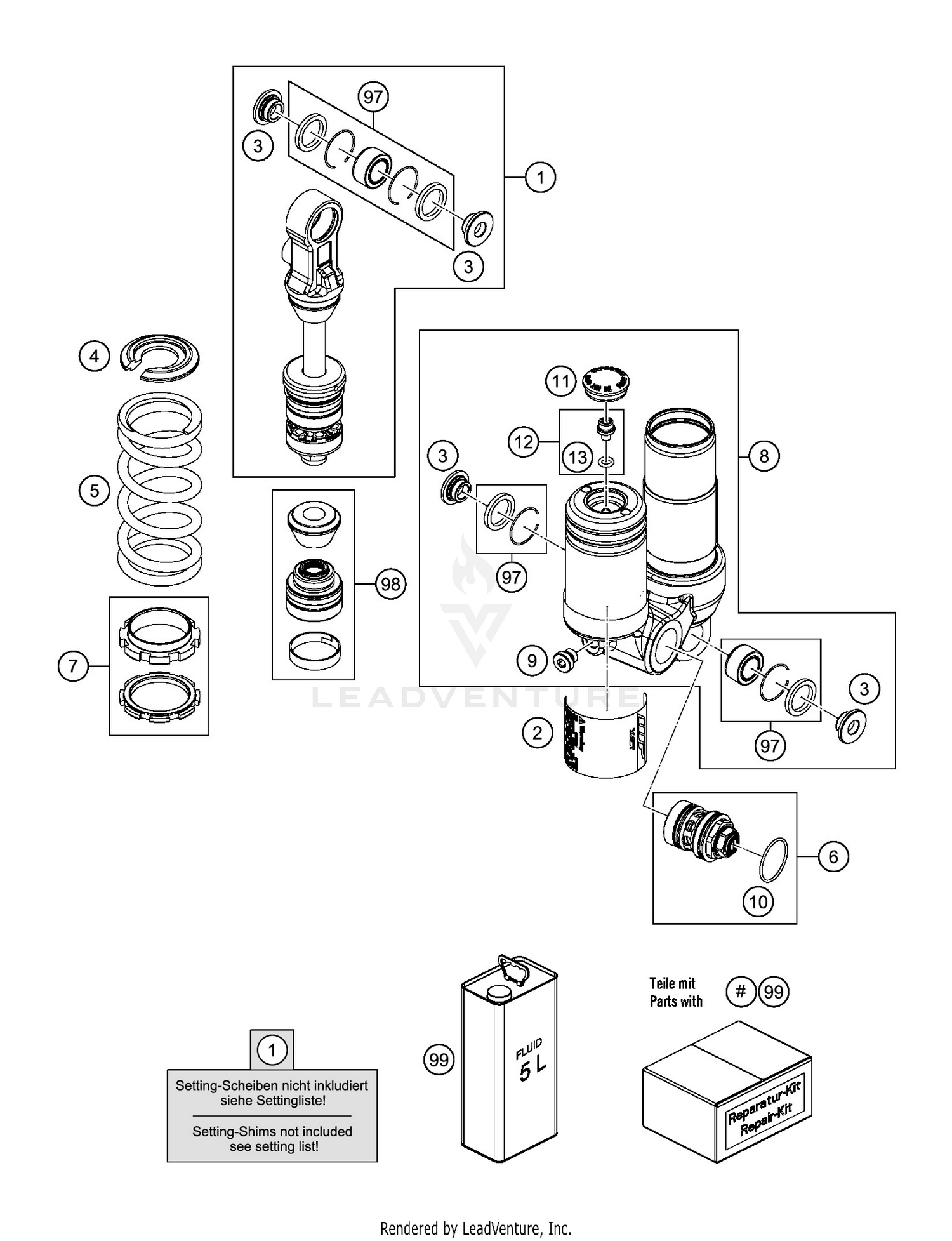

Shock Absorber Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
bottom part cpl.
36120781S17
|
$409.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
sticker XACT 90x40
52000263
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
Distance bush 10x15/18/24,5x9,5
46180009
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spring retainer 27x57x2
36120386
|
$31.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHOCK SPRING 35N/MM - 130MM WH
93010217S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHOCK SPRING 30N/MM - 130MM WH
93010218S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHOCK SPRING 40N/MM - 130MM WH
93010219S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
compression cpl.
50181101S38
|
$109.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADJUSTING NUT CPL.
36120418S
|
$41.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
Top part cmpl.
36120858S2
|
$472.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-ring 27x1,5 Viton70 green ISO 3601-3S
50180217
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG SCREW M5X6 CPL.
36120151S
Superseded by 36120151ST
|
$4.83 | ||
|
Unavailable |
|||
|
#13
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Unavailable |
|||
|
#97
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$42.01 | ||
|
Available to order. Add to View Price |
|||
|
#98
REP. KIT MONOSHOCK MINI 17
RP10003
Superseded by RP10003T
|
$97.01 | ||
|
Unavailable |
|||
|
#99
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
