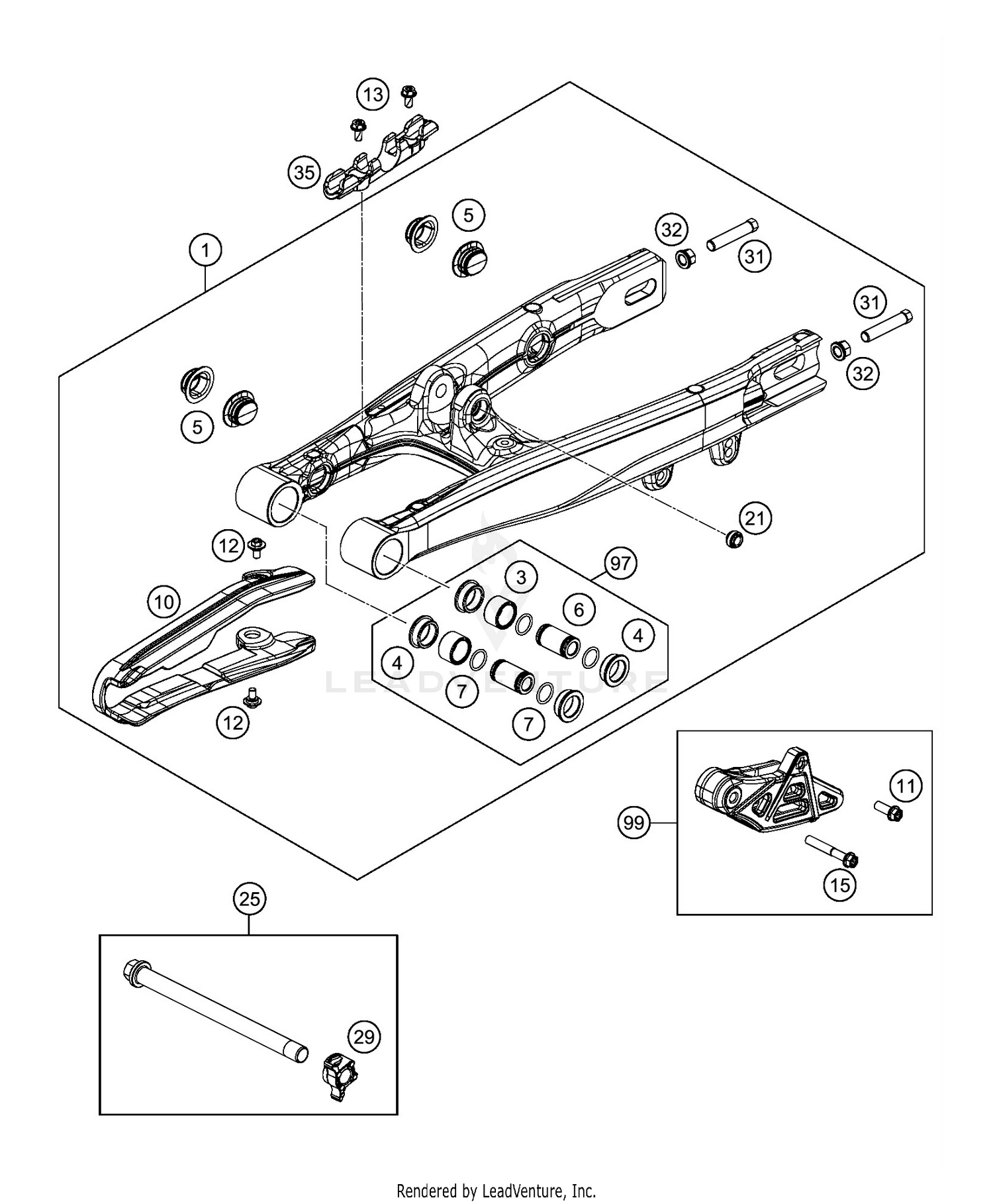

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Schwing arm cpl
45404030044
|
$497.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE BUSH HK 2016
54603097000
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER BUSHING 20X26X30X9,7
46004030070
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
Locking cap, swingarm
45404041000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING BOX 12X20X36,5
46004030071
|
$21.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING 16,00X2,00 VITON
0770160021
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
Chain sliding protection
45404066000
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH collar screw M6x16 TX30
0025060166
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
special screw M6x12x3
83008000012
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
EJOT SPIRAL SCREW SF M5X10-K
0009050106
|
$2.41 | ||
|
Unavailable |
|||
|
#15
HH collar screw M6x40 TX30
0025060406
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
Rivet nut M10
69004095000
Superseded by 69004095100
|
$6.15 | ||
|
Unavailable |
|||
|
#25
Swingarm pivot cmpl.
45404037033
|
|||
|
Unavailable |
|||
|
#29
Nut with anti-rotation lock
45404038000
|
$29.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
HH SCREW M8X40 WS=10
50203030090
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#32
flanged nut M8 WS10
46030045000
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRAKE HOSE GUIDE
47113047000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#97
Swing arm bearing repair kit
45204230010
Superseded by 45204230110
|
$77.43 | ||
|
Unavailable |
|||
|
#99
CHAIN GUIDE KIT REAR 2016
46307066010
|
$45.42 | ||
|
Available to order. Add to View Price |
|||
